Bookwalter Bariatric Retractor System

The Bookwalter Bariatric Retractor System is a table-mounted, self-retaining retractor system specifically configured for open bariatric surgery and procedures involving obese patients. This specialized configuration addresses the severe mechanical and spatial challenges of retracting thick abdominal walls. By using longer support posts, ratchet extenders, and extra-deep blades, it delivers steady, hands-free surgical exposure without placing physical stress on the surgical team.

By anchoring directly to the operating table rails, the bariatric system manages high abdominal wall pressures cleanly, transferring all forces safely away from the patient. We manufacture this complete high-BMI retractor set from premium, non-magnetic stainless steel at our dedicated facility in Pakistan, supplying medical device distributors, global importers, and hospital procurement departments directly.

What Is the Bookwalter Bariatric Retractor System?

The Bookwalter Bariatric Retractor System is a specialized, table-mounted, self-retaining retractor system configured specifically to handle high-BMI abdominal wall thickness. It differs from standard abdominal sets because every structural element is scaled up to operate in deep cavities.

At the core of this system is a longer 18-inch field post that provides the necessary vertical clearance above thick abdominal walls. Standard 12-inch posts often sit too low, causing the horizontal bar and ring frame to press against the patient’s skin. Additionally, this system utilizes specialized tilt ratchets, ratchet extenders, and extra-deep bariatric blades to reach the abdominal cavity floor, ensuring that the surgeon’s line of sight is never obstructed by overlying adipose tissue.

Why Use a Bariatric Retractor System?

Surgical retraction during open procedures on obese patients is physically demanding. Adipose tissue is heavy and fluid, meaning it easily flows back into the surgical field if not held back by broad, deep, and steady pressure.

• Adipose Tissue Adcontainment: Adipose tissue requires broad-faced blades (like deep Balfour or wide malleable strips) to prevent tissue from spilling around the blade margins into the incision.

• Mechanical Leverage: Standard handheld retractors require immense physical effort to hold steady against thick muscle walls, causing rapid assistant fatigue.

• Protecting Skin Integrity: A table-mounted system must sit high enough above the patient to avoid pressing against the high abdominal wall, preventing pressure injuries during long procedures.

This is an ideal system for hospitals that only occasionally perform open surgery on obese patients, providing the essential components needed for reliable surgical exposure without investing in multiple specialized retractor systems.

Complete Bariatric Kit Components and Specifications

Our factory supplies this complete bariatric kit with all the heavy-duty vertical bars, multi-jointed flex bars, and deep-access blades required for deep abdominal procedures.

How the Bariatric Retractor System Works

The structural and mechanical components of the bariatric set work together to manage high abdominal wall pressures cleanly:

1. 1. Extended Height foundation: The post coupler clamps to the side rail of the operating table. The 18-inch vertical field post inserts into the coupler, establishing a tall overhead support column that remains completely stable under heavy lateral muscle forces.

   2. Extended Horizontal Reach: The horizontal bar and flex bar connect to the vertical post, extending over the patient to allow precise positioning of the ring and blades. This bar is adjusted to center the oval medium ring directly over the bariatric incision.

   3. Adipose Containment Setup: Standard and tilt ratchets slide onto the ring borders. For patients with highly thick abdominal walls, the ratchet extender is attached to slide the ratchet further outward, keeping the frame joints away from the skin.

   4. Deep Cavity Exposure: The extra-deep 8-inch Kelly blade, sweetheart Harrington, and deep malleable blades are placed inside the abdominal cavity. Their flat shafts slot directly into the tilt ratchets.

   5. Multi-Angle Exposure: Using the tilt ratchets and twist ratchets, the surgeon can pitch the blades downward or laterally. This provides stable exposure and improved access throughout the procedure, keeping heavy fat layers retracted and protected.

Surgical Specialties and Clinical Applications

Our bariatric-configured systems are utilized globally across several high-exposure open specialties:

• Open Bariatric Surgery: Excellent for exploratory open laparotomies and gastric bypass revisions in high-BMI patients.

• General Surgery: Deployed regularly during open cholecystectomies, hernia repairs, and bowel resections on obese patients.

• Hepatobiliary Surgery: Provides steady, deep visual access to the liver, gallbladder, and pancreas beneath thick abdominal walls.

• Colorectal & Transplant Surgery: Used to isolate deep pelvic structures and keep abdominal tissues retracted safely during organ transplantations.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our bariatric retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that the vertical posts, horizontal bars, and specialized deep blades do not flex, bend, or slide under continuous physical tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The bariatric set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or joint wear over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single category.

• Direct Sourcing Efficiency: Sourcing directly from our factory in Pakistan lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Compatibility: We manufacture our bariatric posts, bars, oval rings, and blades to standard industry-recognized dimensions, ensuring they integrate with your existing hospital trays.

• Reliable Lead Times: Backed by a skilled workforce of over 50 employees, we maintain a highly reliable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter Bariatric Retractor System used for?

The Bookwalter Bariatric Retractor System is a table-mounted, self-retaining retractor designed to provide stable exposure during open bariatric surgeries and abdominal procedures on obese patients.

Why is the vertical field post longer in the bariatric set?

The bariatric set includes an 18-inch vertical field post, which provides the extra height clearance required to mount the ring frame levelly over patients with highly thick abdominal walls, preventing the frame from pressing against the skin.

Are bariatric blades compatible with standard Bookwalter abdominal systems?

Yes. Our bariatric blades feature standard flat slotted shafts, allowing them to be used with standard Bookwalter posts, horizontal flex bars, and sliding ratchets.

What is included in the Bookwalter Bariatric set?

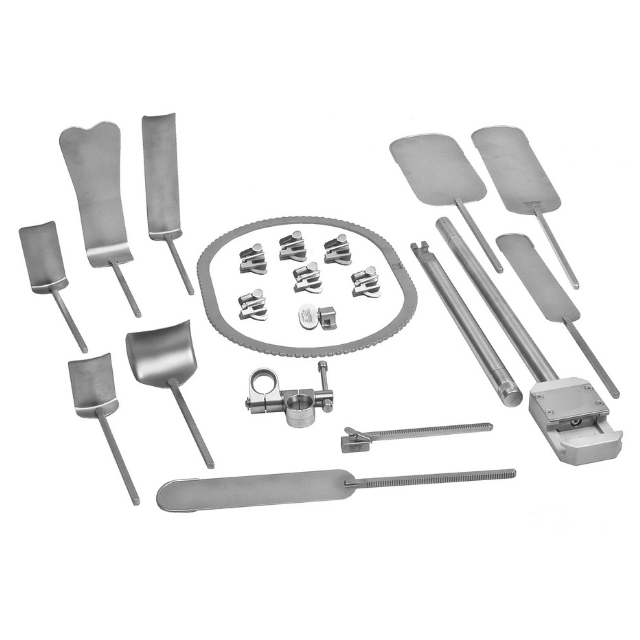

The complete set includes an 18″ vertical post, a post coupler, a horizontal bar, six tilt ratchets, a ratchet extender, a twist ratchet, an oval medium ring, three Kelly blades, a wide Balfour blade, four malleable blades, an 8″ Harrington sweetheart blade, and a customized storage container.

Is the entire bariatric system autoclavable?

Yes. All components are made of premium surgical stainless steel and are fully compatible with standard high-temperature gravity and pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement bariatric blades or ratchet extenders?

Yes. We supply individual bariatric components (including 8″ Kelly blades, ratchet extenders, and 18″ field posts) to help you replace missing items from existing hospital trays.

What is the purpose of the ratchet extender in this set?

The ratchet extender is used to slide the ratchet further outward from the ring frame, providing extra horizontal clearance over thick abdominal walls and keeping the frame joints away from the patient’s skin.

What is the average manufacturing lead time for a wholesale bariatric set order?

Our average factory production, inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all joint areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
