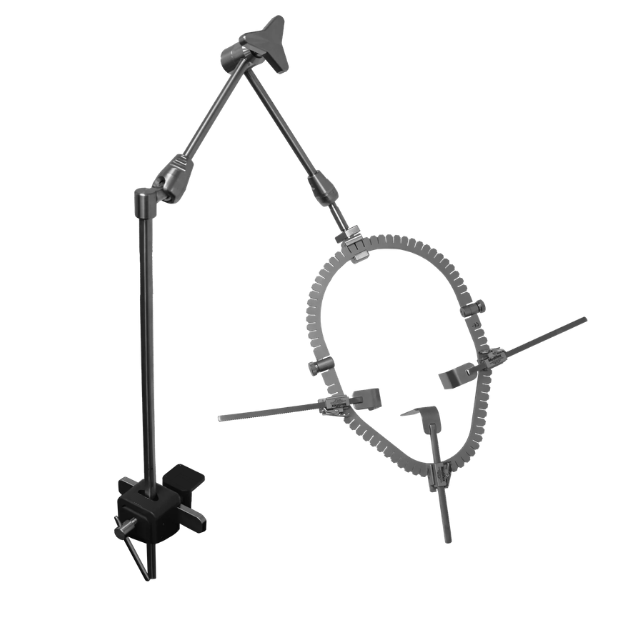

Bookwalter StrongArm GYN Surgery System

The Bookwalter StrongArm GYN Surgery System is a self-retaining retractor system specifically designed for gynecologic, pelvic, vaginal, and perineal procedures. While traditional table-anchored systems depend on a series of rigid right-angled rods that stand tall near the patient, this premium system incorporates an advanced, fully articulating arm system. This ensures that operating room teams can position the perimeter frame with fluid, multi-axis movement before locking the entire assembly rigidly into place.

By combining the Top Mount StrongArm Plus holder, a heavy-duty rail clamp, self-retaining tilt ratchets, a notched perineal ring, and specialized vaginal and Deaver blades, the system provides stable, hands-free exposure while improving surgical access and visibility. We manufacture this complete premium system from medical-grade, non-magnetic stainless steel at our specialized facility in Pakistan, supplying direct wholesale shipments to international hospital networks, medical distributors, and private-label OEM buyers globally.

What Is the Bookwalter StrongArm GYN Surgery System?

The Bookwalter StrongArm GYN Surgery System is an improved, articulating-arm exposure platform developed for deep vaginal vault access, advanced pelvic floor repairs, and extensive gynecologic oncology procedures. It represents an essential mechanical upgrade for operating rooms seeking maximum spatial ergonomics.

Rather than relying on a fixed-height field post that stands upright next to the wound, this system utilizes a multi-jointed mechanical positioner column. When the patient is placed in the lithotomy position, the positioner arm is adjusted to suspend the specialized notched perineal ring frame flatly over the pelvic outlet. This low-profile layout provides stable surgical exposure and an expanded positioning range while freeing up maximum working space around the operating table for the surgeon’s hands and instruments.

How the StrongArm GYN System Works

The Top Mount StrongArm Plus, rail clamp, tilt ratchets, perineal ring, and specialized vaginal and Deaver blades work together to provide stable, hands-free exposure while improving surgical access and visibility:

• • Single-Handle Unlock: Turning a single control handle on the StrongArm Plus column unlocks all its mechanical joints simultaneously. This allows the surgical team to adjust the height, tilt, and rotation of the attached perineal ring fluidly.

  • Hinged Frame Positioning: The specialized notched perineal ring is moved directly over the perineum. Its scalloped borders face upward, mapping perfectly around the surgical field. Locking the arm column turns the flexible arm into an absolute, immobile anchor boundary.

  • Rapid Blade Connection: Self-retaining tilt ratchets click directly onto the notched frame perimeter. Built-in ring retention technology prevents these components from slipping off the tracking loop due to gravity, keeping them secure and within the sterile zone.

  • Deep Pelvic Retraction: Narrow-profile vaginal lateral, posterior, and curved Deaver blades are inserted into the vaginal vault to separate tissue layers symmetrically. Their flat shafts slide into the ratchets.

  • Independent Angle Adjustment: Dials on the tilt ratchets allow surgeons to pitch each blade downward or laterally independently. This maintains consistent tissue retraction while reducing the need for manual assistance during surgery.

Complete StrongArm GYN Kit Components and Specifications

Our factory supplies this premium gynecological set with all the necessary articulating support arms, table clamps, notched ring tracks, and specialized pelvic blades required for immediate clinical setup.

Quantity	Component	Dimensions / Specifications	Material & Design Details
1	Top Mount StrongArm Plus with Rail Clamp	Extended articulation radius	Multi-axis jointed positioner column & high-torque table clamp block
4	Self-Retaining Tilt Ratchets	Low-profile style	Independent multi-angle adjustment frame clamps with retention locks
1	Perineal Ring with Notches	9½″ × 14½″ (24.1 × 36.8 cm)	Scalloped perimeter frame track; contours to the pelvic outlet
2	Vaginal Lateral Blades	1″ × 3″ (2.5 × 7.6 cm)	Thin, narrow-profile retractors for lateral vaginal wall access
1	Vaginal Posterior Blade	1″ × 4½″ (2.5 × 11.5 cm)	Extra-long, smooth blade for direct posterior wall separation
1	Deaver Blade	1″ × 3½″ (2.5 × 8.9 cm)	Curved, non-traumatic pelvic tissue and organ retractor
1	Deaver Blade	1″ × 5″ (2.5 × 12.7 cm)	Deep-reach curved pelvic tissue and organ retractor
1	Sterilization Box	Customized layout	Heavy-duty perforated organizer container tray

Surgical Specialties and Clinical Applications

Our specialized StrongArm GYN configurations are utilized globally across several open gynecological and urogynecological procedures:

• Vaginal Hysterectomy: Secures a stable, wide visual window to isolate, ligate, and dissect uterine ligaments cleanly.

• Pelvic Floor Reconstruction & Urogynecology: Maintains steady hands-free exposure during sacrocolpopexies, vaginal repairs, and extensive pelvic organ prolapse surgeries.

• Cystocele & Rectocele Repairs: Provides uniform lateral and posterior wall tension, simplifying anterior and posterior colporrhaphies.

• Perineal Reconstruction: Holds back surrounding soft tissue margins cleanly, allowing for detailed reconstructive suturing.

• Gynecologic Oncology Procedures: Allows deep pelvic blades to tilt downward, safely exposing retroperitoneal margins or deep pelvic masses.

System Advantages & Clinical Benefits

Choosing the premium articulating StrongArm configuration delivers several major operational and ergonomic advantages to modern surgical teams:

• Stable Surgical Exposure: Eliminates frame vibration or listing completely, keeping tissue fields perfectly immobilized during complex, multi-hour operations.

• Hands-Free Operation: Frees surgical assistants from holding manual blades, leaving the small workspace completely open and unobstructed for the surgeon.

• Adjustable Blade Positioning: Slide-on tilt ratchets rotate and tilt smoothly, allowing the team to adjust retraction lines instantly as the operation progresses.

• Improved Visualization: Shifting the support structure down the table rail opens up a clear lighting path for surgical headlamps and operating microscopes.

• Reduced Assistant Fatigue: Transfers heavy structural tissue loads to the table side rails, improving operating room efficiency.

• Surgical-Grade Stainless Steel Construction: Forged from premium reusable alloys, ensuring long-lasting performance and resistance to metal fatigue.

• Compatibility with Sterilization Standards: Fully compatible with standard hospital sterilization methods, including automated washing and high-temperature steam autoclaving.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every element of our StrongArm GYN retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-tensile alloy ensures that our multi-jointed positioner arm, locking gears, and flat blade shafts do not flex, slip, or strip under continuous physical tension. All components feature an anti-glare satin matte finish, which scatters light evenly to prevent eye strain under high-intensity operating room lamps.

Reprocessing and Sterilization Compatibility

The entire gynecology set is fully reusable and built to withstand standard hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C / 273∘F for 4 to 5 minutes), with no loss of ratchet gear precision or articulating joint lock hold over time.

Product Advantages vs. Limitations

Key StrongArm GYN Advantages	Practical Considerations
Infinite Articulating Control: Replaces rigid right-angled posts with a single multi-axis fluid positioner arm.	Joint Maintenance: Internal joint mechanisms must be carefully rinsed and lubricated during hospital reprocessing.
Low-Profile Design: Single column design eliminates bulky horizontal crossbars near the incision.	Component Tracking: The kit contains multiple small blades and ratchets that must be inventoried after use.
Turnkey Compatibility: Working rings and tilt ratchets fit all standard industry-recognized flat-slotted blades.	Tray Storage Footprint: The assembled articulating column requires specialized storage layout inside sterilization boxes.

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused status-exclusively on surgical retractors. We do not manufacture a broad catalog of general surgical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Sourcing Efficiency: Sourcing your retractor systems directly from our facility in Pakistan lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our ring paths, tilt ratchets, and blade slots are manufactured to meet standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital inventory.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees and strict quality control, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter StrongArm GYN Surgery System used for?

It is a premium table-mounted, self-retaining retractor system designed specifically to provide adjustable, hands-free exposure during complex vaginal, pelvic floor, and urogynecological reconstructive surgeries.

How does the StrongArm Plus mount improve upon traditional field posts?

The StrongArm Plus holder replaces traditional rigid, multi-bar post systems with a single multi-axis articulating arm. This allows the surgical team to adjust the height, tilt, and approach angle of the perineal ring frame seamlessly via a single control point.

Is this system compatible with standard Bookwalter rings?

Yes. The mounting attachment on the articulating arm features complete compatibility with existing standard Bookwalter and traditional ratchet-style rings, allowing hospitals to upgrade their mounting hardware while keeping their current frames.

What is included in this complete GYN surgery set?

The complete kit includes a Top Mount StrongArm Plus holder with an integrated table rail clamp, four self-retaining tilt ratchets, a notched perineal ring, two vaginal lateral blades, one vaginal posterior blade, two curved Deaver blades, and an organizer sterilization box.

Is the entire articulating arm column autoclavable?

Yes. The entire StrongArm Plus assembly is constructed from premium surgical-grade stainless steel and is fully compatible with standard hospital pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or separate StrongArm holders?

Yes. We supply individual components (including separate StrongArm holders, independent tilt ratchets, and individual vaginal blades) to help you replace missing or worn items from existing hospital trays.

What advantage does the notched perineal ring offer?

The scalloped notches around the perimeter of the perineal frame provide secure, slip-resistant anchor points for the tilt ratchets, ensuring they do not slide sideways under heavy lateral pull.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I maintain the articulating joints on the StrongArm holder?

Ensure your sterile processing department washes the column with neutral-pH enzymatic detergents, rinses thoroughly with demineralized water, and applies a water-soluble instrument lubricant to the joint hinges periodically to preserve smooth articulation.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
