Hoyos Retractor System

The Hoyos Retractor System is a specialized surgical retraction system designed to provide controlled surgical exposure during plastic surgery and body-contouring procedures. The system combines multiple specialized retractor blades with rigid support rods and a table-mounting framework to elevate and stabilize soft tissue margins without requiring continuous manual holding by surgical assistants.

Retractor Maker manufactures and supplies the Hoyos Retractor System for plastic surgery centers, hospitals, medical distributors, and OEM partners worldwide. By anchoring the framework to the operating table, the assembly supports steady visual access across selected body-contouring approaches.

What is the Hoyos Retractor System?

The Hoyos Retractor System is a frame-mounted surgical retractor assembly engineered specifically for plastic and reconstructive surgical suites. During body-contouring interventions, maintaining consistent soft tissue elevation is critical for clear visualization of target anatomical structures.

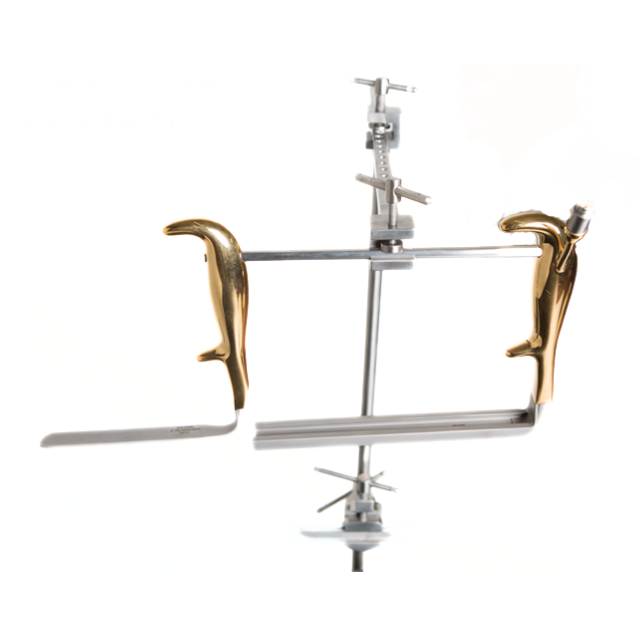

The system relies on a solid vertical post and horizontal crossbar anchored directly to the operating table rail via a heavy-duty table clamp. Attached to this bridge are specialized proximal and distal retractor blades, along with the Remora retractor. This multi-blade setup creates an unyielding overhead frame that holds tissue margins at exact vectors, helping reduce surgical assistant fatigue and minimize crowding at incision sites.

Uses and Applications

The Hoyos Retractor System is used to support surgical access and tissue retraction during plastic surgery procedures and advanced body-contouring techniques. In cosmetic and reconstructive surgery, establishing static surgical exposure allows the surgical team to maneuver instruments under direct vision while maintaining clear operative boundaries.

The system is associated with body-contouring approaches connected to the work of Dr. Alfredo Hoyos, a plastic surgeon from Bogotá, Colombia. Known for his background in sculpting and medical education, Dr. Hoyos is associated with the development of Hi-Def and 4D Liposculpture techniques and other body-contouring methodologies. Using a frame-mounted configuration allows surgeons to support tissue retraction across dedicated access points.

Clinical Application Example

The Hoyos Retractor System has been described for use in selected body-contouring approaches where proximal and distal access points are utilized to support surgical exposure.

In surgical descriptions of specific body-contouring approaches, the proximal retractor is positioned through existing Cesarean-section scars while the distal retractor enters through the umbilicus. This specific technique has been described to support surgical access with the intent of achieving a smaller scar profile and preservation of the umbilicus. Surgical access planning and incision selection depend on individual patient anatomy, procedure goals, and the surgeon’s clinical judgment and technique.

Key Features

• Specialized plastic surgery retraction system designed for body contouring

• Multiple proximal and distal retractor blade options (short and long profiles)

• Includes the Remora Retractor, designed to maintain traction and reduce tissue slippage

• Heavy-duty table clamp for rigid, table-mounted stability

• Interlocking support rod system for flexible positioning

• Horizontal extension bar and vertical post for overhead field clearance

• Designed to provide hands-free, controlled surgical exposure during body-contouring procedures

Components

Our factory supplies this specialized plastic surgery retractor set with all the mounting posts, support bars, and dedicated retractor blades required for body-contouring procedures:

Quantity	Component	Primary Role
1	Hoyos Distal Retractor Short	Short-length distal retraction blade option for access closer to incisions
1	Hoyos Distal Retractor Long	Long-length distal retraction blade option for deeper tissue reach
1	Hoyos Proximal Retractor Long	Long-length proximal retraction blade component for proximal boundary elevation
1	Remora Retractor	Specialized traction retractor blade designed to reduce slippage
1	Interlocking Support Rod	Connects retractor arms to the main overhead framework
1	Table Clamp for Hoyos Retractor System	Anchors the vertical post to the operating table rail
1	Hoyos Horizontal Extension Bar	Extends the framework horizontally over the surgical field
1	Hoyos Vertical Post	Primary vertical column supporting the mounting frame

Explanation of Specialized Components

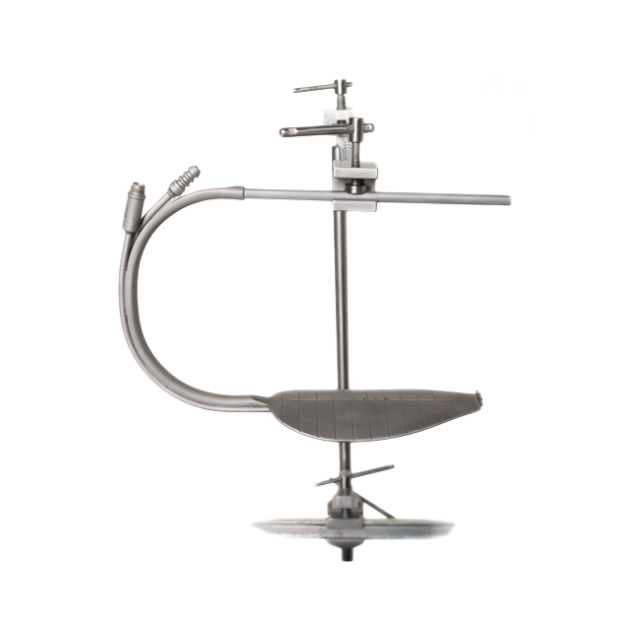

• Remora Retractor: The Remora Retractor takes its name from the Remora fish, which uses a natural suction mechanism to attach itself to larger marine animals. As background for the product’s name and design concept, the instrument is engineered to help maintain traction and reduce the tendency for slippage during tissue retraction.

• Proximal and Distal Blades: The system features both short and long distal retractors alongside a long proximal retractor, providing surgical teams with options to match the surgical access sites and anatomical depths of the patient.

• Table-Mounted Framework: The combination of the table clamp, vertical post, horizontal extension bar, and interlocking support rod creates a rigid overhead support bridge that anchors securely to the operating table.

General Setup and Assembly

Setting up the Hoyos Retractor System requires proper assembly by qualified operating room staff prior to procedure execution:

1. Mount the Table Clamp: Secure the table clamp firmly to the operating table side rail according to the surgical site layout.

2. Install the Vertical Post: Insert the Hoyos Vertical Post into the table clamp and tighten the locking handle.

3. Attach the Horizontal Extension Bar: Connect the horizontal extension bar to the vertical post, adjusting the height over the operative field.

4. Connect the Interlocking Support Rod: Mount the interlocking support rod to the extension bar to create the retractor attachment bridge.

5. Select and Mount Retractor Blades: Select the appropriate combination of proximal, distal (short or long), or Remora retractors and attach them to the support rod.

6. Position Retractors: Guide the retractor blades into the surgical access points and position them as directed by the operating surgeon.

7. Perform Security Check: Verify that all clamps, post dials, and rod connections are securely tightened before use.

Note: Assembly, positioning, and intraoperative adjustment must always be performed by trained healthcare professionals in accordance with hospital protocols and applicable manufacturer instructions.

Manufacturer Information

Retractor Maker is an established surgical retractor manufacturer focused on producing high-precision retractor platforms:

• Specialized Focus: Established in 2023, our manufacturing facility in Pakistan focuses specifically on surgical retractor systems rather than general medical tools.

• Skilled Workforce: Our plant operates with a dedicated workforce of over 50 skilled instrument technicians and engineers.

• Global Footprint: We have supplied surgical instruments to over 500 satisfied healthcare partners, procurement boards, and distributors worldwide.

• Reliable Manufacturing Timelines: We maintain an average factory production and dispatch lead time of 12 to 16 days for wholesale orders.

• Comprehensive Supply Options: We serve plastic surgery centers, hospitals, regional equipment distributors, medical importers, and OEM brand partners.

Frequently Asked Questions (FAQs)

What is the Hoyos Retractor System?

The Hoyos Retractor System is a specialized table-mounted surgical retractor system designed to provide controlled surgical exposure during plastic surgery and body-contouring procedures.

What is the Hoyos Retractor used for?

It is used to hold and stabilize soft tissue open during plastic surgery and body-shaping techniques, providing hands-free visual access for the surgical team.

Who is Dr. Alfredo Hoyos?

Dr. Alfredo Hoyos is a plastic surgeon from Bogotá, Colombia, known for his medical education, sculpting background, and association with the development of Hi-Def and 4D Liposculpture techniques.

What components are included in the Hoyos Retractor System?

The set includes 1 short distal retractor, 1 long distal retractor, 1 long proximal retractor, 1 Remora retractor, 1 interlocking support rod, 1 table clamp, 1 horizontal extension bar, and 1 vertical post.

What is the design concept behind the Remora Retractor?

The Remora Retractor takes its name from the Remora fish, which uses suction to attach to marine animals. The instrument is designed to help maintain traction and reduce the tendency for tissue slippage during retraction.

What are the Hoyos distal retractors?

They are distal retraction blades supplied in short and long variations to support tissue elevation at distal surgical access sites based on depth requirements.

How is the Hoyos Retractor System positioned in Cesarean-section scar approaches?

In described body-contouring applications, the proximal retractor enters through existing Cesarean-section scars while the distal retractor enters through the umbilicus to support surgical exposure.

Is the Hoyos Retractor System reusable and autoclavable?

Yes. The entire system is forged from durable surgical-grade metal alloys and stainless steel, making it fully reusable and autoclavable using standard hospital sterilization protocols.

Does Retractor Maker supply OEM manufacturing for plastic surgery retractors?

Yes. Retractor Maker provides OEM manufacturing, private-label branding, and custom packaging solutions for medical device distributors worldwide.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.
