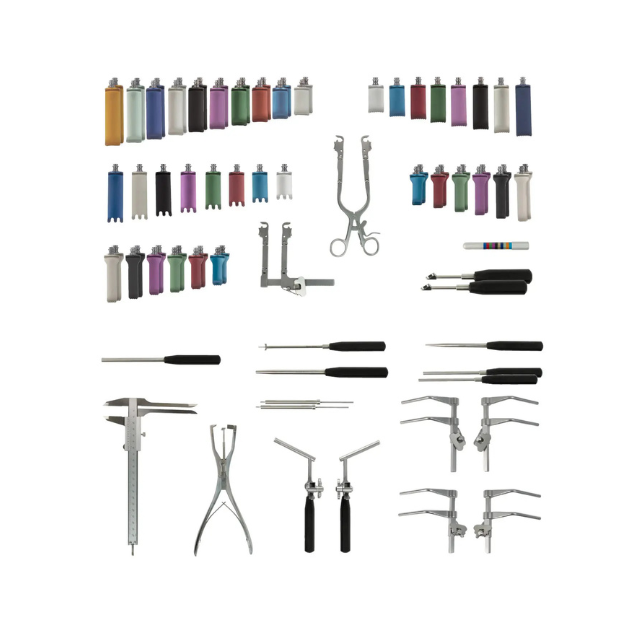

Image-Line ACF Retractor With Distraction Classic Set

The Image-Line ACF Retractor With Distraction Classic Set is a specialized surgical instrumentation platform engineered to support surgical field exposure, intervertebral body distraction, and graft preparation during anterior cervical procedures. Combining dual structural frames with silicone-grip twist lock handles, an extensive array of color-coded and micro retractor blades, dual-rack distractors, and dedicated bone-grafting tools, this system provides operating teams with a stable, comprehensive platform over the surgical site.

Retractor Maker manufactures and supplies the Image-Line ACF Retractor With Distraction Classic Set to hospital procurement departments, neurosurgical and spine centers, medical equipment distributors, healthcare importers, and OEM partners globally. Supplied as a complete set inside a heavy-duty sterilization box, this platform delivers structured component configuration for specialized cervical spine access.

What Is the Image-Line ACF Retractor With Distraction Classic Set?

The Image-Line ACF Retractor With Distraction Classic Set is a comprehensive retractor and distraction system engineered to maintain static field exposure and precise vertebral separation during anterior cervical spine operations. Establishing clear physical and visual access to deep anatomical corridors requires rigid frame support, varied blade geometries, and stable distraction mechanics that maintain position without crowding the surgical field.

The foundation of the system rests on the Longitudinal Frame and Transverse Frame, which are manipulated and locked using two Silicone Grip Twist Lock Handles. A color-coded Depth Gauge provides rapid intraoperative depth assessment. Attached to these frames is an extensive selection of color-coded blunt, short-teeth, long-teeth, and micro blades to hold soft tissue securely.

For intervertebral body management, the set incorporates specialized Left and Right Vertebral Body Distractors (100 mm rack) and Left and Right Multilevel Distractors (120 mm rack with 90 mm extension), complemented by CVB drill guides, twist drills, and silicone-handled screwdrivers. A complete suite of bone graft preparation tools—including a holder, three impactor sizes, a graft cutter, and an ACF caliper—completes the hardware framework.

Image-Line ACF Retractor With Distraction Classic Set Components

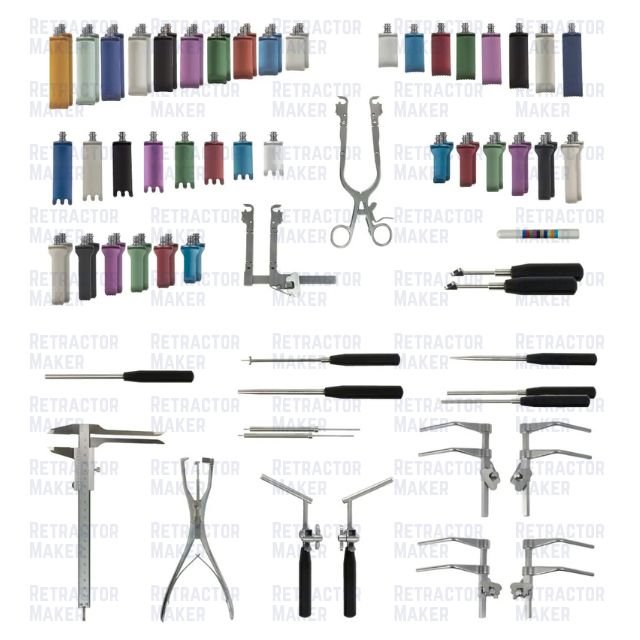

The Image-Line ACF Retractor With Distraction Classic Set is supplied as a complete set containing the following structural frames, handles, color-coded blades, distraction units, grafting tools, and containment hardware:

Quantity	Component	Dimensions / Key Notes
1	Depth Gauge	Color-coded
2	Twist Lock Handle	Silicone Grip
1	Longitudinal Frame	—
1	Transverse Frame	—
2	Blunt Blade	30 mm, silver
2	Blunt Blade	35 mm, blue
2	Blunt Blade	40 mm, red
2	Blunt Blade	55 mm, black
2	Blunt Blade	60 mm, gold
2	Blunt Blade	65 mm, navy
2	Blunt Blade	70 mm, light green
2	Blunt Blade	75 mm, orange
1	Short Teeth Blade	30 mm, silver
1	Short Teeth Blade	35 mm, blue
1	Short Teeth Blade	40 mm, red
1	Short Teeth Blade	45 mm, green
1	Short Teeth Blade	50 mm, violet
1	Short Teeth Blade	55 mm, black
1	Short Teeth Blade	60 mm, gold
1	Short Teeth Blade	65 mm, navy
1	Long Teeth Blade	30 mm, silver
1	Long Teeth Blade	35 mm, blue
1	Long Teeth Blade	40 mm, red
1	Long Teeth Blade	45 mm, green
1	Long Teeth Blade	50 mm, violet
1	Long Teeth Blade	55 mm, black
1	Long Teeth Blade	60 mm, gold
1	Long Teeth Blade	65 mm, navy
2	Micro Blade, Blunt	14 × 35 mm, blue
2	Micro Blade, Blunt	14 × 40 mm, red
2	Micro Blade, Blunt	14 × 45 mm, green
2	Micro Blade, Blunt	14 × 50 mm, violet
2	Micro Blade, Blunt	14 × 55 mm, black
2	Micro Blade, Blunt	14 × 60 mm, gold
2	Micro Blade, Short Teeth	14 × 35 mm
2	Micro Blade, Short Teeth	14 × 40 mm
2	Micro Blade, Short Teeth	14 × 45 mm
2	Micro Blade, Short Teeth	14 × 50 mm
2	Micro Blade, Short Teeth	14 × 55 mm
2	Micro Blade, Short Teeth	14 × 60 mm
2	CVB Twist Drill	8 mm depth, 5¾″ length
1	CVB Distractor Drill Guide	Left
1	CVB Distractor Drill Guide	Right
1	Vertebral Body Distractor	Left, 100 mm rack
1	Vertebral Body Distractor	Right, 100 mm rack
2	CVB Screw Driver	Silicone Handle
1	Multilevel Distractor	Left, 120 mm rack, 90 mm extension
1	Multilevel Distractor	Right, 120 mm rack, 90 mm extension
1	Bone Graft Holder	8 × 15 mm tip, 210 mm length
1	Bone Graft Impactor	3 mm
1	Bone Graft Impactor	5 mm
1	Bone Graft Impactor	8 mm
1	Graft Cutter	Adjustable depth 8.75″, 7 mm width
1	ACF Caliper	9″
1	Sterilization Box	—

Frame and Mounting Components

The structural framework of the Image-Line ACF Retractor With Distraction Classic Set relies on six primary positioning and frame elements:

Longitudinal Frame

Functions as the primary structural retractor frame oriented along the longitudinal axis of the surgical approach.

Transverse Frame

Functions as the cross-axis frame assembly, providing transverse soft tissue retraction across the operative field.

Twist Lock Handles (Silicone Grip)

The set includes two ergonomic silicone-grip handles that connect to the retractor frames for precise manual manipulation and fast twist-locking of blade arms.

Color-Coded Depth Gauge

Serves as an intraoperative measurement gauge to rapidly assess tissue depth from skin level to the vertebral body prior to blade selection.

Retractor Blade Options

The set includes 56 retractor blades spanning standard and micro widths, color-coded depths, and three tip profiles to match different anatomical requirements:

Blunt Blades (Standard)

• 30 mm to 75 mm (Pairs across 8 depth sizes)

Featuring smooth distal profiles and distinct color coding (silver, blue, red, black, gold, navy, light green, orange), these blades provide stable tissue retention without sharp edge contact.

Short Teeth Blades

• 30 mm to 65 mm (8 depth sizes)

Color-coded short-teeth blades designed to engage muscle and fascia along shallow-to-intermediate anatomical depths.

Long Teeth Blades

• 30 mm to 65 mm (8 depth sizes)

Color-coded long-teeth blades featuring extended distal engagement points to secure firm placement against tissue boundaries across deeper corridors.

Micro Blades (Blunt & Short Teeth)

• 14 mm Width × 35 mm to 60 mm Lengths (24 total micro blades)

Slender 14 mm width blades supplied in both blunt (color-coded) and short-teeth designs for targeted retraction in narrow or space-restricted surgical corridors.

Distraction and Bone Grafting Suite

The system incorporates a complete instrumentation module for interbody distraction, measurement, and graft placement:

Vertebral Body & Multilevel Distractors

Includes Left and Right Vertebral Body Distractors (100 mm rack) for single-level distraction, and Left and Right Multilevel Distractors featuring a 120 mm rack with a 90 mm extension for multi-level vertebral distraction.

CVB Drill & Drive Line

Equipped with Left and Right CVB Drill Guides, two 8 mm depth CVB Twist Drills (5¾″ length), and two silicone-handled CVB Screwdrivers for distraction pin placement.

Bone Grafting & Measurement Suite

Includes a 210 mm Bone Graft Holder (8 × 15 mm tip), three Bone Graft Impactors (3 mm, 5 mm, 8 mm), an adjustable Graft Cutter (8.75″ length, 7 mm width), and a 9″ ACF Caliper for intraoperative measurement.

What Is the Image-Line ACF Retractor With Distraction Classic Set Used For?

The Image-Line ACF Retractor With Distraction Classic Set is engineered to provide self-retaining retraction, vertebral body distraction, and bone graft handling during anterior cervical spinal procedures.

Key functional aspects of the system include:

• Dual-Frame Architecture: Longitudinal and transverse frame options permit two-way or four-way surgical field exposure tailored to the cervical approach.

• Color-Coded Depth Sizing: Matched color coding across depth gauges and blade groups simplifies size selection and scrub nurse instrument passing.

• Dual Distraction Capabilities: Includes both 100 mm rack single-level distractors and 120 mm rack (with 90 mm extension) multi-level distractors.

• Integrated Graft Processing: Complete suite of measurement calipers, cutters, holders, and impactors contained within the main set.

• Organized Complete Set: All 56 blades, frames, handles, distractors, drills, guides, grafting tools, and sterilization box are supplied as a single, organized system.

Why Does the System Include Multiple Blade and Distractor Types?

Surgical teams encounter varying patient anatomical depths, muscular density, and spatial constraints during anterior cervical procedures. Supplying a complete range of blade geometries, micro options, and distractors within one set provides clinical teams with the necessary component options to adapt their setup:

• Standard vs. Micro Widths: Standard blades manage broader muscle walls, while 14 mm Micro Blades allow access in confined pathways without crowding.

• Blunt vs. Toothed Profiles: Smooth blunt blades protect delicate soft tissue boundaries, whereas short and long teeth engage fibrous structures to prevent slippage.

• Single vs. Multi-Level Distraction: 100 mm rack distractors handle localized single-level disc spaces, while 120 mm rack distractors with 90 mm extensions accommodate multi-level spinal constructs.

How the Image-Line ACF Retractor With Distraction Classic Set Is Configured

System setup and component assembly follow a standard structural sequence prior to intraoperative use:

1. Depth Assessment: Use the color-coded Depth Gauge to measure tissue depth at the operative site.

2. Frame Selection: Select the Longitudinal Frame or Transverse Frame based on the required access axis.

3. Blade Assembly: Choose the appropriate blade style (Blunt, Short Teeth, Long Teeth, or Micro) and depth, then attach the blades to the frame arms using the Silicone Grip Twist Lock Handles.

4. Frame Placement: Position the retractor framework over the operative site and adjust hand pressure on the handles to establish field exposure.

5. Distractor Preparation: When interbody distraction is required, place the Left or Right CVB Drill Guide, drill pilot holes using the 8 mm depth CVB Twist Drill, insert pins with the silicone-handled screwdrivers, and mount the Left/Right Vertebral Body or Multilevel Distractors.

6. Graft Measurement & Placement: Measure the gap using the 9″ ACF Caliper, trim graft material with the Graft Cutter, and position/seat the graft using the Bone Graft Holder and 3 mm, 5 mm, or 8 mm Impactors.

7. Pre-Use Verification: Check that all twist-lock handles, frame joints, distractor racks, and drill guides are securely fastened prior to proceeding.

Assembly and use should be performed by trained healthcare professionals according to the manufacturer’s instructions, hospital protocols, and the requirements of the surgical procedure.

Key Features

• Complete ACF retractor and distraction system configured for anterior cervical spine exposure

• Dual longitudinal and transverse structural frame foundation

• Two silicone-grip twist lock handles for fast, secure blade attachment

• Color-coded depth gauge for rapid intraoperative size matching

• 56 total retractor blades across 5 distinct blade categories

• Color-coded Blunt Blades from 30 mm to 75 mm depths

• Short Teeth and Long Teeth Blades from 30 mm to 65 mm depths

• 24 Micro Blades (14 mm width) in blunt and short-teeth configurations

• Left and Right Vertebral Body Distractors (100 mm rack)

• Left and Right Multilevel Distractors (120 mm rack with 90 mm extension)

• Complete CVB drill guides, 8 mm depth twist drills, and screwdrivers

• Integrated bone graft holder, 3 impactor sizes, graft cutter, and 9″ caliper

• Heavy-duty sterilization box included for complete set containment

Complete Set Overview

The Image-Line ACF Retractor With Distraction Classic Set is delivered as a 73-piece unified system (plus sterilization box). By combining longitudinal and transverse frames, twist lock handles, 56 specialized retractor blades, single- and multi-level distractors, drill guides, drivers, and a full bone-grafting suite, this set equips healthcare facilities with a complete component package for anterior cervical surgery in one organized kit.

Why Choose Retractor Maker?

Retractor Maker is a specialized manufacturer and global supplier focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Our facility in Sialkot, Pakistan dedicates its production lines exclusively to precision surgical retractor platforms.

• Precision Engineering: Engineered using strict quality controls to maintain accurate dimensional tolerances and dependable mechanical locking.

• Global B2B Supply: Supplying healthcare networks, spine surgery centers, medical equipment importers, and distributors globally.

• Export Fulfillment: Maintaining dependable production schedules and streamlined international order dispatch for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Image-Line ACF Retractor With Distraction Classic Set?

It is a complete anterior cervical surgical system featuring retractor frames, twist lock handles, 56 color-coded and micro blades, single- and multi-level distractors, drill guides, bone graft tools, and a sterilization box.

What is the system used for?

It is used to establish and maintain soft tissue retraction, intervertebral body distraction, and bone graft placement during anterior cervical spinal procedures.

What components are included in the complete system?

The set includes 2 Frames, 2 Twist Lock Handles, 1 Depth Gauge, 16 Blunt Blades, 8 Short Teeth Blades, 8 Long Teeth Blades, 24 Micro Blades, 2 Twist Drills, 2 Drill Guides, 2 Vertebral Body Distractors, 2 Multilevel Distractors, 2 Screwdrivers, 1 Graft Holder, 3 Impactors, 1 Graft Cutter, 1 Caliper, and 1 Sterilization Box.

What blunt blade sizes are included?

The system includes pairs of blunt blades in 30 mm, 35 mm, 40 mm, 55 mm, 60 mm, 65 mm, 70 mm, and 75 mm depths, each color-coded for size identification.

What short-teeth and long-teeth blade sizes are included?

Both short-teeth and long-teeth categories include individual blades in 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, and 65 mm depths.

What micro blades are included in the set?

The set contains 24 Micro Blades (14 mm width) across 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, and 60 mm lengths in both blunt and short-teeth styles.

What distraction units are included?

The set includes Left and Right Vertebral Body Distractors (100 mm rack) for single-level use, and Left and Right Multilevel Distractors (120 mm rack with 90 mm extension) for multi-level procedures.

What bone graft instruments are supplied?

The set supplies a Bone Graft Holder (8 × 15 mm tip, 210 mm length), 3 Graft Impactors (3 mm, 5 mm, 8 mm), an adjustable Graft Cutter (8.75″ length, 7 mm width), and a 9″ ACF Caliper.

Does the system include a sterilization box?

Yes. The complete system is supplied inside a heavy-duty Sterilization Box for organized storage, transport, and hospital reprocessing.

Who is the system intended for?

It is intended for use by trained healthcare professionals, spine surgeons, neurosurgeons, and surgical teams in hospitals and clinical facilities.

How can I request a quotation?

Hospitals, medical device distributors, procurement departments, and OEM buyers can request direct pricing and availability by contacting Retractor Maker through our website.
