Image-Line ACF Retractor With Distraction Quick Release Set

The Image-Line ACF Retractor With Distraction Quick Release Set is a specialized surgical instrumentation platform engineered to support soft tissue retraction, intervertebral body distraction, and bone graft placement during anterior cervical spinal procedures. Integrating quick-release frame architectures with spring-loaded handles, an extensive selection of color-coded and micro retractor blades, dual-rack distractors, and dedicated bone-grafting tools, this system provides operating teams with a stable, comprehensive platform over the surgical site.

Retractor Maker manufactures and supplies the Image-Line ACF Retractor With Distraction Quick Release Set directly to hospital procurement departments, specialty spine centers, neurosurgical and orthopedic suites, healthcare distributors, and OEM partners globally. Delivered as a unified system inside a heavy-duty sterilization box, this platform provides structured component organization for clinical workflows.

What Is the Image-Line ACF Retractor With Distraction Quick Release Set?

The Image-Line ACF Retractor With Distraction Quick Release Set is a comprehensive retractor and distraction system engineered to maintain static field exposure and precise vertebral separation during anterior cervical spine operations. Establishing clear physical and visual access to deep anatomical corridors requires rigid frame support, varied blade geometries, and stable distraction mechanics that maintain position without crowding the surgical field.

The foundation of the system rests on two spring-loaded handles operating in conjunction with four retractor frames: standard Longitudinal, Panther Coated Longitudinal, standard Transverse, and Panther Ceramic Transverse. A color-coded Depth Gauge provides rapid intraoperative depth assessment. Attached to these frames is an extensive selection of color-coded blunt, short-teeth, long-teeth, and micro blades to hold soft tissue securely.

For intervertebral body management, the set incorporates specialized Left and Right Vertebral Body Distractors (100 mm rack) and Left and Right Multilevel Distractors (120 mm rack with 90 mm extension), complemented by CVB drill guides, a twist drill, and silicone-handled screwdrivers. A complete suite of bone graft preparation tools—including a holder, three impactor sizes, a graft cutter, and an ACF caliper—completes the hardware framework.

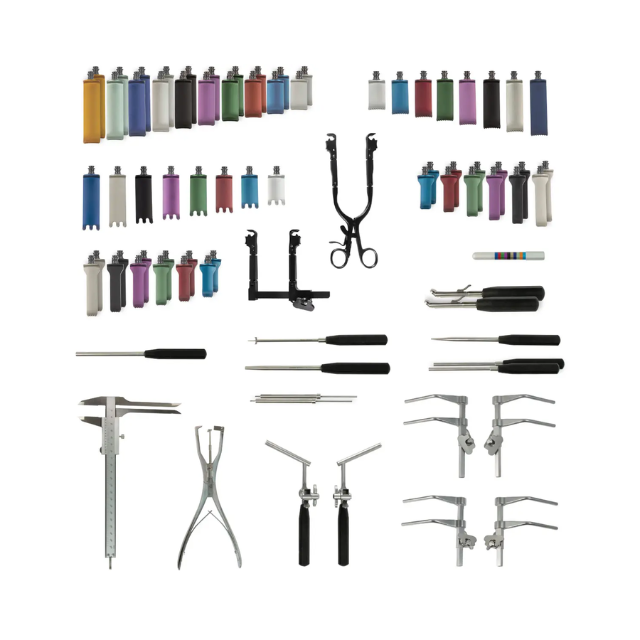

Image-Line ACF Retractor System Overview

The Image-Line system incorporates specialized structural frame options and quick-release attachment mechanisms designed to streamline component positioning during surgery:

Depth Gauge

A color-coded measuring gauge used to assess tissue depth from skin level to the target vertebral body prior to blade selection.

Spring-Loaded Handles

The set includes two spring-loaded handles engineered for rapid blade insertion and quick-release detachment from the frame arms.

Longitudinal Frames

Includes one standard Longitudinal Frame and one Panther Coated Longitudinal Frame, providing the primary structural axis along the cervical approach.

Transverse Frames

Includes one standard Transverse Frame and one Panther Ceramic Transverse Frame, providing cross-axis structure for multi-directional field retraction.

Blade Options

The system features 56 retractor blades categorized across standard and micro widths, color-coded depths, and three tip profiles:

Blunt Blades

Supplied in pairs across ten depth increments with distinctive color coding:

• 30 mm — Silver (Quantity: 2)

• 35 mm — Blue (Quantity: 2)

• 40 mm — Red (Quantity: 2)

• 45 mm — Green (Quantity: 2)

• 50 mm — Violet (Quantity: 2)

• 55 mm — Black (Quantity: 2)

• 60 mm — Gold (Quantity: 2)

• 65 mm — Navy (Quantity: 2)

• 70 mm — Light Green (Quantity: 2)

• 75 mm — Orange (Quantity: 2)

Short Teeth Blades

Supplied individually across eight depth increments with corresponding color identification:

• 30 mm — Silver (Quantity: 1)

• 35 mm — Blue (Quantity: 1)

• 40 mm — Red (Quantity: 1)

• 45 mm — Green (Quantity: 1)

• 50 mm — Violet (Quantity: 1)

• 55 mm — Black (Quantity: 1)

• 60 mm — Gold (Quantity: 1)

• 65 mm — Navy (Quantity: 1)

Long Teeth Blades

Supplied individually across eight depth increments matching the short-teeth depth sequence:

• 30 mm — Silver (Quantity: 1)

• 35 mm — Blue (Quantity: 1)

• 40 mm — Red (Quantity: 1)

• 45 mm — Green (Quantity: 1)

• 50 mm — Violet (Quantity: 1)

• 55 mm — Black (Quantity: 1)

• 60 mm — Gold (Quantity: 1)

• 65 mm — Navy (Quantity: 1)

Micro Blades — Blunt

Features a compact 14 mm blade width with color-coded depth sizes supplied in pairs:

• 14 × 35 mm — Blue (Quantity: 2)

• 14 × 40 mm — Red (Quantity: 2)

• 14 × 45 mm — Green (Quantity: 2)

• 14 × 50 mm — Violet (Quantity: 2)

• 14 × 55 mm — Black (Quantity: 2)

• 14 × 60 mm — Gold (Quantity: 2)

Micro Blades — Short Teeth

Features a compact 14 mm blade width with distal short teeth supplied in pairs across six length increments:

• 14 × 35 mm (Quantity: 2)

• 14 × 40 mm (Quantity: 2)

• 14 × 45 mm (Quantity: 2)

• 14 × 50 mm (Quantity: 2)

• 14 × 55 mm (Quantity: 2)

• 14 × 60 mm (Quantity: 2)

Distraction Components

The set incorporates a dedicated module of distraction hardware engineered to facilitate controlled intervertebral body separation:

• CVB Twist Drill: 8 mm depth stop, 5¾″ length (Quantity: 1)

• CVB Distractor Drill Guide — Left: Directional guide for pilot hole preparation (Quantity: 1)

• CVB Distractor Drill Guide — Right: Directional guide for pilot hole preparation (Quantity: 1)

• Vertebral Body Distractor — Left: Features a 100 mm rack mechanism for single-level distraction (Quantity: 1)

• Vertebral Body Distractor — Right: Features a 100 mm rack mechanism for single-level distraction (Quantity: 1)

• CVB Screw Drivers: Ergonomic silicone-handled screwdrivers for inserting and adjusting distraction pins (Quantity: 2)

• Multilevel Distractor — Left: Features a 120 mm rack with a 90 mm extension mechanism for multi-level distraction (Quantity: 1)

• Multilevel Distractor — Right: Features a 120 mm rack with a 90 mm extension mechanism for multi-level distraction (Quantity: 1)

Bone Graft and Measurement Instruments

Dedicated instrumentation supports intraoperative gap measurement, graft shaping, and seating:

• Bone Graft Holder: 8 × 15 mm tip profile, 210 mm overall length (Quantity: 1)

• Bone Graft Impactor — 3 mm: 3 mm tip diameter for controlled seating (Quantity: 1)

• Bone Graft Impactor — 5 mm: 5 mm tip diameter for controlled seating (Quantity: 1)

• Bone Graft Impactor — 8 mm: 8 mm tip diameter for controlled seating (Quantity: 1)

• Graft Cutter: Adjustable depth mechanism up to 8.75″, 7 mm cutter width (Quantity: 1)

• ACF Caliper: 9″ measuring caliper for intervertebral space assessment (Quantity: 1)

What Is Included in the Set?

The Image-Line ACF Retractor With Distraction Quick Release Set contains the following hardware items:

Quantity	Component	Dimensions / Details
1	Depth Gauge	Color-coded
2	Spring-loaded Handle	—
1	Longitudinal Frame	—
1	Longitudinal Frame (Panther Coated)	—
1	Transverse Frame	—
1	Transverse Frame (Panther Ceramic)	—
2	Blunt Blade	30 mm, silver
2	Blunt Blade	35 mm, blue
2	Blunt Blade	40 mm, red
2	Blunt Blade	45 mm, green
2	Blunt Blade	50 mm, violet
2	Blunt Blade	55 mm, black
2	Blunt Blade	60 mm, gold
2	Blunt Blade	65 mm, navy
2	Blunt Blade	70 mm, light green
2	Blunt Blade	75 mm, orange
1	Blade, Short Teeth	30 mm, silver
1	Blade, Short Teeth	35 mm, blue
1	Blade, Short Teeth	40 mm, red
1	Blade, Short Teeth	45 mm, green
1	Blade, Short Teeth	50 mm, violet
1	Blade, Short Teeth	55 mm, black
1	Blade, Short Teeth	60 mm, gold
1	Blade, Short Teeth	65 mm, navy
1	Blade, Long Teeth	30 mm, silver
1	Blade, Long Teeth	35 mm, blue
1	Blade, Long Teeth	40 mm, red
1	Blade, Long Teeth	45 mm, green
1	Blade, Long Teeth	50 mm, violet
1	Blade, Long Teeth	55 mm, black
1	Blade, Long Teeth	60 mm, gold
1	Blade, Long Teeth	65 mm, navy
2	Micro Blade, Blunt	14 × 35 mm, blue
2	Micro Blade, Blunt	14 × 40 mm, red
2	Micro Blade, Blunt	14 × 45 mm, green
2	Micro Blade, Blunt	14 × 50 mm, violet
2	Micro Blade, Blunt	14 × 55 mm, black
2	Micro Blade, Blunt	14 × 60 mm, gold
2	Micro Blade, Short Teeth	14 × 35 mm
2	Micro Blade, Short Teeth	14 × 40 mm
2	Micro Blade, Short Teeth	14 × 45 mm
2	Micro Blade, Short Teeth	14 × 50 mm
2	Micro Blade, Short Teeth	14 × 55 mm
2	Micro Blade, Short Teeth	14 × 60 mm
1	CVB Twist Drill	8 mm depth, 5¾″ length
1	CVB Distractor Drill Guide, Left	—
1	CVB Distractor Drill Guide, Right	—
1	Vertebral Body Distractor, Left	100 mm rack
1	Vertebral Body Distractor, Right	100 mm rack
2	CVB Screw Driver, Silicone Handle	—
1	Multilevel Distractor, Left	120 mm rack, 90 mm extension
1	Multilevel Distractor, Right	120 mm rack, 90 mm extension
1	Bone Graft Holder	8 × 15 mm tip, 210 mm length
1	Bone Graft Impactor	3 mm
1	Bone Graft Impactor	5 mm
1	Bone Graft Impactor	8 mm
1	Graft Cutter	Adjustable depth 8.75″, 7 mm width
1	ACF Caliper	9″
1	Sterilization Box	—

Key Features

• Four frame configurations including standard Longitudinal, Panther Coated Longitudinal, standard Transverse, and Panther Ceramic Transverse options

• Two spring-loaded handles for quick blade mounting and detachment

• Color-coded depth gauge for rapid intraoperative depth assessment

• 56 total retractor blades across 5 distinct blade categories

• Blunt Blades ranging from 30 mm to 75 mm in pairs with color identification

• Short Teeth and Long Teeth Blades ranging from 30 mm to 65 mm depths

• 24 Micro Blades (14 mm width) in blunt and short-teeth configurations

• Left and Right Vertebral Body Distractors with 100 mm racks

• Left and Right Multilevel Distractors with 120 mm racks and 90 mm extensions

• CVB distraction driver suite including Left/Right drill guides, 8 mm depth twist drill, and silicone-handled drivers

• Integrated bone-grafting suite including holder, 3 impactor sizes, cutter, and 9″ caliper

• Heavy-duty sterilization box included for complete component organization

General Assembly / Setup

System setup follows a standard mechanical assembly sequence prior to clinical use:

1. Depth Measurement: Use the color-coded Depth Gauge to measure tissue depth at the target site.

2. Frame Selection: Select the appropriate longitudinal or transverse frame configuration (standard, Panther Coated, or Panther Ceramic).

3. Blade Engagement: Choose the required blade style (Blunt, Short Teeth, Long Teeth, or Micro) and depth size, then connect the blades to the frame arms using the spring-loaded handles.

4. Positioning: Position the retractor framework over the operative corridor to establish soft tissue exposure.

5. Distractor Preparation: When interbody distraction is required, place the Left or Right CVB Drill Guide, drill pilot holes using the 8 mm depth CVB Twist Drill, insert distraction screws using the silicone-handled drivers, and attach the Left/Right Vertebral Body or Multilevel Distractors.

6. Graft Preparation & Placement: Measure intervertebral spacing using the 9″ ACF Caliper, trim graft material with the Graft Cutter, and position/seat the graft using the Bone Graft Holder and 3 mm, 5 mm, or 8 mm Impactors.

7. Pre-Use Inspection: Check that all quick-release handle joints, frame connections, distractor racks, and blade attachments are fully secured before proceeding.

Note: Assembly and clinical use must be performed by appropriately trained healthcare professionals according to applicable manufacturer instructions, institutional protocols, and the requirements of the surgical procedure.

Sterilization Box

The complete set is supplied with one heavy-duty Sterilization Box. This box incorporates designated holding brackets, slots, and compartments engineered to hold, organize, and protect all 4 frames, 2 handles, 56 retractor blades, distraction racks, drill guides, drivers, and grafting tools during handling, transport, and hospital cleaning cycles.

Why Choose Retractor Maker?

Retractor Maker is a specialized manufacturer and global supplier focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Our facility in Sialkot, Pakistan dedicates its production lines exclusively to precision surgical retractor platforms.

• Precision Engineering: Engineered using strict quality controls to maintain accurate dimensional tolerances and dependable mechanical locking.

• Global B2B Supply: Supplying healthcare networks, spine surgery centers, medical equipment importers, and distributors globally.

• Export Fulfillment: Maintaining dependable production schedules and streamlined international order dispatch for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Image-Line ACF Retractor With Distraction Quick Release Set?

It is a complete anterior cervical spine surgery instrumentation platform featuring quick-release frames, spring-loaded handles, 56 retractor blades, single- and multi-level distractors, bone graft tools, and a sterilization box.

What components are included in the set?

The set includes 4 frames, 2 spring-loaded handles, 1 depth gauge, 56 retractor blades (blunt, short teeth, long teeth, micro), 1 twist drill, 2 drill guides, 2 vertebral body distractors, 2 multilevel distractors, 2 drivers, 1 graft holder, 3 impactors, 1 graft cutter, 1 caliper, and 1 sterilization box.

What blade sizes are available in the set?

Standard blunt blades range from 30 mm to 75 mm. Short-teeth and long-teeth blades range from 30 mm to 65 mm. Micro blades range from 35 mm to 60 mm in length.

What types of blades are included?

The set includes standard Blunt Blades, Short Teeth Blades, Long Teeth Blades, Micro Blunt Blades, and Micro Short Teeth Blades.

What are the micro blade dimensions?

All micro blades feature a 14 mm width across six length options: 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, and 60 mm.

What distraction components are included?

The distraction suite includes 1 CVB Twist Drill (8 mm depth), Left and Right Drill Guides, Left and Right Vertebral Body Distractors (100 mm rack), Left and Right Multilevel Distractors (120 mm rack with 90 mm extension), and 2 Silicone-Handled Screwdrivers.

What is the purpose of the CVB Twist Drill?

The CVB Twist Drill (8 mm depth stop, 5¾″ length) is used to prepare pilot holes for distraction screws prior to mounting the distractors.

What bone graft instruments are included?

The set supplies a Bone Graft Holder (8 × 15 mm tip, 210 mm length), 3 Graft Impactors (3 mm, 5 mm, 8 mm), an adjustable Graft Cutter (8.75″ depth, 7 mm width), and a 9″ ACF Caliper.

Does the set include a sterilization box?

Yes. The complete system is supplied inside a heavy-duty Sterilization Box for organized transport, storage, and hospital reprocessing.

Who should assemble and use the system?

Assembly and clinical use must be performed exclusively by appropriately trained healthcare professionals according to applicable manufacturer instructions and institutional protocols.

Request Your Direct Factory Quote

Equip your neurosurgical and spine suites with precision-manufactured ACF retractor platforms directly from the manufacturer. Whether managing hospital procurement, sourcing specialized inventory for a medical distribution network, or seeking an OEM production partner, Retractor Maker delivers reliable product quality and efficient export fulfillment.

To discuss product availability, technical specifications, wholesale pricing, or private-label terms, Request a Quote or Contact Us today to connect directly with our engineering sales team. You can also explore our specialized portals: Visit Our Bookwalter Retractor Website and Visit Our Leyla Retractor Website.
