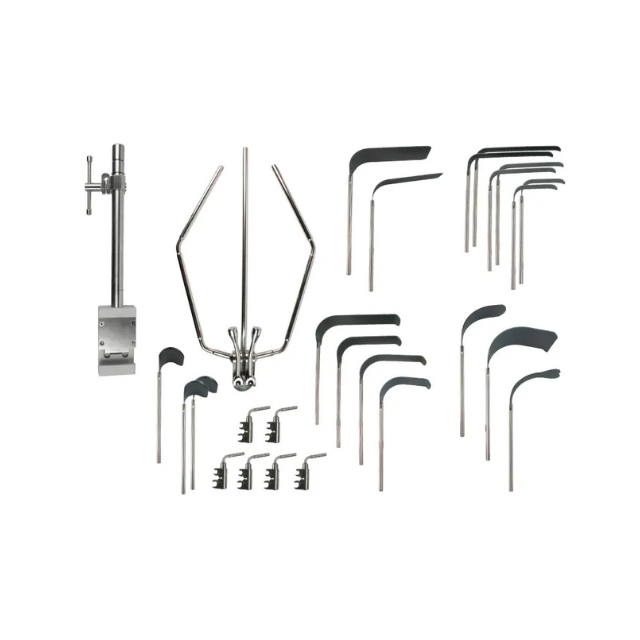

Lobster Anterior Lumbar Retractor

The Lobster Anterior Lumbar Retractor is a specialized, table-mounted surgical retraction platform designed to establish and maintain surgical exposure during anterior lumbar procedures. Combining a rigid table-anchored frame with an array of multi-style stainless steel swivel retractors, this system provides surgical teams with self-retaining, multi-axis tissue retraction over the operative site.

Retractor Maker manufactures and supplies the Lobster Anterior Lumbar Retractor system to hospital procurement departments, spine surgery centers, healthcare equipment distributors, importers, and OEM partners globally. Supplied as a complete kit inside a dedicated sterilization box, this platform delivers structured component configuration for anterior surgical access.

What Is the Lobster Anterior Lumbar Retractor?

The Lobster Anterior Lumbar Retractor is a self-retaining retraction platform created to maintain static exposure during anterior approach surgical procedures on the lumbar spine. Establishing access through an anterior pathway requires steady, hands-free soft tissue retraction to keep the surgical corridor clear while supporting organ and vascular structure clearance.

The foundational structural support is provided by the Lobster Table Clamp with Vertical Post & Frame Coupler, which mounts directly to the operating room table side rail. The main Lobster Frame attaches to this mounting assembly to form a stable framework over the patient. Six independent Lobster Retractor Clamps position around the frame to hold individual retractor blades in place.

To accommodate varying anatomical depths, tissue profiles, and procedural exposures, the system includes 16 stainless steel swivel retractors divided across seven blade styles: Mayo, Deaver, Harrington, Malleable, Fence, Renal, and Splanchnic. Each swivel retractor connects into the retractor clamps, allowing the surgical team to adjust blade angle, depth, and spatial orientation relative to the surgical field.

Lobster Anterior Lumbar Retractor Components

The Lobster Anterior Lumbar Retractor is supplied as a complete set containing the following structural mounting hardware, retractor clamps, swivel blades, and storage containment:

Quantity	Component	Dimensions
6	Lobster Retractor Clamp	—
1	Lobster Table Clamp with Vertical Post & Frame Coupler	—
1	Lobster Frame	—
2	Lobster Mayo Swivel Retractor, Stainless Steel	2¾″ × 2″
1	Lobster Mayo Swivel Retractor, Stainless Steel	3½″ × 2″
1	Lobster Deaver Swivel Retractor, Stainless Steel	2¾″ × 4½″
1	Lobster Harrington Swivel Retractor, Stainless Steel	2″ × 5″
1	Lobster Malleable Swivel Retractor, Stainless Steel	2″ × 6½″
1	Lobster Malleable Swivel Retractor, Stainless Steel	3″ × 6½″
1	Lobster Fence Swivel Retractor, Stainless Steel	4″ × 6″
2	Lobster Renal Swivel Retractor, Stainless Steel	1″ × 4″
2	Lobster Renal Swivel Retractor, Stainless Steel	1″ × 6″
2	Lobster Renal Swivel Retractor, Stainless Steel	1″ × 8″
1	Lobster Splanchnic Swivel Retractor, Stainless Steel	1½″ × 6″
1	Lobster Splanchnic Swivel Retractor, Stainless Steel	2″ × 4½″
1	Lobster Splanchnic Swivel Retractor, Stainless Steel	2″ × 6″
1	Lobster Splanchnic Swivel Retractor, Stainless Steel	2″ × 8″
1	Sterilization Box	—

Frame and Mounting Components

The structural framework of the Lobster system relies on three core mounting and holding components:

Lobster Table Clamp with Vertical Post & Frame Coupler

Anchors the entire retractor assembly directly to the operating table rail. The vertical post elevates the frame above the operative field, while the frame coupler links the post securely to the primary retractor frame.

Lobster Frame

Functions as the primary structural mounting geometry surrounding the surgical area. It provides the rigid perimeter needed to attach and position multiple retractor clamps around the perimeter of the incision.

Lobster Retractor Clamps

The set includes six dedicated retractor clamps that mount onto the Lobster Frame. These clamps hold the shafts of individual swivel retractors, securing blade positions once aligned by the surgical team.

Swivel Retractor Options

The set includes 16 stainless steel swivel retractors spanning seven blade geometries to match different anatomical requirements during anterior exposure:

Mayo Swivel Retractors

• 2¾″ × 2″ (Quantity: 2)

• 3½″ × 2″ (Quantity: 1)

Featuring a broad, firm profile, Mayo-style swivel retractors are used for primary muscle and dense soft tissue retraction near the boundary of the surgical corridor.

Deaver Swivel Retractor

• 2¾″ × 4½″ (Quantity: 1)

Designed with a curved blade structure, the Deaver swivel retractor provides deep curved tissue retention within the surgical field.

Harrington Swivel Retractor

• 2″ × 5″ (Quantity: 1)

Features a broad, padded-style distal surface for deep field soft tissue retraction.

Malleable Swivel Retractors

• 2″ × 6½″ (Quantity: 1)

• 3″ × 6½″ (Quantity: 1)

Formable blade structures that allow hand-contouring to specific anatomical structures or unusual patient contours prior to securing in a frame clamp.

Fence Swivel Retractor

• 4″ × 6″ (Quantity: 1)

Incorporates a wide, slotted blade configuration to manage large soft tissue mass or organ displacement across a broad surface area.

Renal Swivel Retractors

• 1″ × 4″ (Quantity: 2)

• 1″ × 6″ (Quantity: 2)

• 1″ × 8″ (Quantity: 2)

Narrow 1-inch width blades supplied in 4-inch, 6-inch, and 8-inch reach lengths. These slender profiles permit targeted deep tissue retraction within tight corridor parameters.

Splanchnic Swivel Retractors

• 1½″ × 6″ (Quantity: 1)

• 2″ × 4½″ (Quantity: 1)

• 2″ × 6″ (Quantity: 1)

• 2″ × 8″ (Quantity: 1)

Supplied in 1½-inch and 2-inch widths across lengths from 4½ inches to 8 inches, these blades are configured to hold back soft tissue structures across deeper abdominal and anterior retroperitoneal corridors.

What Is the Lobster Retractor Used For?

The Lobster Anterior Lumbar Retractor is engineered to provide self-retaining, table-mounted exposure during anterior approaches to the lumbar spine.

Key operational values of the system include:

• Table-Mounted Stability: Anchoring directly to the table rail transfers retraction force away from surgical personnel, maintaining a rigid, static field frame.

• Self-Retaining Operation: Retractor clamps hold blades fixed in position once set, preserving steady corridor clearance without requiring manual holding.

• Multi-Axis Blade Selection: The broad array of Mayo, Deaver, Harrington, Malleable, Fence, Renal, and Splanchnic blades allows surgical staff to select blade geometries aligned with patient body habitus and specific depth requirements.

• Organized Component Kit: All 16 swivel retractors, 6 retractor clamps, frame, table-mounting assembly, and sterilization box are supplied in a single unified system.

How the Lobster Anterior Lumbar Retractor Is Configured

System mounting and component assembly follow a standard structural sequence prior to intraoperative tissue retraction:

1. Table Mounting: Secure the Lobster Table Clamp firmly onto the side rail of the operating table in alignment with the target surgical level.

2. Post and Frame Attachment: Insert the vertical post into the table clamp, connect the frame coupler, and mount the Lobster Frame over the operative field at the appropriate height.

3. Clamp Placement: Attach the required number of Lobster Retractor Clamps (up to 6) onto the frame perimeter facing toward the surgical site.

4. Blade Selection: Select the appropriate swivel retractors (Mayo, Deaver, Harrington, Malleable, Fence, Renal, or Splanchnic) matching the required depth and width of the surgical pathway.

5. Retractor Positioning: Insert the selected swivel retractors into the retractor clamps, position the blades to achieve the necessary field exposure, and tighten the clamps to hold placement.

6. Pre-Use Inspection: Verify that all table clamp locks, frame connections, clamp screws, and swivel blades are securely fastened prior to proceeding.

Medical Disclaimer: Assembly and use should be performed by trained healthcare professionals according to the manufacturer’s instructions, hospital protocols, and the requirements of the surgical procedure.

Key Features

• Complete table-mounted anterior lumbar retractor system

• Heavy-duty table clamp with vertical post and frame coupler

• Central structural Lobster Frame

• 6 dedicated Lobster Retractor Clamps

• 16 stainless steel swivel retractors across 7 blade configurations

• Mayo, Deaver, Harrington, Malleable, Fence, Renal, and Splanchnic retractor options included

• Blade depth options ranging from 4 inches to 8 inches and widths from 1 inch to 4 inches

• Complete kit supplied with an organized sterilization box

Complete Set Overview

The Lobster Anterior Lumbar Retractor is delivered as a 26-piece unified system (plus sterilization box). By combining table-anchored vertical support, a main structural frame, 6 frame clamps, and 16 specialized stainless steel swivel retractors across variable blade shapes and depth ranges, this set equips surgical facilities with a complete hardware foundation for anterior lumbar surgical exposure in a single organized kit.

Why Choose Retractor Maker?

Retractor Maker is an established manufacturer focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Established in 2023, our plant in Pakistan dedicates its facility and machinery specifically to surgical retractors.

• Skilled Workforce: Supported by an experienced workforce of over 50 instrument technicians and engineers.

• Proven Supply Network: We have supplied over 500 satisfied healthcare partners, procurement teams, and distributors globally.

• Reliable Fulfillment: We maintain an average production and order dispatch lead time of 12 to 16 days for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Lobster Anterior Lumbar Retractor?

It is a complete, table-mounted surgical retractor system designed to provide self-retaining soft tissue retraction and surgical field exposure during anterior approach lumbar procedures.

What is the Lobster Retractor used for?

It is used to establish and maintain a stable, hands-free surgical corridor during anterior lumbar spine surgeries by anchoring to the operating table rail and holding back surrounding tissue structures.

What components are included in the complete set?

The complete set includes 1 Table Clamp with Vertical Post & Frame Coupler, 1 Lobster Frame, 6 Lobster Retractor Clamps, 16 Stainless Steel Swivel Retractors across 7 blade styles, and 1 Sterilization Box.

How many Lobster Retractor Clamps are included?

The set includes six dedicated Lobster Retractor Clamps for securing swivel blades around the frame perimeter.

What types of swivel retractors are included in the set?

The set includes seven distinct retractor blade styles: Mayo (3), Deaver (1), Harrington (1), Malleable (2), Fence (1), Renal (6), and Splanchnic (4) swivel retractors.

What sizes of Renal Swivel Retractors are included?

The set contains six Renal Swivel Retractors with a 1-inch blade width across three length options: 1″ × 4″ (2), 1″ × 6″ (2), and 1″ × 8″ (2).

What sizes of Splanchnic Swivel Retractors are included?

The set includes four Splanchnic Swivel Retractors: 1½″ × 6″ (1), 2″ × 4½″ (1), 2″ × 6″ (1), and 2″ × 8″ (1).

Does the system include a table clamp?

Yes. The set includes a heavy-duty Lobster Table Clamp featuring an integrated vertical post and frame coupler to mount the assembly securely onto the operating table rail.

Is a sterilization box included with the system?

Yes. The entire component set is supplied inside a dedicated Sterilization Box for organized storage, transport, and hospital reprocessing cycles.

Who is the Lobster Anterior Lumbar Retractor intended for?

It is intended for use by trained surgical teams, spine surgeons, and operating room personnel in hospital surgical suites, specialty spine centers, and surgical facilities.

How can buyers request a quotation for this system?

Hospitals, medical device distributors, procurement officers, and OEM buyers can submit a direct quotation inquiry through our website contact portal or request a quote page.
