Phantom AL Anterior Lumbar Surgical Access System

The Phantom AL Anterior Lumbar Surgical Access System is a specialized surgical retraction and access assembly engineered for anterior approach lumbar spine procedures. The system combines a 300 mm diameter central retractor ring with table-mounted support components, pivoting blade holders, and a broad range of interchangeable retractor blades.

Retractor Maker manufactures and supplies the Phantom AL Anterior Lumbar Surgical Access System for hospital procurement departments, specialty spine centers, surgical equipment distributors, healthcare importers, and OEM partners globally. Delivered in an aluminum sterilization box, this complete assembly provides surgical teams with a structured platform for maintaining anterior operative exposure.

What Is the Phantom AL Anterior Lumbar Surgical Access System?

The Phantom AL Anterior Lumbar Surgical Access System is a ring-based, table-mounted retractor platform designed specifically to support anterior surgical access to the lumbar spine. Establishing and maintaining an unobstructed surgical corridor during anterior lumbar operations requires stable, hands-free retraction that can be tailored to patient anatomy and operative depth.

The core of the system is a 300 mm diameter retractor ring supported by two rotatable table clamps and two arms with ring holders. Extension bars integrate into the frame to extend or position the assembly over the operative site. Six ring clamps and six pivoting blade holders attach around the perimeter of the ring, allowing independent multi-axis positioning of individual blades.

To accommodate varying anatomical depths and surgical approaches, the system includes 32 retractor blades (25 mm width) distributed equally across eight length options ranging from 60 mm to 200 mm. System setup and intraoperative adjustments are performed using the supplied 225 mm hex wrench and hex driver tool.

Components Included

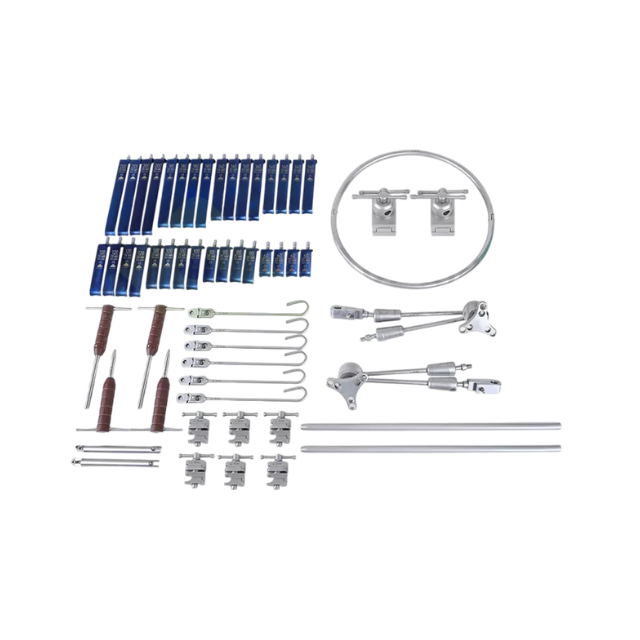

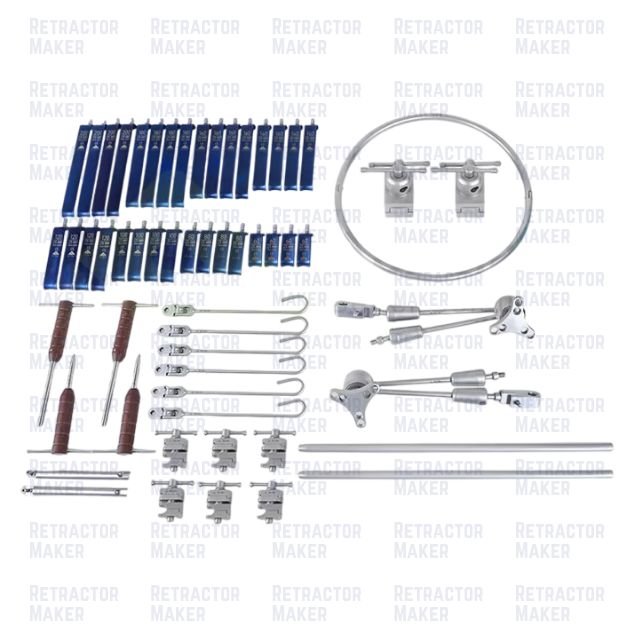

The Phantom AL Anterior Lumbar Surgical Access System is supplied as a complete set containing the following structural, frame, blade, mounting, and adjustment components:

Quantity	Component	Dimensions / Details	General Function
4	Blade	25 × 60 mm	Shallow depth retractor blade
4	Blade	25 × 80 mm	Medium-shallow depth retractor blade
4	Blade	25 × 100 mm	Intermediate depth retractor blade
4	Blade	25 × 120 mm	Standard depth retractor blade
4	Blade	25 × 140 mm	Extended depth retractor blade
4	Blade	25 × 160 mm	Deep surgical corridor retractor blade
4	Blade	25 × 180 mm	Extra-deep surgical corridor retractor blade
4	Blade	25 × 200 mm	Maximum reach retractor blade
1	Retractor Ring	300 mm Diameter	Central circular framework for the retractor
2	Extension Bar	Standard	Extends or positions retractor frame assembly
6	Ring Clamp	Standard	Secures holders and components to retractor ring
6	Pivoting Blade Holder	Standard	Provides adjustable blade mounting on the ring
1	Hex Wrench	225 mm	Manual wrench for frame adjustment and assembly
2	Arm With Ring Holder	Standard	Supports and connects retractor ring to table mounts
2	Rotatable Table Clamp	Standard	Anchors support structure to OR table side rails
1	Hex Driver Tool	Standard	Specialized driver tool for system adjustment
1	Sterilization Box	Aluminum	Perforated storage container for reprocessing

Phantom AL Blade Options

The system features an extensive sizing selection of 32 total blades, all maintaining a uniform 25 mm width while offering eight distinct lengths:

Blade Size (Width × Length)	Quantity Included
25 × 60 mm	4
25 × 80 mm	4
25 × 100 mm	4
25 × 120 mm	4
25 × 140 mm	4
25 × 160 mm	4
25 × 180 mm	4
25 × 200 mm	4

This configuration provides four blades for each depth option, allowing surgical teams to establish symmetrical or asymmetrical multi-blade retraction setups corresponding to tissue depth, surgical approach, and anatomical requirements.

Retractor Ring & Support Frame

The Phantom AL system relies on a modular structural assembly to ensure stability over the operating table:

300 mm Retractor Ring

Serves as the central circular foundation of the system, providing a 360-degree attachment surface for mounting blade holders and auxiliary hardware around the surgical field.

Extension Bars

Two extension bars integrate into the structural geometry to extend or adjust the reach and posture of the main ring assembly relative to the mounting points.

Ring Clamps

Six ring clamps attach directly onto the 300 mm retractor ring, securing blade holders and auxiliary arms at designated locations along the perimeter.

Pivoting Blade Holders

Six pivoting blade holders mount into the ring clamps, offering adjustable, multi-angle blade positioning for controlled tissue retention.

Arms With Ring Holders

Two structural arms connect the retractor ring directly to the table-mounting components, maintaining the frame in a elevated position over the patient.

Rotatable Table Clamps

Two heavy-duty rotatable table clamps anchor the supporting arms directly to the surgical table side rails, providing a rigid, table-mounted base for the entire system.

Tools Included

The Phantom AL system incorporates dedicated adjustment tools to facilitate assembly, blade mounting, and frame locking:

• 225 mm Hex Wrench: Hand tool designed for manual tightening, positioning, and frame adjustment.

• Hex Driver Tool: Specialized driver instrument for fast, precise intraoperative adjustments of system fasteners.

Uses of the Phantom AL Anterior Lumbar Surgical Access System

The Phantom AL Anterior Lumbar Surgical Access System is designed for specialized applications within anterior approach lumbar spine surgery, including:

• Establishing anterior lumbar surgical access pathways

• Maintaining surgical field exposure during anterior operative procedures

• Controlled, static soft tissue retraction in deep anatomical corridors

• Holding surrounding organs, vessel structures, and soft tissues away from the primary surgical target

• Supporting rigid, hands-free field stability across variable patient anatomical depths

Key Features

• Designed specifically for anterior lumbar surgical access and retraction

• 300 mm diameter central retractor ring providing 360-degree mounting options

• 32 retractor blades supplied in 8 distinct lengths (60 mm to 200 mm)

• Uniform 25 mm blade width across all length options

• 6 pivoting blade holders for multi-angle blade orientation

• 6 ring clamps for secure perimeter mounting

• 2 structural extension bars for frame adjustment

• 2 supporting arms with ring holders for stable frame elevation

• 2 rotatable table clamps for secure OR table rail attachment

• Assembly tools included (225 mm hex wrench and hex driver tool)

• Heavy-duty aluminum sterilization box included for organized storage and reprocessing

General Setup & Assembly

System mounting and configuration should follow standard operating room preparation:

1. Component Inspection: Inspect all structural hardware, table mounts, tools, and required blades prior to procedure setup.

2. Table Mounting: Secure the two rotatable table clamps firmly to the side rails of the operating table.

3. Arm Attachment: Insert the two arms with ring holders into the table clamps and lock them in position over the surgical field.

4. Ring Positioning: Mount the 300 mm retractor ring into the ring holders, utilizing the extension bars if additional frame positioning is required.

5. Clamp Installation: Position the six ring clamps along the retractor ring perimeter at the desired retraction angles.

6. Blade Holder Assembly: Connect the pivoting blade holders to the ring clamps.

7. Blade Selection & Insertion: Select the appropriate blade lengths (from 60 mm up to 200 mm) based on patient tissue depth and insert them into the pivoting holders.

8. Adjustment & Securing: Use the 225 mm hex wrench and hex driver tool to adjust blade angle, retraction depth, and frame tightness.

9. Final Stability Check: Verify that all table clamps, ring holders, and blade locks are fully secured before proceeding.

Assembly and use should be performed by trained healthcare professionals according to applicable manufacturer instructions, hospital protocols, and the requirements of the surgical procedure.

Sterilization Box & Packaging

The Phantom AL Anterior Lumbar Surgical Access System includes a heavy-duty Aluminum Sterilization Box. This specialized container features dedicated organizational trays and slots to house the 300 mm retractor ring, 32 blades, table clamps, supporting arms, and assembly tools. The box protects instrument joints and blade surfaces during handling, transport, and routine hospital reprocessing cycles.

Why Choose Retractor Maker?

Retractor Maker is an established manufacturer focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Established in 2023, our plant in Pakistan dedicates its facility and machinery specifically to surgical retractors.

• Skilled Workforce: Supported by an experienced workforce of over 50 instrument technicians and engineers.

• Proven Supply Network: We have supplied over 500 satisfied healthcare partners, procurement teams, and distributors globally.

• Reliable Fulfillment: We maintain an average production and order dispatch lead time of 12 to 16 days for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Phantom AL Anterior Lumbar Surgical Access System?

It is a complete, table-mounted surgical retractor system featuring a 300 mm ring, 32 blades, pivoting blade holders, extension bars, table clamps, assembly tools, and an aluminum sterilization box designed for anterior lumbar surgical access.

What is the Phantom AL system used for?

It is used to provide controlled soft tissue retraction and maintain static exposure of the surgical field during anterior approach lumbar spine operations.

What components are included in the complete system?

The system includes 1 retractor ring (300 mm), 32 blades (8 lengths, 4 of each), 2 extension bars, 6 ring clamps, 6 pivoting blade holders, 2 arms with ring holders, 2 rotatable table clamps, 1 hex wrench (225 mm), 1 hex driver tool, and 1 aluminum sterilization box.

What blade sizes are included in the set?

All blades are 25 mm wide and are supplied in eight length options: 60 mm, 80 mm, 100 mm, 120 mm, 140 mm, 160 mm, 180 mm, and 200 mm.

How many blades of each size come with the system?

The set includes exactly 4 blades for each of the 8 length options, totaling 32 retractor blades.

What is the diameter of the Phantom AL retractor ring?

The central retractor ring features a 300 mm diameter.

How many pivoting blade holders and ring clamps are included?

The set includes 6 pivoting blade holders and 6 matching ring clamps for perimeter frame mounting.

Does the system include table clamps for mounting?

Yes. It includes 2 rotatable table clamps and 2 arms with ring holders to secure the entire ring frame directly to the operating table.

What tools are included for assembly and adjustment?

The system includes one 225 mm hex wrench and one hex driver tool for adjusting and securing frame components.

Is an aluminum sterilization box included with the system?

Yes. The complete system is packaged and organized inside a heavy-duty aluminum sterilization box for transport, storage, and hospital reprocessing.
