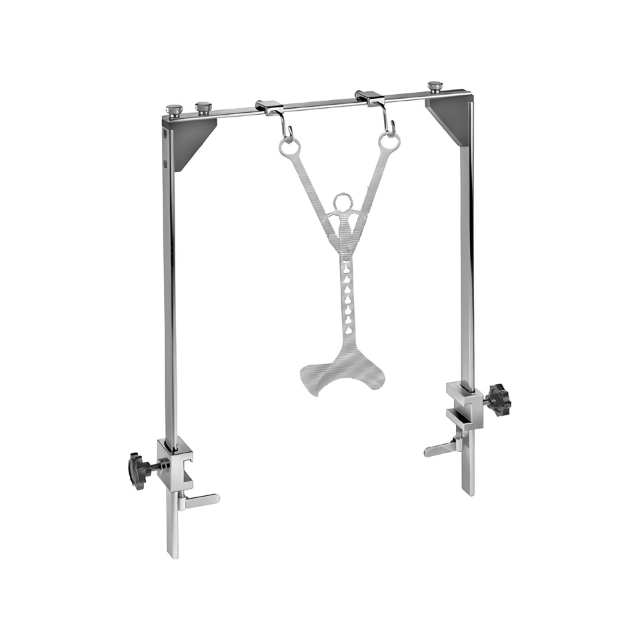

Rochard Retractor

The Rochard Retractor is a specialized table-mounted surgical retraction system designed to assist surgical teams in establishing and maintaining stable operative exposure. Built around a robust mounting frame framework, this system provides rigid, self-retaining support to hold tissue and abdominal structures securely throughout surgical procedures.

Retractor Maker manufactures and supplies the Rochard Retractor to hospitals, surgical centers, medical equipment distributors, healthcare importers, and OEM brand partners globally. Engineered to meet the demanding mechanical requirements of operating suites, this platform delivers dependable stability, hands-free field maintenance, and structural reliability during surgical interventions.

Supplied as a comprehensive 1-set configuration, the Rochard Retractor combines heavy-duty table rail clamping hardware, structural side and cross bars, a dedicated fixation device, and multiple abdominal retractor size options to accommodate varying operative exposure requirements.

What Is the Rochard Retractor?

The Rochard Retractor is a table-supported mechanical retraction system engineered to provide stable, self-retaining access to the operative site. Unlike hand-held retractors that rely on continuous manual effort by surgical assistants, the Rochard platform anchors directly to the operating table rails, establishing a rigid overhead frame above the surgical field.

The system functions through the integration of its core structural and positioning components:

• Operating Table Attachment: Heavy-duty rail clamps lock onto the side rails of the operating table to form a solid mechanical foundation.

• Overhead Framework: Two vertical table side bars and a connecting table cross bar assemble into a rigid bridge over the patient.

• Fixation & Traction: The Rochard fixation device mounts onto the cross bar assembly, securing the selected abdominal retractor blade in place.

• Field Exposure: The abdominal retractor blade engages soft tissue margins, maintaining static, hands-free exposure at the required position.

Working together, these components create a secure, stable retraction setup that minimizes field obstruction, frees operating room personnel for other procedural tasks, and maintains continuous visibility across the operative area.

Rochard Retractor Components

The Rochard Retractor is supplied as a complete set containing the following core mounting, fixation, and retraction components:

Quantity	Component	Dimensions / Details
2	Rail Clamp	Operating table rail attachment
2	Table Side Bar	26″ (Mounting Frame)
1	Table Cross Bar	21″ (Mounting Frame)
1	Rochard Fixation Device	Frame fixation mechanism
1	Rochard Abdominal Retractor	50 × 90 mm
1	Rochard Abdominal Retractor	50 × 105 mm
1	Rochard Abdominal Retractor	50 × 120 mm

Mounting Frame and Support Components

The structural stability of the Rochard Retractor relies on four primary foundation and fixation elements:

Rochard Rail Clamps

The set includes two dedicated rail clamps designed to attach securely to the standard accessory side rails of the operating table. These clamps serve as the primary anchoring points, securing the entire upright framework firmly to the table base.

Table Side Bars (26″)

Two 26-inch table side bars mount vertically into the rail clamps. These upright bars elevate the support structure above the patient, providing the necessary height and vertical clearance required for surgical access.

Table Cross Bar (21″)

A 21-inch table cross bar connects horizontally across the two vertical side bars. This horizontal bar spans the operative field, providing a rigid overhead beam that serves as the mounting track for the fixation hardware and retractor components.

Rochard Fixation Device

The Rochard fixation device mounts directly onto the cross bar structure. It functions as the central mechanical link that holds, positions, and secures the abdominal retractor blades at the designated angle and location.

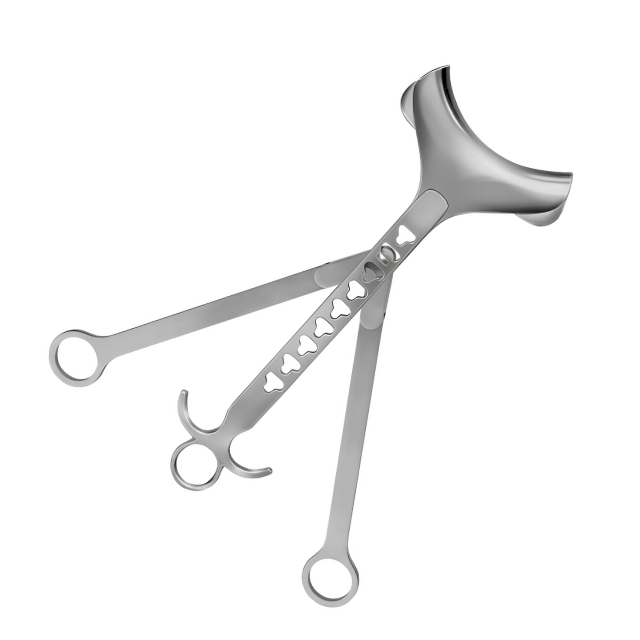

Rochard Abdominal Retractor Options

To accommodate different anatomical dimensions and procedural requirements, the complete system includes three interchangeable Rochard abdominal retractor sizes:

• 50 × 90 mm Abdominal Retractor: Compact profile for shallow or narrow retraction fields.

• 50 × 105 mm Abdominal Retractor: Intermediate dimension for standard operative depth and tissue displacement.

• 50 × 120 mm Abdominal Retractor: Extended blade reach for deeper operative fields and broader tissue retraction.

Having three distinct blade depth options within the same set gives surgical teams the flexibility to select the appropriate retractor size based on the patient’s anatomy, incision dimension, and required depth of exposure.

What Is the Rochard Retractor Used For?

The Rochard Retractor is intended for general surgical retraction where stable, table-supported field maintenance and hands-free tissue displacement are required.

Key functional roles of the system include:

• Table-Mounted Support: Anchoring directly to operating table rails to eliminate manual holding and prevent unintended retractor shifting.

• Rigid Overhead Mounting: Providing a stable overhead frame that keeps the working perimeter organized and open.

• Secure Mechanical Fixation: Locking retractor blades into place to maintain consistent tissue traction throughout the procedure.

• Adaptable Exposure: Enabling the surgical team to select between 90 mm, 105 mm, and 120 mm blade depths to match varying procedural demands.

Clinical Note: The appropriate configuration, blade selection, and use should be determined by the operating surgeon according to the surgical procedure, patient anatomy, and institutional protocols.

How the Rochard Retractor Is Configured

Assembling and positioning the Rochard Retractor follows a systematic sequence to ensure mechanical stability and clear operative exposure:

1. Table Rail Attachment: Attach and lock the two rail clamps securely onto the accessory side rails of the operating table adjacent to the operative site.

2. Mounting Side Bars: Insert the two 26-inch table side bars vertically into the locked rail clamps and secure them at the required height.

3. Cross Bar Assembly: Connect the 21-inch table cross bar horizontally across the two upright side bars to complete the overhead bridge framework.

4. Positioning the Fixation Device: Mount the Rochard fixation device onto the cross bar and position it over the intended retraction vector.

5. Selecting the Retractor Blade: Select the appropriate Rochard abdominal retractor (50 × 90 mm, 50 × 105 mm, or 50 × 120 mm) based on the depth and scope of exposure required.

6. Retractor Attachment & Tensioning: Connect the selected abdominal retractor to the fixation device, engage the target soft tissue, and secure the fixation mechanism.

7. Pre-Use Verification: Verify that all rail clamps, bar connections, and fixation locking points are fully tightened and stable prior to commencing primary surgical manipulation.

Safety Statement: Assembly, configuration, and clinical use must be performed by trained healthcare professionals according to applicable manufacturer instructions, hospital protocols, and the requirements of the surgical procedure.

Key Features

• Table-Mounted Configuration: Anchors directly to standard operating table rails for static, hands-free retraction

• Rigid Mounting Frame: Includes two 26″ upright side bars and one 21″ horizontal cross bar

• Dedicated Rail Clamps: Two heavy-duty clamps ensure secure table rail engagement

• Rochard Fixation Device: Central locking mechanism for stable retractor blade positioning

• Three Abdominal Retractor Sizes: Includes 50 × 90 mm, 50 × 105 mm, and 50 × 120 mm blade options

• Complete System Configuration: Supplied as 1 complete set containing all necessary mounting and retraction hardware

• Organized Component Layout: Facilitates straightforward intraoperative selection and reprocessing workflows

Why Choose Retractor Maker?

Retractor Maker is an established manufacturer focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Established in 2023, our plant in Pakistan dedicates its facility and machinery specifically to surgical retractors.

• Skilled Workforce: Supported by an experienced workforce of over 50 instrument technicians and engineers.

• Proven Supply Network: We have supplied over 500 satisfied healthcare partners, procurement teams, and distributors globally.

• Reliable Fulfillment: We maintain an average production and order dispatch lead time of 12 to 16 days for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Rochard Retractor?

The Rochard Retractor is a table-mounted surgical retraction system consisting of operating table rail clamps, an overhead mounting frame, a fixation device, and interchangeable abdominal retractor blades designed to maintain stable, hands-free surgical exposure.

What is the Rochard Retractor used for?

It is used to hold soft tissue and abdominal wall margins securely away from the operative field, providing continuous visual and physical access during surgical procedures without requiring manual holding.

What components are included in the Rochard Retractor?

The complete set includes 2 rail clamps, 2 table side bars (26″), 1 table cross bar (21″), 1 Rochard fixation device, and 3 Rochard abdominal retractors (50 × 90 mm, 50 × 105 mm, and 50 × 120 mm).

How many rail clamps are included?

The set includes 2 rail clamps designed to anchor the system to the side rails of standard operating tables.

What mounting-frame components are included?

The mounting frame includes two 26-inch table side bars and one 21-inch table cross bar that assemble into a rigid overhead bridge.

What abdominal retractor sizes are included?

The system includes three distinct sizes: 50 × 90 mm, 50 × 105 mm, and 50 × 120 mm.

Does the system include a fixation device?

Yes, the set includes 1 Rochard fixation device that connects the retractor blade to the overhead cross bar.

How is the Rochard Retractor mounted?

The retractor is mounted by securing the rail clamps to the operating table rails, inserting the vertical side bars, bridging them with the horizontal cross bar, and attaching the fixation device and selected retractor blade.

Who is the Rochard Retractor intended for?

It is intended for hospital procurement departments, surgical centers, surgeons, medical distributors, healthcare importers, and OEM buyers seeking table-mounted retraction instrumentation.

How can I request a quotation?

You can request direct factory pricing, bulk wholesale availability, and formal quotations by contacting Retractor Maker through our website inquiry form.

Request Your Direct Factory Quote

Maintain a highly reliable supply of durable, premium-grade Rochard Retractor for your healthcare network. Contact Retractor Maker today to receive an itemized wholesale price quote or catalog details.
