Thompson Retractor System

The Thompson retractor system is a highly modular, table-mounted, self-retaining retractor system designed to provide stable, hands-free surgical exposure during complex open procedures. Known for its independent articulation, the system allows surgical teams to configure customized retraction paths that match variable patient anatomies.

By locking securely onto the operating table side rails, the system acts as a rigid external skeleton. It replaces manual hand retraction completely, eliminating assistant fatigue and leaving the surgical field clear. We manufacture this entire assembly from high-grade, non-magnetic medical stainless steel at our specialized facility in Pakistan, supplying healthcare distributors, importers, and hospital procurement departments globally.

What Is the Thompson Retractor?

The Thompson retractor is an advanced, frame-based surgical instrument that converts the operating table into a structural anchor. It is highly valued for deep cavity access where standard self-retaining retractors lack the necessary span or rigid stability.

While simpler ring-style frames provide a fixed circular boundary, this modular system uses independent, double-jointed angled arms, crossbars, and micro-adjustable handles. This gives surgeons the freedom to adjust each blade’s depth, angle, and tension independently, ensuring precise exposure in highly challenging anatomical regions.

How the Thompson Retractor System Works

The system operates as a mechanical chain of structural components working together to achieve safe, high-tension retraction:

• Elite Rail Clamps: Dual heavy-duty clamps attach directly over the sterile drapes onto both side rails of the operating table, forming a rock-steady two-point foundation.

• Double Angled and Lateral Arms: These arms extend vertically and horizontally from the clamps, allowing the frame to clear the patient’s body safely.

• Bilateral Hinged Crossbar: This adjustable bar arches over the patient, creating a stable bridge above the surgical site. The hinged design allows the bar to be angled to match curved patient bodies.

• Cam Clip-Ons: These quick-connect clips slide along the crossbars, allowing the surgical team to attach blade handles at any position.

• Micro-Adjustable Handle: Features a precise threaded dial mechanism. Turning the dial allows the scrub nurse or surgeon to apply gradual, millimeter-specific tension to the attached blade.

• Interchangeable Blades: Standard or malleable metal plates of various shapes and sizes that sit directly in the wound, holding back muscle, fat, or internal organs.

Complete Kit Components and Specifications

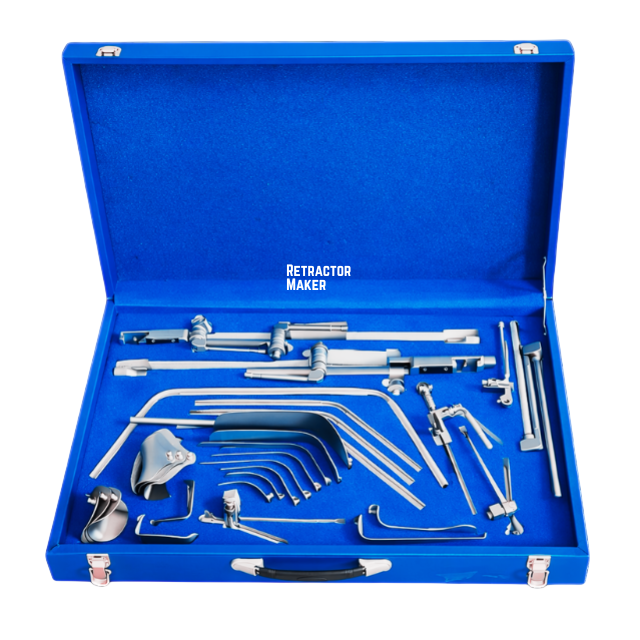

Our factory supplies the complete Thompson-style system with all standard structural arms, clamping hardware, and deep-tissue blades organized in a secure storage case.

Quantity	Component	Dimensions
2	Elite Rail Clamp	22″ (55.9 cm) heavy-duty side rail mount
1	Double Angled Arm	22″ (7″ × 9″ × 7″ / 17.8 × 22.9 × 17.8 cm)
1	Lateral Angled Arm	19″ (12″ × 7″ / 30.5 × 17.8 cm) @ 45° (⅜″ diameter)
2	Lateral Angled Arms	17″ (10″ × 7″ / 25.4 × 17.8 cm) @ 45° (⅜″ diameter)
1	Bilateral Crossbar (Hinged)	34″ (11½″ × 8½″ × 11½″ / 29.2 × 21.6 × 29.2 cm)
3	Cam Clip-On	Quick-connect frame sliding clips
1	Micro-Adjustable Handle	10″ (25.4 cm) with precise tension screw
3	Balfour Blades with Lips	83 × 73 mm, 83 × 123 mm, 83 × 175 mm
3	Wide Balfour Blades	Interchangeable, broad muscle wall hold
1	Harrington (Sweetheart) Blade	114 × 254 mm (4½″ × 10″) for deep organ hold
9	Kelly Interchangeable Blades	3″ × 3½″ (7.6 × 8.9 cm) standard right-angle
1	Malleable Interchangeable Blade Set	25×190 mm, 51×254 mm, 76×254 mm, 102×254 mm
2	St. Marks Interchangeable Blades	51 × 152 mm (2″ × 6″) with deep lip edge
1	Storage Box	Wooden storage case with customized padding slots

Surgical Specialties and Clinical Applications

The high degree of flexibility offered by the Thompson Retractor System makes it an essential asset across multiple open specialties:

• General & Hepatobiliary Surgery: Provides exceptional, wide exposure of the upper abdomen during liver resections, cholecystectomies, and pancreatectomies.

• Transplant Surgery: Essential for stabilizing abdominal fields during multi-hour kidney, liver, and pancreas transplantations.

• Urology & Pelvic Reconstruction: Deployed to secure wide retroperitoneal or deep pelvic access during radical prostatectomies and cystectomies.

• Obstetrics & Gynecology: Used to maintain clear visual fields during total abdominal hysterectomies and radical staging surgeries.

• Vascular & Trauma Surgery: Enables stable, hands-free exposure of major blood vessels during abdominal aortic aneurysm (AAA) repairs.

Technical Specifications, Material, and Quality

Materials and Craftsmanship

We forge all structural bars, joints, handles, and blades from premium medical-grade stainless steel. This alloy prevents any flexing or bending under high tension. The entire system features a satin matte finish. This non-reflective surface scatters light evenly, preventing glare under high-intensity operating room lighting.

Sterilization and Reprocessing Compatibility

All components of our Thompson-style retractor are fully reusable and built to withstand rigorous hospital cleaning and sterilization cycles:

• Pre-Cleaning: Safe for use with enzymatic detergents, ultrasonic washers, and automated decontamination systems.

• Steam Autoclave Compatibility: Fully compliant with standard pre-vacuum steam sterilization cycles ($134^\circ\text{C}$ or $273^\circ\text{F}$ for 4 to 5 minutes).

Product Advantages vs. Limitations

Key Advantages	Practical Considerations
Independent Articulation: Allows each blade to be placed, angled, and tensioned independently.	Setup Time: Requires initial training for operating room staff to assemble the multi-piece frame quickly.
Micro-Adjustable Tension: Hand dials allow millimeter-specific blade adjustments to prevent over-tensioning.	Inventory Oversight: Multiple modular parts require careful tracking during reprocessing cycles.
Stable Dual-Rail Anchor: Elite rail clamps secure the frame to both sides of the table, eliminating movement.	Storage Footprint: Requires a dedicated case in the sterile processing department.

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. This dedicated focus ensures that all structural arms, gear joints, and blade edges meet strict mechanical tolerances.

• Cross-Inventory Compatibility: We build our rails, arms, cam clips, and blades to standard industry-recognized dimensions. This ensures they integrate with your existing hospital inventory.

• OEM & Custom Contract Sourcing: We operate a full-service OEM division. We can customize blade depths, arm lengths, or laser-etch your corporate branding directly on the instruments.

• Predictable Logistics: With a skilled workforce of over 50 employees in Pakistan, we maintain an average production lead time of 12 to 16 days for bulk orders, supporting over 500 satisfied customers globally.

Frequently Asked Questions (FAQs)

What is a Thompson retractor used for?

The Thompson retractor system is a table-mounted, self-retaining surgical device used to secure multi-directional exposure during major open procedures, including transplant, hepatobiliary, urological, and deep vascular surgeries.

How does the Thompson retractor differ from the Bookwalter retractor?

While the Bookwalter uses a centralized structural ring frame, the Thompson uses independent angled arms, crossbars, and micro-adjustable handles. This provides greater freedom to position and tension each blade at different heights and angles.

Are your components compatible with existing Thompson frames?

Yes. All our modular arms, rail clamps, cam clips, and blades are manufactured to meet standard industry-recognized dimensions, allowing you to use them alongside your existing hospital inventory.

Why does the system use a bilateral double-clamp design?

The elite rail clamps attach to both sides of the operating table. This dual-point anchoring system distributes the physical load evenly, preventing the frame from tipping or sliding under heavy tension.

Can we buy individual replacement blades or clamps?

Yes. We supply individual structural arms, post clamps, cam clips, and specialized blades (such as St. Marks, Harrington, or Kelly blades) to help you replenish missing or worn items.

What is the function of a cam clip-on?

The cam clip-on is a sliding, quick-connect clamp. It slides along the crossbar, allowing the surgical team to attach and lock a blade handle at any position above the incision.

How do I prevent staining on stainless steel surgical retractors?

Ensure the sterile processing department uses neutral pH detergents, rinses all parts with demineralized water, and dries the instruments thoroughly before autoclaving.
