ThoraGate Rib Up Retractor

The ThoraGate Rib Up Retractor is a specialized thoracic retraction system designed to assist surgical teams in achieving operative exposure during thoracic and selected minimally invasive cardiac procedures. By providing mechanical lifting force around the rib margins, the system maintains a stable access corridor into the thoracic cavity.

Retractor Maker manufactures and supplies the ThoraGate Rib Up Retractor for hospitals, cardiac surgical centers, healthcare importers, and medical supply distributors worldwide. The system incorporates interchangeable upper and lower blades, an articulating flexible arm, and a stabilizer foot to support controlled rib elevation based on the surgical approach chosen by the clinical team.

ThoraGate Rib Up Retractor for Minimally Invasive Surgery

The ThoraGate system is utilized in specialized thoracic procedures where a limited-access surgical entry is indicated. In clinical applications such as minimally invasive direct coronary artery bypass (MIDCAB), the surgical approach may utilize a substantially smaller incision than conventional coronary artery bypass grafting (CABG).

Depending on the surgical plan, a left-sided minithoracotomy may be performed. Under direct vision through the intercostal window, the left internal mammary artery (IMA) may be harvested, and an anastomosis between the IMA and the left anterior descending artery (LAD) may be performed. The use of a dedicated rib up retractor supports this visual pathway by elevating the superior rib margin away from the operative field.

Mechanical Stabilization Integration

During delicate vascular and cardiac procedures, localized mechanical stabilization may be incorporated into the surgical setup. A mechanical stabilizer system can be fixed using a T-bar or a flexible arm depending on the operative layout.

The stabilizer assembly may be mounted directly onto the primary ThoraGate system frame. Alternatively, after adjusting or changing the retractor configuration in situ, the stabilizer may be positioned on a small mini-thoracotomy retractor to provide localized mechanical immobilization at the target vessel site.

Product Components

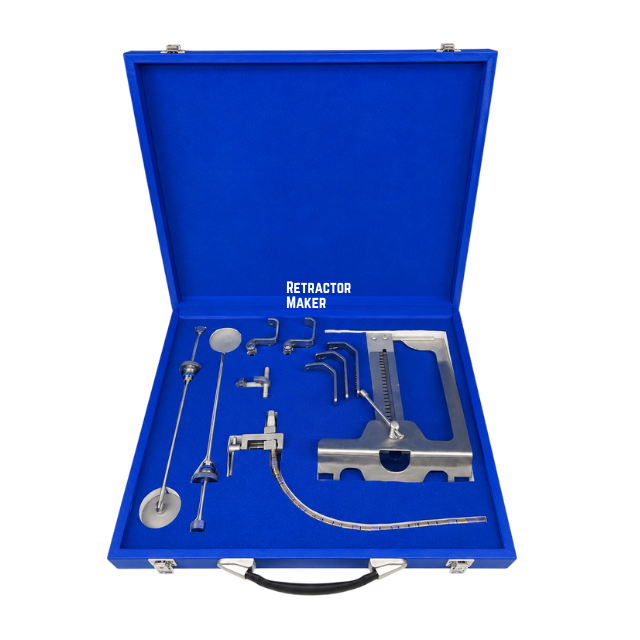

The ThoraGate Rib Up Retractor is supplied as a complete set containing the following core components:

Quantity	Component	Primary Role
1	ThoraGate Rib Up Retractor	Main thoracic retractor frame and elevation assembly
1	Flexible Arm	Articulating support arm for retractor element positioning
1	Suction Stabilizer Foot	Base unit aiding mechanical system equilibrium
2	Lower Blades (different sizes)	Interchangeable blades for lower rib engagement
3	Upper Blades (different sizes)	Interchangeable blades for superior rib elevation

ThoraGate Rib Up Retractor Main Frame

The central retractor framework provides the primary structure and mechanical leverage necessary to lift and separate adjacent ribs.

Flexible Arm

An articulating positioning arm that attaches to the system to support auxiliary retractor elements or local stabilization tools.

Suction Stabilizer Foot

A specialized base foot component designed to assist in maintaining retractor positioning and stability during exposure.

Lower Blades

Two lower blades of distinct sizes allow surgical teams to match blade depth to the patient’s anatomical wall thickness.

Upper Blades

Three upper blades of distinct sizes work in conjunction with the lower blade selection to customize the intercostal opening.

Key Features

• Specialized rib retraction frame designed for thoracic elevation

• Articulating flexible arm for positioning support

• Suction stabilizer foot to assist with base stability

• Three distinct upper blade options to adapt to patient anatomy

• Two distinct lower blade options for customized intercostal access

• Suitable for selected thoracic and minimally invasive cardiac applications

• Supports mechanical stabilization configurations described for MIDCAB approaches

Applications

The ThoraGate Rib Up Retractor is designed for use in:

• Thoracic surgery procedures requiring intercostal access

• Selected minimally invasive cardiac procedures

• Minimally invasive direct coronary artery bypass (MIDCAB) approaches

• Left-sided minithoracotomy approaches

The selection of specific retractor configurations, blade sizes, and stabilization accessories depends on the planned surgical approach, patient anatomy, and the professional judgment of the surgical team. Explore our full range of Cardiovascular Retractors and General Surgery Retractors to complement your operating suite requirements.

Why Choose Retractor Maker?

Retractor Maker is an established surgical retractor manufacturer focused specifically on manufacturing and supplying high-precision retractor platforms:

• Specialized Expertise: Established in 2023, our facility in Pakistan dedicates its production focus specifically to surgical retractor systems.

• Skilled Workforce: Our plant operates with a dedicated workforce of over 50 skilled technicians and instrument engineers.

• Global Distribution: We have supplied medical instruments to over 500 satisfied healthcare partners, procurement boards, and distributors globally.

• Reliable Production Lead Time: We maintain an average manufacturing and order dispatch lead time of 12 to 16 days for wholesale orders.

• Comprehensive Supply Solutions: We serve international hospital networks, cardiac centers, regional distributors, medical importers, and OEM private-label brand partners.

Frequently Asked Questions (FAQs)

What is the ThoraGate Rib Up Retractor?

It is a specialized thoracic surgical retractor system designed to lift the chest wall and separate ribs during thoracic and selected minimally invasive cardiac surgeries.

What is the ThoraGate Retractor used for?

It is used to provide surgical exposure and maintain visual access during thoracic procedures, minithoracotomies, and limited-access cardiac surgeries.

Is the ThoraGate Retractor used for MIDCAB procedures?

Yes. It can be used in minimally invasive direct coronary artery bypass (MIDCAB) procedures through a minithoracotomy to support LIMA harvesting and LAD anastomosis under direct vision.

What components are included with the ThoraGate Retractor?

The complete set includes 1 main retractor frame, 1 flexible arm, 1 suction stabilizer foot, 2 lower blades in different sizes, and 3 upper blades in different sizes.

How many upper and lower blades are included?

The set includes 3 upper blades of different sizes and 2 lower blades of different sizes to accommodate varying patient anatomy.

What is the purpose of the flexible arm?

The flexible arm provides articulating positioning support within the retractor assembly for auxiliary elements or local stabilization tools.

What is the suction stabilizer foot?

The suction stabilizer foot is a base component designed to assist in maintaining system equilibrium and positioning during surgical exposure.

Does Retractor Maker manufacture thoracic retractors?

Yes. Retractor Maker is a direct manufacturer and supplier of specialized thoracic, cardiovascular, and general surgical retractor systems.

How can I request a quotation for the ThoraGate Retractor?

You can request a pricing quote by submitting an inquiry through our website or contacting our technical sales team directly.

Request Your Direct Factory Quote

Equip your cardiovascular operating suites with precision-engineered thoracic retractor systems direct from the manufacturer. Whether managing hospital procurement, sourcing wholesale inventory for a medical distribution network, or seeking an OEM manufacturing partner, Retractor Maker provides direct factory support and international export fulfillment.

To discuss technical details, bulk pricing, product availability, or private-label OEM terms, Request a Quote or Contact Us today to connect with our engineering sales team.
