Urology Lobster Expanded Retractor

The Urology Lobster Expanded Retractor is a specialized, table-mounted surgical retraction platform configured to support surgical field exposure during urological procedures. Combining a central structural frame with a hinged extension arm, multiple mounting clamps, and a selection of urology-oriented swivel and malleable blades, this expanded system provides operating teams with a stable, hands-free retraction framework.

Retractor Maker manufactures and supplies the Urology Lobster Expanded Retractor to hospital procurement departments, urology surgical centers, medical equipment distributors, healthcare importers, and OEM partners globally. Supplied as a complete set inside a heavy-duty sterilization box, this platform delivers structured component configuration for surgical access.

What Is the Urology Lobster Expanded Retractor?

The Urology Lobster Expanded Retractor is a self-retaining retraction system engineered to maintain static field exposure during urological surgical procedures. Establishing access to deep pelvic or abdominal structures requires rigid, table-anchored support that holds tissue back without crowding the surgical corridor.

The base structure features a Lobster Table Clamp with Vertical Post & Frame Coupler, which anchors directly to the operating table rail. The Lobster Frame attaches to this vertical support, providing the main mounting axis over the patient. A Lobster Hinged Extension Arm integrates into the framework to assist in positioning retractor components around the surgical site.

To support variable anatomical approaches, the expanded configuration includes eight Lobster Retractor Clamps and eleven specialized retractor blades:

• Swivel Retractors: Mayo, Deaver, Harrington Sweetheart, Harrington, Fence, and Splanchnic retractors

• Malleable Retractors: Two perforated malleable swivel retractors and a dedicated Marshall Malleable Bladder Retractor

Each retractor component mounts into the retractor clamps, allowing the surgical team to adjust blade angle, depth, and spatial orientation relative to the surgical field.

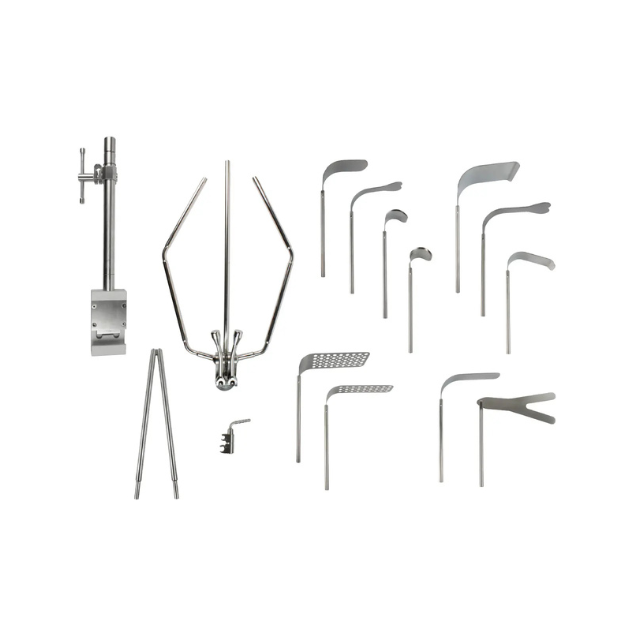

Urology Lobster Expanded Retractor Components

The Urology Lobster Expanded Retractor is supplied as a complete set containing the following structural mounting components, retractor clamps, specialized blades, and containment hardware:

Quantity	Component	Dimensions
8	Lobster Retractor Clamp	—
1	Lobster Table Clamp with Vertical Post & Frame Coupler	—
1	Lobster Hinged Extension Arm	—
1	Lobster Frame	—
2	Lobster Mayo Swivel Retractor	2″ × 2″
2	Lobster Mayo Swivel Retractor	2¾″ × 2″
1	Lobster Deaver Swivel Retractor	2¾″ × 4½″
1	Lobster Deaver Swivel Retractor	1½″ × 6″
1	Lobster Harrington Sweetheart Retractor	2″ × 5″
1	Lobster Harrington Retractor	2.5″ × 6″
1	Lobster Malleable Swivel Retractor (Perforated)	2″ × 6½″
1	Lobster Malleable Swivel Retractor (Perforated)	3″ × 6½″
1	Lobster Marshall Malleable Bladder Retractor, Swivel	3″ × 6″
1	Lobster Fence Swivel Retractor	4″ × 6″
1	Lobster Splanchnic Swivel Retractor	2″ × 4½″
1	Sterilization Box	—

Frame and Mounting Components

The structural base of the Urology Lobster Expanded Retractor consists of four main frame and attachment elements:

Lobster Retractor Clamps

The set includes eight dedicated retractor clamps that mount onto the Lobster Frame and extension arm. These clamps hold the shafts of individual swivel and malleable retractors, securing blade position once adjusted by the surgical team.

Lobster Table Clamp with Vertical Post & Frame Coupler

Anchors the entire retractor framework directly to the side rail of the operating table. The vertical post elevates the frame above the operative site, while the frame coupler links the post securely to the main retractor frame.

Lobster Hinged Extension Arm

Functions as an adjustable extension component within the framework, assisting in extending or angling retractor mounting points around the surgical field.

Lobster Frame

Serves as the primary structural mounting geometry surrounding the surgical area. It provides a rigid perimeter for attaching multiple clamps and positioning retractor blades across the incision.

Retractor Options Included in the System

The set incorporates eleven retractor blades spanning swivel, malleable, and dedicated urological configurations:

Lobster Mayo Swivel Retractors

• 2″ × 2″ (Quantity: 2)

• 2¾″ × 2″ (Quantity: 2)

Featuring firm, broad blade profiles, Mayo-style swivel retractors support primary muscle and dense soft tissue retraction along the border of the surgical corridor.

Lobster Deaver Swivel Retractors

• 2¾″ × 4½″ (Quantity: 1)

• 1½″ × 6″ (Quantity: 1)

Designed with a curved blade profile to provide deeper curved soft tissue retention within the surgical field.

Lobster Harrington Sweetheart Retractor

• 2″ × 5″ (Quantity: 1)

Features a heart-shaped distal blade structure designed for deep tissue holding.

Lobster Harrington Retractor

• 2.5″ × 6″ (Quantity: 1)

Provides an extended 6-inch reach with a 2.5-inch width for deep field soft tissue retraction.

Lobster Malleable Swivel Retractors (Perforated)

• 2″ × 6½″ (Quantity: 1)

• 3″ × 6½″ (Quantity: 1)

Formable, perforated blade structures that allow hand-contouring to specific anatomical structures or patient contours prior to securing in a frame clamp.

Lobster Marshall Malleable Bladder Retractor, Swivel

• 3″ × 6″ (Quantity: 1)

A specialized malleable blade component designated for bladder retraction, featuring a 3-inch width and 6-inch reach with swivel attachment.

Lobster Fence Swivel Retractor

• 4″ × 6″ (Quantity: 1)

Incorporates a wide 4″ × 6″ slotted blade configuration to manage broad soft tissue surface areas.

Lobster Splanchnic Swivel Retractor

• 2″ × 4½″ (Quantity: 1)

Configured to hold back soft tissue structures in deeper abdominal or pelvic corridors.

What Is the Urology Lobster Expanded Retractor Used For?

The Urology Lobster Expanded Retractor is engineered to provide self-retaining, table-mounted field exposure during urological surgical procedures.

The system supports surgical exposure through:

• Table-Mounted Base: Anchoring to the table rail transfers holding force away from surgical personnel, maintaining a static frame structure.

• Configurable Blade Layout: The selection of Mayo, Deaver, Harrington, Fence, Splanchnic, and malleable options allows surgical teams to select blade geometries matching anatomical depth requirements.

• Malleable Adaptation: Hand-formable perforated blades and the Marshall bladder retractor allow blade shapes to be contoured to patient anatomy.

• Bladder-Specific Component: Includes a dedicated Marshall Malleable Bladder Retractor (3″ × 6″) within the standard kit layout.

• Organized Kit Layout: All 11 blades, 8 clamps, frame, extension arm, table clamp assembly, and sterilization box are supplied as a complete, unified system.

Why Does the Expanded Configuration Matter?

The expanded component configuration provides surgical teams with a comprehensive array of hardware options within a single system:

• Eight Retractor Clamps: Enables simultaneous multi-point blade mounting around the surgical perimeter.

• Varied Blade Profiles: Provides options ranging from rigid Mayo blades to deep Deaver curves, broad Fence structures, and malleable blades.

• Dual Malleable Sizes: Perforated malleable blades (2″ × 6½″ and 3″ × 6½″) give options for custom blade shaping.

• Specialized Bladder Retraction: Includes the 3″ × 6″ Marshall swivel blade as a standard part of the component layout.

How the Urology Lobster Expanded Retractor Is Configured

System mounting and component assembly follow a standard structural sequence prior to intraoperative use:

1. Table Mounting: Secure the Lobster Table Clamp firmly onto the side rail of the operating table aligned with the target surgical level.

2. Post and Frame Attachment: Insert the vertical post into the table clamp, connect the frame coupler, and mount the Lobster Frame over the operative site.

3. Extension Arm Placement: Attach the Lobster Hinged Extension Arm to the frame if additional positioning reach is required.

4. Clamp Installation: Position the required number of Lobster Retractor Clamps (up to 8) onto the frame and extension arm.

5. Blade Selection: Select the appropriate retractor blades (Mayo, Deaver, Harrington, Malleable, Marshall, Fence, or Splanchnic) matching the surgical approach and tissue depth.

6. Retractor Positioning: Insert the selected retractor shafts into the retractor clamps, position the blades to achieve the required exposure, and tighten the clamps to secure placement.

7. Pre-Use Verification: Check that all table clamp locks, frame connections, extension arm joints, and blade clamps are fully fastened before proceeding.

Assembly and use should be performed by trained healthcare professionals according to the manufacturer’s instructions, hospital protocols, and the requirements of the surgical procedure.

Key Features

• Expanded Lobster retractor system configured for urological surgical exposure

• Heavy-duty table clamp with vertical post and frame coupler

• Lobster frame with integrated hinged extension arm

• 8 dedicated Lobster Retractor Clamps for multi-point positioning

• 11 total retractor blades across swivel, malleable, and urology-oriented geometries

• Multiple Mayo and Deaver swivel retractor sizes included

• Harrington and Harrington Sweetheart retractor options included

• Two perforated malleable swivel retractors for custom contouring

• Dedicated 3″ × 6″ Marshall Malleable Bladder Retractor included

• Broad Fence swivel retractor and deep Splanchnic swivel retractor included

• Heavy-duty sterilization box included for complete set containment

Complete Set Overview

The Urology Lobster Expanded Retractor is supplied as a complete 23-piece unified system (plus sterilization box). By combining a table-anchored vertical support, main structural frame, hinged extension arm, 8 frame clamps, and 11 specialized retractor blades, this set provides healthcare facilities with a complete component package for urological surgical retraction in one organized kit.

Why Choose Retractor Maker?

Retractor Maker is an established manufacturer focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Established in 2023, our plant in Pakistan dedicates its facility and machinery specifically to surgical retractors.

• Skilled Workforce: Supported by an experienced workforce of over 50 instrument technicians and engineers.

• Proven Supply Network: We have supplied over 500 satisfied healthcare partners, procurement teams, and distributors globally.

• Reliable Fulfillment: We maintain an average production and order dispatch lead time of 12 to 16 days for wholesale shipments.

Frequently Asked Questions (FAQS)

What is the Urology Lobster Expanded Retractor?

It is a complete, table-mounted surgical retractor system featuring a frame, extension arm, 8 clamps, and 11 specialized retractor blades designed for urological surgical exposure.

What is the Urology Lobster Expanded Retractor used for?

It is used to establish and maintain stable, hands-free soft tissue retraction and field exposure during urological surgical procedures.

What components are included in the complete set?

The set includes 1 Table Clamp with Vertical Post & Frame Coupler, 1 Frame, 1 Hinged Extension Arm, 8 Retractor Clamps, 11 Retractor Blades (Mayo, Deaver, Harrington, Malleable, Marshall, Fence, Splanchnic), and 1 Sterilization Box.

How many Lobster Retractor Clamps are included?

The set includes 8 dedicated Lobster Retractor Clamps for securing retractor blades around the frame and extension arm.

Does the system include a bladder retractor?

Yes. The set includes 1 Lobster Marshall Malleable Bladder Retractor, Swivel, measuring 3″ × 6″.

What Mayo Swivel Retractor sizes are included?

The set includes four Mayo Swivel Retractors: two 2″ × 2″ blades and two 2¾″ × 2″ blades.

What Deaver Swivel Retractor sizes are included?

The set includes two Deaver Swivel Retractors: one 2¾″ × 4½″ blade and one 1½″ × 6″ blade.

Does the system include malleable retractors?

Yes. The set includes two perforated malleable swivel retractors (2″ × 6½″ and 3″ × 6½″) along with the malleable Marshall bladder retractor (3″ × 6″).

Does the system include a sterilization box?

Yes. The complete system is supplied inside a heavy-duty Sterilization Box for organized storage, transport, and hospital reprocessing.

Who is the system intended for?

It is intended for use by trained healthcare professionals, urologists, and surgical teams in hospitals, surgery centers, and clinical facilities.
