Vascular Lobster System

The Vascular Lobster System is a specialized, table-mounted surgical retraction platform configured to support surgical field exposure during vascular procedures. Combining a central structural frame with table-mounting components, eight mounting clamps, and a selection of specialized swivel and malleable retractor blades, this system provides operating teams with a stable, hands-free retraction framework over the surgical site.

Retractor Maker manufactures and supplies the Vascular Lobster System to hospital procurement departments, vascular surgery centers, medical equipment distributors, healthcare importers, and OEM partners globally. Supplied as a complete set inside a heavy-duty sterilization box, this platform delivers structured component configuration for specialized surgical access.

What Is the Vascular Lobster System?

The Vascular Lobster System is a self-retaining retraction platform engineered to maintain static field exposure during vascular surgical procedures. Establishing clear physical and visual access to deep vascular pathways requires rigid, table-anchored support that holds tissue back without crowding the surgical corridor.

The foundation of the system is the Lobster Table Clamp with Vertical Post & Frame, which anchors directly to the operating table side rail. The main Lobster Frame mounts to this vertical support structure, forming a perimeter framework over the patient. Eight independent Lobster Retractor Clamps attach around the frame to secure individual retractor blades in position.

Vascular Lobster System Components

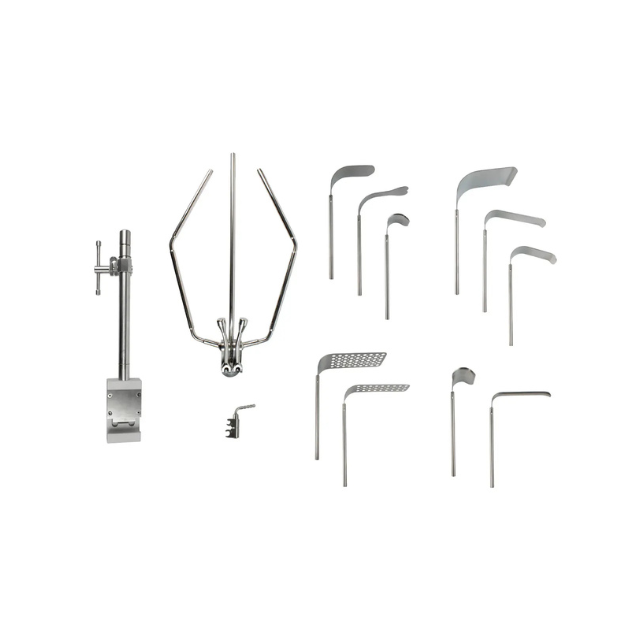

The Vascular Lobster System is supplied as a complete set containing the following structural mounting components, retractor clamps, specialized blades, and containment hardware:

Quantity	Component	Dimensions
1	Lobster Frame	—
1	Lobster Table Clamp with Vertical Post & Frame	—
8	Lobster Retractor Clamp	—
2	Lobster Mayo Swivel Retractor	¾″ × 2″
1	Lobster Mayo Swivel Retractor	3½″ × 2″
1	Lobster Fence Swivel Retractor	4″ × 6″
1	Lobster Splanchnic Swivel Retractor	2″ × 4½″
1	Lobster Splanchnic Swivel Retractor	2″ × 6″
2	Lobster Renal Swivel Retractor	1″ × 6″
1	Lobster Deaver Swivel Retractor	¾″ × 4½″
1	Lobster Malleable Swivel Retractor (perforated)	2″ × 6½″
1	Lobster Malleable Swivel Retractor (perforated)	3″ × 6½″
1	Lobster Harrington Sweetheart Retractor	2″ × 5″
1	Sterilization Box	—

Frame and Mounting Components

The structural framework of the Vascular Lobster System relies on three primary frame and mounting elements:

Lobster Frame

Functions as the primary structural mounting geometry surrounding the surgical area. It provides the rigid perimeter needed to attach retractor clamps and position blades around the incision.

Lobster Table Clamp with Vertical Post & Frame

Anchors the entire retractor assembly directly to the operating table rail. The vertical post elevates the frame above the operative site and links to the main Lobster Frame.

Lobster Retractor Clamps

The set includes eight dedicated retractor clamps that mount onto the Lobster Frame. These clamps hold the shafts of individual swivel and malleable retractors, locking blade position once set by the surgical team.

Swivel Retractor Options

The set includes ten retractor blades spanning seven blade geometries to match different anatomical requirements:

Lobster Mayo Swivel Retractors

• ¾″ × 2″ (Quantity: 2)

• 3½″ × 2″ (Quantity: 1)

Featuring firm, broad profiles, Mayo-style swivel retractors provide primary muscle and dense soft tissue retraction near the boundary of the surgical corridor.

Lobster Fence Swivel Retractor

• 4″ × 6″ (Quantity: 1)

Incorporates a wide 4″ × 6″ slotted blade configuration designed to hold back larger soft tissue mass across a broad surface area.

Lobster Splanchnic Swivel Retractors

• 2″ × 4½″ (Quantity: 1)

• 2″ × 6″ (Quantity: 1)

Configured to hold back soft tissue structures across deeper abdominal or retroperitoneal corridors.

Lobster Renal Swivel Retractors

• 1″ × 6″ (Quantity: 2)

Slender 1-inch width blades with a 6-inch reach depth designated for targeted retraction in deep or narrow operative fields.

Lobster Deaver Swivel Retractor

• ¾″ × 4½″ (Quantity: 1)

Designed with a curved blade profile to provide curved soft tissue retention within the surgical corridor.

Lobster Malleable Swivel Retractors (perforated)

• 2″ × 6½″ (Quantity: 1)

• 3″ × 6½″ (Quantity: 1)

Formable, perforated blade structures that allow hand-contouring to specific anatomical structures or patient contours prior to securing in a frame clamp.

Lobster Harrington Sweetheart Retractor

• 2″ × 5″ (Quantity: 1)

Features a heart-shaped distal blade structure designed for deep tissue holding.

What Is the Vascular Lobster System Used For?

The Vascular Lobster System is engineered to provide self-retaining, table-mounted field exposure during vascular surgical procedures.

Key functional aspects of the system include:

• Table-Mounted Support: Anchoring directly to the table rail transfers holding force away from surgical personnel, maintaining a static frame structure over the operative field.

• Configurable Framework: Eight retractor clamps allow multi-point perimeter blade placement tailored to the surgical approach.

• Multiple Blade Profiles: Includes Mayo, Fence, Splanchnic, Renal, Deaver, Harrington Sweetheart, and malleable blades to match specific exposure requirements.

• Malleable Adaptation: Perforated malleable blades permit hand-shaping to conform to unique anatomical boundaries.

• Organized Complete Set: All ten retractor blades, eight clamps, frame, table-mounting assembly, and sterilization box are supplied as a single, organized system.

Why Does the Vascular Lobster System Include Multiple Retractor Types?

Operating room teams encounter varying anatomical depths, tissue characteristics, and spatial dimensions during vascular procedures. Supplying several retractor designs and sizes within one complete set provides clinical teams with the necessary component options to adapt their setup:

• Narrow vs. Broad Blades: Slender 1-inch Renal blades allow access in confined pathways, while the 4″ × 6″ Fence retractor manages wider tissue boundaries.

• Rigid vs. Malleable Blades: Standard swivel blades maintain a rigid profile, whereas perforated malleable blades can be hand-contoured to individual patient contours.

• Variable Reach Lengths: Blade reach options extend from 2 inches up to 6½ inches to accommodate both superficial and deep anatomical layers.

How the Vascular Lobster System Is Configured

System mounting and component assembly follow a standard structural sequence prior to intraoperative use:

1. Table Mounting: Secure the Lobster Table Clamp firmly onto the side rail of the operating table aligned with the target surgical level.

2. Post and Frame Attachment: Position the vertical post and connect the frame assembly over the operative site at the appropriate height.

3. Clamp Installation: Position the required number of Lobster Retractor Clamps (up to 8) along the frame perimeter.

4. Blade Selection: Select the appropriate swivel or malleable retractors (Mayo, Fence, Splanchnic, Renal, Deaver, Malleable, or Harrington Sweetheart) matching the surgical approach and tissue depth.

5. Retractor Positioning: Insert the selected retractor shafts into the retractor clamps, position the blades to achieve the necessary field exposure, and tighten the clamps to secure placement.

6. Pre-Use Verification: Check that all table clamp locks, frame connections, clamp screws, and retractor blades are securely fastened prior to proceeding.

Assembly and use should be performed by trained healthcare professionals according to the manufacturer’s instructions, hospital protocols, and the requirements of the surgical procedure.

Key Features

• Complete Vascular Lobster System configured for vascular surgical exposure

• Central structural Lobster Frame

• Lobster Table Clamp with Vertical Post & Frame for stable table mounting

• 8 dedicated Lobster Retractor Clamps for multi-point blade placement

• 10 total retractor blades across 7 distinct blade styles

• Mayo Swivel Retractors in 2 size options

• 4″ × 6″ Fence Swivel Retractor included

• Splanchnic Swivel Retractors in 2 size options

• Two 1″ × 6″ Renal Swivel Retractors included

• Curved ¾″ × 4½″ Deaver Swivel Retractor included

• Two perforated Malleable Swivel Retractors for custom blade contouring

• 2″ × 5″ Harrington Sweetheart Retractor included

• Heavy-duty sterilization box included for complete set containment

Complete Set Overview

The Vascular Lobster System is delivered as a 20-piece unified system (plus sterilization box). By combining a table-anchored vertical support, main structural frame, 8 retractor clamps, and 10 specialized swivel and malleable retractor blades, this set equips healthcare facilities with a complete component package for vascular surgical exposure in one organized kit.

Why Choose Retractor Maker?

Retractor Maker is an established manufacturer focused exclusively on surgical retractor systems:

• Specialized Manufacturing: Established in 2023, our plant in Pakistan dedicates its facility and machinery specifically to surgical retractors.

• Skilled Workforce: Supported by an experienced workforce of over 50 instrument technicians and engineers.

• Proven Supply Network: We have supplied over 500 satisfied healthcare partners, procurement teams, and distributors globally.

• Reliable Fulfillment: We maintain an average production and order dispatch lead time of 12 to 16 days for wholesale shipments.

Frequently Asked Questions (FAQs)

What is the Vascular Lobster System?

It is a complete, table-mounted surgical retractor system featuring a frame, mounting post, table clamp, 8 retractor clamps, 10 specialized retractor blades, and a sterilization box designed for vascular surgical exposure.

What is the Vascular Lobster System used for?

It is used to establish and maintain stable, hands-free soft tissue retraction and field exposure during vascular surgical procedures.

What components are included in the complete system?

The set includes 1 Lobster Frame, 1 Table Clamp with Vertical Post & Frame, 8 Retractor Clamps, 10 Retractor Blades (Mayo, Fence, Splanchnic, Renal, Deaver, Malleable, Harrington Sweetheart), and 1 Sterilization Box.

How many Lobster Retractor Clamps are included?

The set includes eight dedicated Lobster Retractor Clamps for securing retractor blades around the frame perimeter.

What Mayo Swivel Retractors are included?

The system includes three Mayo Swivel Retractors: two measuring ¾″ × 2″ and one measuring 3½″ × 2″.

What Splanchnic Swivel Retractors are included?

The system includes two Splanchnic Swivel Retractors: one measuring 2″ × 4½″ and one measuring 2″ × 6″.

What Renal Swivel Retractors are included?

The system includes two Renal Swivel Retractors, each measuring 1″ × 6″.

Does the system include malleable retractors?

Yes. The set includes two perforated Lobster Malleable Swivel Retractors measuring 2″ × 6½″ and 3″ × 6½″ for custom hand-contouring.

Does the system include a sterilization box?

Yes. The complete system is supplied inside a heavy-duty Sterilization Box for organized storage, transport, and hospital reprocessing.

Who is the system intended for?

It is intended for use by trained healthcare professionals, vascular surgeons, and surgical teams in hospitals, surgery centers, and clinical facilities.

How can I request a quotation?

Hospitals, medical device distributors, procurement departments, and OEM buyers can request direct pricing and availability by contacting Retractor Maker through our website.
