Bookwalter StrongArm Basic General Retractor System

The Bookwalter StrongArm Basic General Retractor System is a modern table-mounted, self-retaining retractor system designed for open general surgical procedures. While classic table-anchored systems depend on a series of rigid vertical and horizontal bars locked manually at right angles, this configuration utilizes an advanced, fully articulating arm system. This ensures that operating room teams can position the perimeter frame with fluid, multi-axis movement before locking the entire assembly rigidly into place.

By replacing the traditional fixed-height field post with the Height-Adjustable StrongArm PLUS Holder and Positioner, surgeons can adjust the retractor height and position much more easily during surgery. This design improves operating room flexibility, enhances surgical access, and simplifies positioning without compromising stability. We forge this entire assembly from premium, non-magnetic stainless steel at our manufacturing facility in Pakistan, supplying direct wholesale shipments to international hospital distributors, procurement executives, and global surgical device brands.

What Is the Bookwalter StrongArm Basic General Retractor System?

The Bookwalter StrongArm Basic General Retractor System is a highly adaptable self-retaining surgical exposure system configured with a modern articulating mount. It represents a substantial upgrade over traditional right-angled support bars.

The system mounts directly to the surgical table rail using a heavy-duty clamp, supporting a multi-jointed mechanical positioner arm. This positioner arm connects to a standard medium oval ring frame. By loosening a centralized tightening control wheel, the surgical team can fluidly raise, lower, rotate, or angle the entire frame directly over the wound. Once locked, the frame becomes an absolute, immobile boundary, allowing standard tilt ratchets to hold back abdominal muscles and internal tissues cleanly without any structural shifting.

What Makes the StrongArm PLUS System Different?

Traditional self-retaining retractors rely on a vertical stainless steel rod connected to a horizontal bar. If a surgeon needs to lift the ring frame to gain deeper pelvic visibility or lower it to clear patient contours, an assistant must manually hold the heavy framework, loosen the post coupler, slide the bar up or down, and re-tighten the screw. This process introduces minor frame drift and interrupts the surgical workflow.

The StrongArm PLUS system eliminates these bottlenecks entirely. Its integrated mechanical joints flex smoothly when released, providing infinite height adjustments within its mechanical radius. This allows the frame to be angled asymmetrically over irregular patient body contours instantly, without needing to disassemble or rebuild the overhead support layout.

How the StrongArm Basic General Retractor System Works

The Top Mount StrongArm PLUS Holder, heavy-duty rail clamp, oval ring, tilt ratchet mechanisms, and interchangeable blades work together to provide stable, hands-free tissue retraction:

• • Single-Point Control: The heavy-duty rail clamp mounts securely onto the table side rails over the sterile drapes. The base of the StrongArm PLUS holder slots into this block.

  • Articulating Framework Aligntment: By turning the handle on the StrongArm column, the multi-jointed positioner arm is unlocked. The attached medium oval ring can then be raised, lowered, or tilted fluidly to center it precisely over the incision.

  • Rigid Frame Locking: Tightening the central mechanism locks all the articulating arm joints simultaneously, turning the flexible column into a rock-solid, non-yielding anchor frame.

  • Blade Tensioning: Standard bariatric and general surgery blades—including Balfour, Harrington, and malleable designs—are placed inside the cavity. Their flat shafts slot directly into the slide-on tilt ratchets.

  • Exposure Optimization: Engaging the tilt ratchets pulls the muscle walls outward and downward, creating a highly stable, hands-free field of visibility throughout lengthy procedures.

Complete StrongArm Kit Components and Specifications

Our factory supplies this complete system with the foundational articulating arm assembly, standard medium oval ring frame, multi-angle tilt ratchets, and specialized abdominal blades.

Surgical Specialties and Clinical Applications

The high positioning flexibility and quick setup of the StrongArm basic configuration make it a highly requested platform across several major surgical disciplines:

• General Surgery: Deployed widely during exploratory laparotomies, large hernia repairs, and abdominal wall closures.

• Gastrointestinal & Colorectal Surgery: Maintains a clear, hands-free window for colectomies, gastric bypasses, and appendectomies.

• Hepatobiliary & Upper Abdominal Surgery: The Harrington sweetheart blade gently retracts the liver, while the articulating arm allows the oval ring to be tilted upward under the rib cage to expose the biliary tract.

• Trauma Surgery: Essential for fast-access damage control laparotomies, where quick setup and efficient blade positioning save critical minutes.

• Vascular Surgery: Provides highly stable, continuous exposure around major abdominal blood vessels during aortic reconstructions.

Advantages of the StrongArm PLUS Design

• Height-Adjustable Positioning: Allows the surgical ring frame to be raised or lowered fluidly within seconds, responding immediately to moving anatomical depth requirements.

• Secure Rail-Mounted Attachment: Heavy-duty base clamps prevent any frame listing or drifting, even under maximum lateral abdominal muscle force.

• Quick Setup: Reduces operating room preparation time significantly by replacing complex multi-bar frameworks with a single articulating column.

• Stable Retraction Throughout the Procedure: Once the centralized control wheel is tightened, the articulating joints stay completely motionless, ensuring zero slippage during multi-hour surgeries.

• Improved Ergonomics for the Surgical Team: Eliminates bulky crossbars and overhead posts, leaving the surgical workspace open and unobstructed for the surgeon.

• Efficient Blade Positioning: Fully compatible with standard sliding tilt ratchets and varied surgical blades, allowing the team to swap and angle attachments rapidly.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every element of our StrongArm retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that the multi-jointed positioner arm, locking gears, and flat blade shafts do not flex or slip under physical tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The entire system is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no degradation of internal joint locks or ratchet performance over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad catalog of general surgical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Sourcing Efficiency: Sourcing your retractor systems directly from our facility in Sialkot, Pakistan, lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our ring paths, tilt ratchets, and blade slots are manufactured to meet standard industry-recognized dimensions, ensuring they integrate with your existing hospital inventory.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the advantage of the StrongArm PLUS holder over a traditional fixed post?

The StrongArm PLUS holder provides smooth, height-adjustable, multi-axis articulating movement. This allows the surgical ring frame to be repositioned, tilted, or raised instantly mid-procedure without loosening and rebuilding a multi-bar post layout manually.

Are standard Bookwalter blades compatible with this StrongArm system?

Yes. While the mounting column uses an advanced articulating positioner arm, the working ring frame utilizes standard dimensions, ensuring complete compatibility with all standard sliding ratchets and flat-slotted surgical blades.

Is the entire articulating StrongArm column autoclavable?

Yes. The entire assembly is made of premium surgical-grade stainless steel and is fully compatible with standard hospital pre-vacuum steam sterilization cycles (134∘C / 273∘F).

What is included in the basic general retractor set?

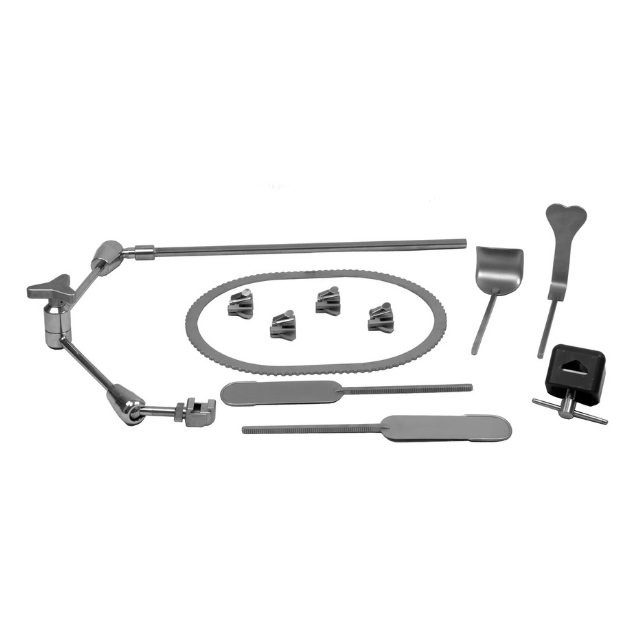

The complete set includes a Top Mount StrongArm PLUS holder, a medium oval ring frame, a heavy-duty table rail clamp, four tilt ratchets, a Balfour blade, a Harrington sweetheart blade, two malleable blades, and a perforated organizer sterilization box.

Can we buy individual replacement parts or only complete kits?

We supply both complete pre-configured retractor systems and individual replacement components (such as separate StrongArm holders, heavy-duty rail clamps, oval rings, and individual blades) to help you replenish existing hospital trays.

Can this system be used for deep bariatric procedures?

The basic general retractor set is optimized for standard open abdominal procedures. For extremely high-BMI bariatric surgery, we recommend using our specialized bariatric sets equipped with 18-inch posts and extra-deep 8-inch blades.

How do I maintain the articulating joints on the StrongArm holder?

Ensure your sterile processing department washes the column with neutral-pH enzymatic detergents, rinses thoroughly with demineralized water, and applies a water-soluble, steam-permeable instrument lubricant to the joint hinges periodically to preserve smooth articulation.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

Are the instruments supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.

Do you offer custom laser etching for branding?

Yes. We run a fully capable contract OEM division. We can laser-etch your corporate logo, custom part numbers, or specific department tracking codes directly onto the steel surface.
