Bookwalter GYN Retractor System

The Bookwalter GYN Retractor System is a specialized, table-mounted self-retaining retractor system designed to provide stable, hands-free exposure during complex vaginal, pelvic floor, and perineal surgeries. Unlike standard abdominal retractor packages, this configuration is optimized for the unique physical angles and tight workspaces encountered in gynecological and urogynecological procedures.

By attaching directly to the operating table rails, the system provides reliable mechanical traction from below. This eliminates the need for surgical assistants to manually hold heavy vaginal or pelvic blades in crowded spaces. We manufacture this highly specialized GYN kit from surgical-grade, non-magnetic stainless steel at our production facility in Pakistan, delivering complete packages directly to global medical distributors, hospital groups, and OEM private-label partners.

What Is the Bookwalter GYN Retractor System?

The Bookwalter GYN Retractor System is a specialized vaginal and perineal self-retaining retractor system that has been used by gynecologists and pelvic surgeons for many years. It represents a highly targeted configuration of the classic Bookwalter platform. Rather than using large, flat abdominal rings designed to sit on top of the patient’s stomach, this GYN set uses a specialized notched perineal ring.

This perineal ring features a curved, open-sided profile that contours closely around the patient’s perineum when positioned in the lithotomy stance. The notched borders of the ring provide secure, slip-resistant anchor points for specialized vaginal lateral and posterior blades. Secured by a rigid vertical post and adjustable horizontal bars, the system allows surgeons to achieve deep, clear visual access into the vaginal canal and pelvic cavity.

Why It Is Designed for Gynecologic Surgery

Surgical access during vaginal hysterectomies or pelvic floor reconstructions is notoriously challenging because surgeons must operate through a narrow, deep canal. Standard handheld retractors easily slip, block the light, and crowd the hands of the operating team.

The Bookwalter GYN system resolves these challenges through several deliberate design choices:

• Perineal Approach Optimization: The horizontal bar and post assembly allow the ring frame to be lowered and angled directly below the pubic bone, keeping the frame completely clear of the surgeon’s hands and instruments.

• Targeted Retraction Forces: Instead of using wide, blunt abdominal blades, this GYN set features thin, curved vaginal lateral and posterior blades. These blades gently retract the vaginal walls laterally and posteriorly to maximize the diameter of the canal.

• Multi-Angle Blade Angling: Working in deep pelvic spaces requires downward leverage. The included tilt ratchet mechanisms let the surgical team adjust the downward pitch of the blades, keeping the bladder and rectal walls safely out of the surgical field.

Complete GYN Kit Components and Specifications

Our factory supplies this specialized GYN set with all the necessary structural post attachments, notched frames, and specialized pelvic blades required for immediate clinical use.

How the Gynecology Retractor System Works

The structural elements of the Bookwalter GYN set work together to create a rigid, customizable frame tailored for pelvic procedures:

1. 1. Rigid Base Setup: The post coupler clamps onto the side rail of the operating table. The 12″ vertical field post inserts into the coupler, establishing a rigid overhead support column that remains completely stable throughout the surgery.

   2. Horizontal Bar Extension: The horizontal bar connects to the vertical post, extending over the patient to allow precise positioning of the ring and blades. This bar is adjusted to center the frame directly over the perineum.

   3. Notched Perineal Ring Attachment: The notched perineal ring connects to the horizontal bar. Its unique notched design provides secure, slip-free anchor points for the sliding ratchets, keeping them from shifting under the heavy lateral forces required to hold open the vaginal walls.

   4. Blade Positioning and Tensioning: The vaginal lateral, vaginal posterior, and curved Deaver blades are placed inside the canal. Their flat shafts slot directly into the tilt ratchets.

   5. Multi-Angle Exposure: Using the tilt ratchets, the surgeon can pitch the blades downward or laterally. This provides stable exposure and improved access throughout the procedure, keeping the bladder and rectal walls retracted and protected.

Surgical Specialties and Clinical Applications

This specialized GYN system is highly valued by gynecologists, urogynecologists, and pelvic reconstructive surgeons across several main procedures:

• Vaginal Hysterectomy: Keeps the vaginal canal open and stable, allowing the surgeon to visualize, clamp, and ligate the uterine vessels cleanly.

• Pelvic Floor Reconstruction: Provides consistent bilateral retraction during deep pelvic floor adjustments.

• Cystocele and Rectocele Repair: Safely holds back the anterior bladder wall or posterior rectal wall, allowing the surgeon to place sutures accurately.

• Vaginal Prolapse Repair: Secures the deep exposure required to suspend the vaginal vault to pelvic ligaments.

• Urogynecology & Perineal Procedures: Provides clear visibility around the urethra and perineal tissues during sling operations or deep reconstructive repairs.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our Bookwalter GYN set is forged from premium medical-grade, non-magnetic stainless steel. This high-tensile alloy ensures that the vertical posts, horizontal bars, and specialized thin blades do not flex, bend, or slide under continuous physical tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The GYN set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or joint wear over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single category.

• Direct Sourcing Efficiency: Sourcing directly from our factory in Pakistan lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Compatibility: We manufacture our GYN posts, bars, notched rings, and blades to standard industry-recognized dimensions, ensuring they integrate with your existing hospital trays.

• Reliable Lead Times: Backed by a skilled workforce of over 50 employees, we maintain a highly reliable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter GYN Retractor System used for?

The Bookwalter GYN Retractor System is a table-mounted, self-retaining retractor designed to provide stable exposure during vaginal, perineal, pelvic floor, and urogynecological surgeries.

What is the purpose of the notched perineal ring?

The notched perineal ring features a curved, open shape that fits closely around the perineum. The notches on its borders prevent the sliding tilt ratchets from slipping under heavy lateral loads, ensuring stable retraction.

Are GYN blades compatible with standard Bookwalter abdominal systems?

Yes. Our GYN blades feature standard flat slotted shafts, allowing them to be used with standard Bookwalter posts, horizontal flex bars, and sliding ratchets.

What is included in the Bookwalter GYN set?

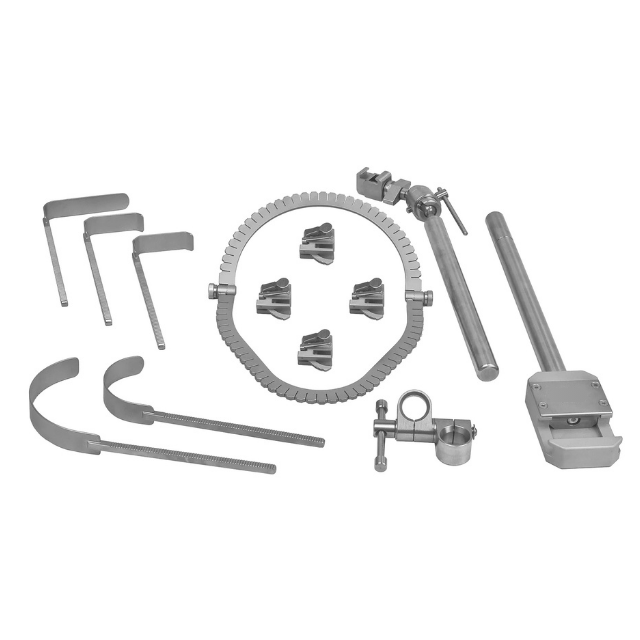

The complete set includes a vertical post, a post coupler, a horizontal bar, four tilt ratchets, a notched perineal ring, two vaginal lateral blades, a vaginal posterior blade, two curved Deaver blades, and a perforated sterilization organizer box.

Is the entire GYN system autoclavable?

Yes. All components are made of premium surgical stainless steel and are fully compatible with standard high-temperature gravity and pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement GYN blades or notched rings?

Yes. We supply individual GYN components (including vaginal posterior blades, notched perineal rings, and tilt ratchets) to help you replace missing items from existing hospital trays.

Why does the set include tilt ratchets instead of standard ratchets?

Vaginal and pelvic reconstructive procedures require downward tension. Tilt ratchets feature a gear hinge that lets the surgical team tilt the blade tips downward, keeping the bladder and rectal walls retracted and protected.

What is the average manufacturing lead time for a wholesale GYN set order?

Our average factory production, inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all joint areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
