Bookwalter Perineal Surgery Retractor

The Bookwalter Perineal Surgery Retractor is a table-mounted, self-retaining surgical retractor system designed specifically to provide stable exposure during perineal, anorectal, pelvic floor, gynecological, and reconstructive procedures. While standard abdominal retractor systems are built to sit on top of the patient’s abdomen, this configuration is engineered to handle the tight, downward physical angles of perineal and pelvic floor surgery.

By mounting directly to the operating table, the system provides reliable mechanical traction from below. This allows the surgeon to work without the physical distraction of handheld retractors or assistant obstruction in the immediate field. We manufacture this highly specialized perineal kit from medical-grade, non-magnetic stainless steel at our facility in Pakistan, shipping complete sets directly to global distributors, urological and colorectal specialists, and hospital networks.

What Is the Bookwalter Perineal Surgery Retractor?

The Bookwalter Perineal Surgery Retractor is a specialized table-mounted, self-retaining surgical retractor system configured specifically for perineal, pelvic floor, colorectal, and gynecological procedures. It represents a highly targeted configuration of the Bookwalter platform.

At the core of this system is a specialized notched perineal ring. This frame is designed to contour closely around the patient’s perineum while in the lithotomy position. Supported by a rigid vertical post, horizontal bars, and an extension bar, the system projects the ring frame directly over the surgical site from below. This keeps the frame completely clear of the surgeon’s hands and instruments while allowing specialized, thin vaginal and posterior blades to retract tissue symmetrically.

Why Choose a Dedicated Perineal Retractor System?

Operating within the perineal and anorectal spaces presents extreme spatial challenges. The visual field is narrow and deep, and even minor tissue shifting can obstruct the surgeon’s view of delicate structures like the urethra, rectum, or pelvic floor muscles.

Our dedicated perineal system is engineered to resolve these exact issues:

• Hands-Free Stability: Replaces handheld retractors completely, eliminating assistant hand fatigue in small workspaces.

• Downward Exposure: The multi-angle tilt ratchets allow surgeons to pitch narrow blades deep into the pelvic recess to isolate tissues safely.

• Low-Profile Design: The split frame and extension bars project the ring over the pelvic outlet, keeping the mechanical supports flat and away from the surgeon’s operational path.

Complete Perineal Set Components and Specifications

Our factory supplies this specialized perineal kit with all the necessary vertical posts, notched frames, and thin-profile blades required for immediate pelvic floor and anorectal setups.

Flexible Mounting Options and Perineal Ring Design

Operating within the perineal and lower pelvic cavities requires different angles of approach depending on patient positioning, table style, and surgeon preference. To accommodate these diverse clinical needs, our system features flexible mounting options and a highly specialized ring design.

Flexible Mounting Options

The Bookwalter Perineal system is designed to be assembled in two distinct configurations:

Option 1 – Side Rail Mount

In this setup, the vertical field post, vertical extension bar, and horizontal bar are mounted to the operating table side rail near the patient’s torso or upper thigh. The bars are connected to form an overhead bridge that extends down through the patient’s thighs. This allows the perineal ring frame to sit levelly directly below the pubic bone, providing excellent exposure while keeping the table ends clear. This configuration is commonly preferred during standard lithotomy procedures where the foot of the table is tucked.

Option 2 – Drop Segment Mount

For tables equipped with a split leg or drop segment, the field post can be clamped directly to the dropped leg portion or the end rail of the table. This allows the retractor system to approach the surgical site directly from below. It is the ideal setup for deep anorectal reconstructions or perineal reconstructions because it leaves the lateral sides of the patient completely free, allowing the surgeon to stand directly in front of the pelvic outlet.

How the Perineal System Works

The structural and mechanical parts of the perineal set connect together to create a rigid, highly adjustable retraction field:

• Secure Table Anchor: Heavy-duty post couplers lock onto the table side rails over the sterile drapes, establishing a solid vertical column that will not drift under continuous traction.

• Precise Frame Positioning: The horizontal and vertical extension bars are adjusted to suspend the notched perineal ring directly over the perineum, centering the opening over the surgical field.

• Notched Slip Protection: The notched perineal ring is secured. The notches around its perimeter provide secure, slip-resistant anchor points for the tilt ratchets, ensuring they do not slide sideways under lateral tension.

• Disposable Hook Compatibility: The notched ring design is also optimized to allow the secure attachment of disposable elastic hook retractors, providing exceptional flexibility for superficial skin traction.

• Deep Retraction and Angle Control: Specialized posterior vaginal, Deaver, and thin malleable blades are inserted into the pelvic cavity. Their flat shafts slot into the tilt ratchets, allowing the surgeon to tilt the blades downward to hold back muscles and internal tissues safely.

Surgical Specialties and Clinical Applications

Our specialized perineal retractor systems are utilized globally across several high-exposure pelvic specialties:

• Perineal & Anorectal Surgery: Provides wide, consistent visualization during sphincteroplasties, deep fistula repairs, and hemorrhoidectomies.

• Colorectal Surgery: Essential for lower pelvic exposures, rectal cancer resections, and pelvic floor reconstructions.

• Urogynecology & Gynecology: Used to maintain stable hands-free exposure during vaginal hysterectomies, vaginal prolapse repairs, cystocele/rectocele repairs, and vaginal wall reconstructions.

• Reconstructive Urology & Perineal Reconstruction: Highly valued for posterior urethral reconstructions, perineal prostatectomies, and gender-affirming surgeries.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our perineal surgery set is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that our vertical posts, horizontal bars, and thin pelvic blades do not flex, bend, or slip under continuous tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The perineal set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or joint wear over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single category.

• Direct Sourcing Efficiency: Sourcing directly from our factory in Pakistan lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Compatibility: We manufacture our posts, bars, notched rings, and blades to standard industry-recognized dimensions, ensuring they integrate with your existing hospital trays.

• Reliable Lead Times: Backed by a skilled workforce of over 50 employees, we maintain a highly reliable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter Perineal Surgery Retractor used for?

The Bookwalter Perineal Surgery Retractor is a table-mounted, self-retaining retractor designed to provide stable exposure during perineal, pelvic floor, vaginal, colorectal, and reconstructive procedures.

What are the two mounting options for this system?

The system can be mounted to the table side rails (extending a post bridge down through the patient’s thighs) or attached directly to the table’s dropped leg segment (approaching the perineum directly from below).

Why does the perineal ring have notches?

The notches around the perineal ring frame prevent the sliding tilt ratchets from slipping under heavy lateral loads, and they provide secure anchor points for disposable elastic hook retractors.

Is the entire perineal system autoclavable?

Yes. All components are made of premium surgical stainless steel and are fully compatible with standard high-temperature gravity and pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or notched rings?

Yes. We supply individual perineal components (including thin malleable blades, notched perineal rings, and tilt ratchets) to help you replace missing items from existing hospital trays.

What is included in the complete Bookwalter Perineal set?

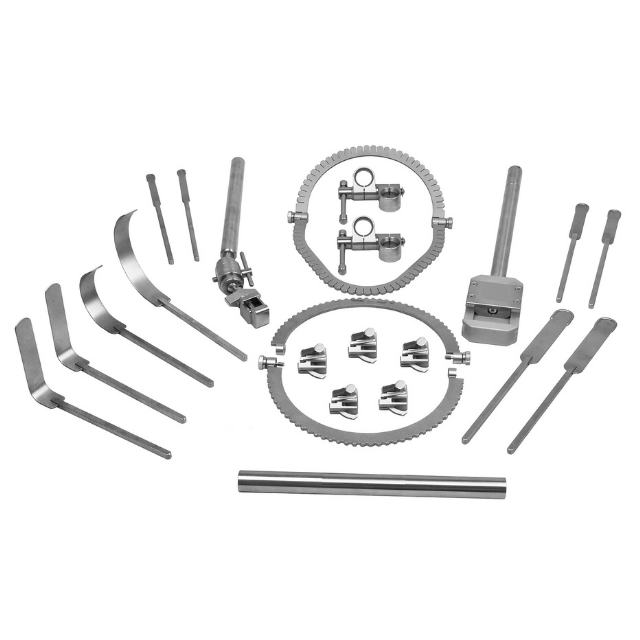

The complete set includes a vertical post, two post couplers, a horizontal bar, a vertical extension bar, five tilt ratchets, a half-circle segment, a notched perineal ring, two posterior vaginal blades, two curved Deaver blades, six thin malleable blades, and an organizer sterilization box.

Are GYN and perineal blades compatible with standard Bookwalter rings?

Yes. All blades in this set utilize standard flat slotted shafts, allowing them to be used with standard abdominal Bookwalter ring frames and sliding ratchets.

What is the average manufacturing lead time for a wholesale order?

Our average factory production, inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all joint areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
