Bookwalter IMA Retractor System

The Bookwalter IMA Retractor System is a table-mounted, self-retaining surgical retractor engineered to provide gentle, controlled lifting of the anterior chest wall during Internal Mammary Artery (IMA) harvesting. Unlike standard horizontal abdominal frames, this specialized cardiothoracic instrument is designed to provide stable vertical elevation. This ensures that surgeons can isolate the left or right internal mammary artery safely under direct, stable vision during open heart procedures.

By shifting all lifting forces onto a table-mounted post coupler assembly, this system provides absolute structural stability during long cardiac procedures. It removes the physical clutter of traditional handheld equipment, providing excellent, hands-free exposure while minimizing tissue trauma. We forge this entire system from premium, non-magnetic stainless steel at our manufacturing plant in Pakistan, exporting turnkey sets directly to international hospital networks, medical device importers, and OEM private-label brands.

What Is the Bookwalter IMA Retractor System?

The Bookwalter IMA Retractor System is a dedicated table-mounted exposure platform configured specifically for cardiothoracic surgeries requiring coronary artery bypass grafting (CABG). It represents a major engineering departure from standard outward-pulling abdominal setups.

Instead of utilizing a large round ring to push muscle layers away horizontally, this system relies on an adjustable horizontal bar, a crossbar tracking segment, and specialized hook-lipped IMA blades. Controlled by dual micro-adjustable lifting ratchets, this setup converts structural support into an incredibly fine, vertical lifting mechanism. This allows surgeons to elevate the dissected edge of the sternum smoothly, creating a clear tunnel to harvest the artery without putting unnecessary stress on the rest of the patient’s chest structure.

Purpose of the IMA Retractor System

During a CABG procedure, the internal mammary artery (located on the inside wall of the chest cavity) is considered the gold standard graft due to its excellent long-term survival rates. However, harvesting this vessel requires working directly underneath the split sternum. Standard sternotomy retractors pull the breastbone open sideways, but they do not lift the bone edges upward, leaving the artery hidden in a dark shadow.

The Bookwalter IMA system was developed to resolve these specific challenges:

• Asymmetric Sternal Elevation: Allows one specific side of the split chest wall to be pulled upward and outward, exposing the vessel cleanly.

• Micro-Controlled Lifting: The micro twist ratchet mechanism allows controlled lifting in increments of less than 1 mm, enabling gentle and precise elevation of the chest wall while each blade can be adjusted independently. This microscopic control prevents sudden rib fractures or tissue shearing.

• Optimized Workspace: Replaces bulky hand-held tissue pulls, opening up a clear path for surgical headlights, loupes, or operating microscopes.

How the Bookwalter IMA Retractor System Works

The vertical extension post, crossbar tracking segment, and specialized hook-lipped IMA blades connect together to form an exceptionally stable vertical lifting platform:

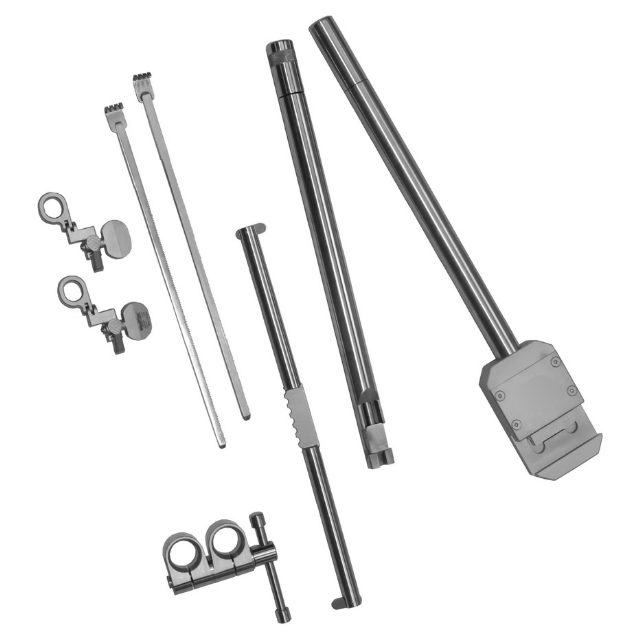

Complete IMA Set Components and Specifications

Our factory supplies this specialized cardiothoracic set with all the necessary vertical posts, crossbar segments, and micro-lifting ratchets required for direct surgical assembly.

Quantity	Component	Dimensions / Specifications
1	Vertical Extension Bar	12″ (30 cm) rigid support post
1	Post Coupler	Heavy-duty table rail attachment clamp
1	Horizontal Bar	Standard crossbar extension
2	IMA Ratchet Mechanisms	Micro-adjustable twist lifting ratchets
1	IMA Cross Bar	12″ (30 cm) tracking bar
2	IMA Retractor Blades	Hook-lipped sternal lifting blades
1	Sterilization Box	Perforated organizing container tray

Surgical Specialties and Clinical Applications

Our specialized IMA lifting configurations are utilized globally across open cardiothoracic procedures:

• Coronary Artery Bypass Grafting (CABG): The primary application for isolating and harvesting the left or right internal mammary artery safely.

• Internal Mammary Artery Harvesting: Allows for both pedicled and free graft collections under direct vision.

• Open Cardiac Surgery: Used during complex multi-valve replacements or aortic reconstructions where specific chest wall elevation improves surgical access.

• Cardiothoracic Procedures: Provides reliable performance during long cardiac procedures, ensuring the surgical field remains stable throughout.

Key Product Advantages & Clinical Benefits

• Independent Blade Adjustment: The independent ratcheting mechanisms allow surgeons to elevate each side separately for improved visualization and safe artery dissection.

• Micro-Adjustable Lifting: Thumbscrew controls prevent sudden jerking or excessive tension, minimizing the risk of internal tissue trauma.

• Stable Chest Wall Elevation: Transfers heavy physical loads to the table side rails, ensuring the frame remains rock-solid for multiple hours.

• Controlled Exposure: Allows the surgeon to fine-tune the exact field of view, keeping delicate internal structures protected.

• Easy Assembly: Quick-connect bars and slide-on ratchets allow operating room staff to set up or adjust the frame within minutes.

• Surgical-Grade Stainless Steel Construction: Forged from premium reusable alloys, ensuring long-lasting performance and resistance to metal fatigue.

• Autoclavable Design: Fully compatible with standard hospital sterilization procedures, with zero degradation of internal gear tension over time.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our IMA retractor set is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that our vertical posts, crossbars, and mechanical lift gears do not flex, slip, or strip under heavy chest wall pressure. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh reflections under intense operating room lamps.

Reprocessing and Sterilization Compatibility

The entire cardiac set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C / 273∘F for 4 to 5 minutes), with no loss of gear precision or mechanical tension over time.

Product Advantages vs. Limitations

Key IMA System Advantages	Practical Considerations
Sub-Millimeter Lifting Lift: Micro-twist dials raise tissue in increments less than 1 mm to prevent bone damage.	Dedicated Focus: This system is engineered specifically for vertical chest lifting and cannot be used for flat abdominal fields.
Independent Sternal Lifting: Allows the left or right chest wall to be elevated separately to maximize artery visibility.	Component Alignment: Operating room teams must track safety clips and lift gears carefully during setup.
Hands-Free OR Efficiency: Frees up surgical assistants completely, leaving the heart workspace open and clear.	Gear Lubrication Care: Internal micro-drive threads require regular instrument lubrication to maintain smooth turning.

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Factory Sourcing: Sourcing your retractor sets directly from our factory in Pakistan lowers medical procurement costs by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our crossbars, lifting ratchets, and blade shafts are manufactured to meet standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital inventory.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees and strict quality control, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter IMA Retractor System used for?

It is a table-mounted, self-retaining retractor system designed specifically to provide gentle, controlled vertical lifting of the chest wall during Internal Mammary Artery (IMA) harvesting in CABG procedures.

How does this system prevent sternal or rib fractures?

The system utilizes specialized micro twist ratchet mechanisms that enable gradual lifting in adjustments of less than 1 mm. This extreme precision prevents sudden, excessive pressure on the bone margins.

Can both sides of the chest wall be lifted at the same time?

Yes, but they are controlled independently. The system includes two separate lifting ratchets, allowing the surgical team to elevate each sternal margin separately or at different heights depending on visibility needs.

Are these cardiac blades compatible with standard Bookwalter sets?

The posts and horizontal bars use standard Bookwalter locking dimensions. However, the IMA lifting ratchets and hook blades are highly specialized for cardiothoracic vertical expansion and are unique to this set.

Is the entire IMA retractor system autoclavable?

Yes. Every component—including the tracking crossbars, micro-adjustment thumbscrews, and individual lifting blades—is made of premium surgical stainless steel and is fully compatible with standard hospital autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement lifting ratchets or hook blades?

Yes. We supply individual components (including separate micro-twist ratchets, IMA crossbars, and replacement hook blades) to help you replace missing items from existing hospital trays.

Where should the vertical field post be attached to the table?

The vertical post should be clamped onto the table side rail near the patient’s armpit (axilla), directly opposite the surgeon who is harvesting the artery.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I maintain the micro-twist gears on the ratchets?

Ensure your sterile processing department washes the mechanisms with neutral-pH enzymatic detergents, rinses thoroughly with demineralized water, and applies a water-soluble instrument lubricant to the thumbscrew threads periodically to keep the gears moving smoothly.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.

Request Your Direct Factory Quote

Maintain a highly reliable supply of durable, premium-grade Bookwalter IMA Retractor System for your healthcare network. Contact Retractor Maker today to receive an itemized wholesale price quote or catalog details.

• Submit a Direct Quote Request: https://retractormaker.com/request-a-quote/
• Browse All Surgical Retractors: https://retractormaker.com/surgical-retractors/
• Contact Our Technical Sales Team: https://retractormaker.com/contact/
• Visit Our Bookwalter Retractor Website: https://bookwalterretractor.com/
• Visit Our Leyla Retractor Website: https://leylaretractor.com/
