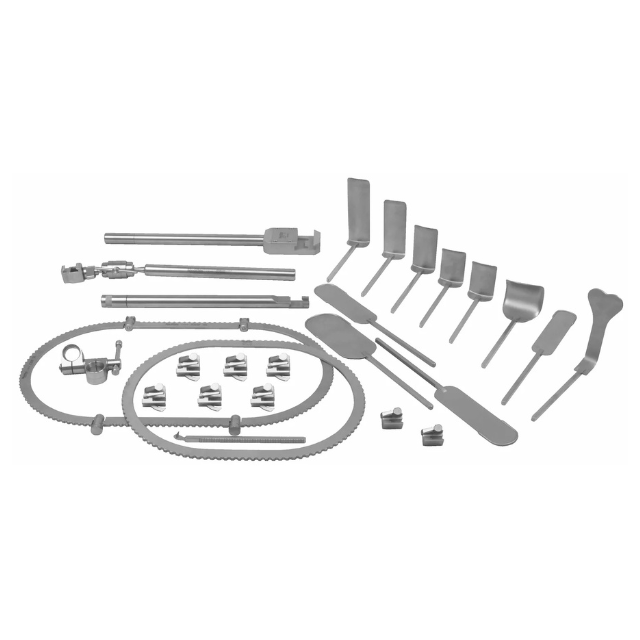

Bookwalter General Surgery Retractor

The Bookwalter General Surgery Retractor is a table-mounted, self-retaining surgical retractor system designed specifically for open abdominal and soft-tissue procedures. While standard abdominal retractor listings offer broad, generic parts, this dedicated configuration is bundled with a curated selection of solid and segmented rings, rigid abdominal wall blades, and flexible malleable strips. This balanced selection ensures that general surgeons can easily configure custom retraction fields for a vast range of operating depths.

By locking securely onto the operating table rails, this system provides absolute structural stability. It removes the physical burden of manual retraction entirely, leaving the surgical workspace open and unobstructed. We manufacture this complete general surgery system from premium, non-magnetic stainless steel at our specialized facility in Pakistan, supplying healthcare distributors, bulk importers, and hospital networks globally.

What Is the Bookwalter General Surgery Retractor?

The Bookwalter General Surgery Retractor is a specialized, table-mounted, self-retaining retractor system configured specifically to handle the diverse demands of open abdominal and pelvic operations.

In a typical general surgery department, a single operating room may handle a shallow hernia repair in the morning and a deep pancreatic resection in the afternoon. This system is designed to handle both. By combining highly rigid solid frames with adjustable, hinged segmented rings, surgeons can adapt the perimeter of the frame to fit different incision shapes. When paired with standard and tilt ratchets, this setup allows the surgical team to apply multi-directional retraction forces safely, maintaining clear visibility during long, complex surgeries.

Why This System Is Designed for General Surgery

Open abdominal procedures present unique challenges for surgical teams. Abdominal wall muscles are thick and resilient, requiring significant physical force to retract. At the same time, internal organs like the liver, spleen, and bowel must be held back gently to prevent damage.

Our general surgery configuration is engineered to manage these competing demands:

• Dual Ring Capabilities: The rigid solid ring provides high-strength lateral retraction for thick abdominal walls, while the segmented ring can be angled to conform to patient bodies or provide downward retraction.

• Targeted Blade Styles: Rigid Kelly and Balfour blades handle the outer muscle walls, while smooth, bendable malleable blades are easily shaped to retract delicate viscera safely.

• Multi-Angle Exposure: The included tilt ratchets allow surgeons to pitch blades downward or sideways, providing stable exposure throughout lengthy procedures.

How the General Surgery Retractor Works

The mechanical elements of the general surgery set connect to form a stable, table-mounted overhead support frame:

1. 1. Stable Post Foundation: The post coupler clamps directly to the side rail of the operating table over the sterile drapes. The 12-inch vertical field post inserts into the coupler, establishing a rigid support column.

   2. Flexible Overhead Extension: The horizontal flex bar connects to the vertical post. This multi-jointed arm allows the surgical team to position the ring frame directly over the incision.

   3. Frame Stabilization: The selected solid or segmented ring is attached to the flex bar. The notched perimeter of the ring ensures that the slide-on ratchets do not slip under load.

   4. Blade Insertion and Tensioning: Rigid Kelly, Balfour, or malleable blades are placed inside the incision. Their flat, slotted shafts slide directly into standard or tilt ratchets.

   5. Multi-Angle Adjustment: By engaging the tilt ratchets, the surgical team can tilt the blades downward, keeping abdominal muscles and internal organs safely retracted and protected.

Complete General Surgery Set Components and Specifications

Our factory supplies this specialized general surgery set with all the necessary structural post attachments, multi-angle ratchets, and specialized blades required for immediate clinical use.

Surgical Specialties and Clinical Applications

Our general surgery systems are utilized globally across several high-exposure open specialties:

• Exploratory Laparotomy: Provides wide, steady exposure of the entire abdominal cavity, allowing the surgeon to inspect internal organs safely.

• Colectomy and Gastrectomy: Holds back abdominal walls and surrounding tissue, ensuring clear visualization of the bowel or stomach.

• Hepatobiliary & Pancreatic Surgery: The Harrington sweetheart blade gently retracts the liver, while malleable blades hold back the stomach, exposing the biliary tract and pancreas.

• Splenectomy: Provides stable, deep lateral retraction to access the spleen safely under the rib cage.

• Hernia and Abdominal Tumor Surgery: Secures flat, stable visual margins, allowing for precise suture placement and tissue reconstruction.

• Trauma Surgery: Essential for rapid, hands-free exposure during emergency damage-control laparotomies.

Compatible Accessory Kits and Modular Expansion

One of the greatest advantages of our general surgery configuration is its outstanding modularity. It acts as a foundational system that can be easily expanded using optional accessory kits to suit different surgical procedures and surgeon preferences:

• Bariatric Accessory Kit: Adds an 18-inch extended post, ratchet extenders, and extra-deep 8-inch blades to handle high-BMI patients.

• Small Incision Accessory Kit: Adds downsized rings and micro-adjustable hooks for pediatric or shallow surgeries.

• Rectal Surgery Accessory Kit: Includes specialized deep pelvic retractors and angled frames for low anterior resections.

• Additional Blades and Ratchets: The system can be expanded with additional Kelly blades, malleable blades, twist ratchets, and specialty retractor blades.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our general surgery set is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that the vertical posts, horizontal bars, and flat blade shafts do not flex, bend, or slide under continuous physical tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The general surgery set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or joint wear over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single category.

• Direct Sourcing Efficiency: Sourcing directly from our factory in Pakistan lowers procurement budgets by eliminating third-party trading brokers.

• Guaranteed Compatibility: We manufacture our posts, bars, rings, ratchets, and blades to standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital trays.

• Reliable Lead Times: Backed by a skilled workforce of over 50 employees, we maintain a highly reliable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter General Surgery Retractor used for?

It is a table-mounted, self-retaining retractor system designed specifically to provide stable, multi-directional exposure during open abdominal, pelvic, and soft-tissue procedures.

How does this configuration differ from the standard Bookwalter set?

The general surgery configuration is bundled with a curated selection of both solid and segmented medium ring frames, a highly adjustable horizontal flex bar, and a balanced mix of rigid Kelly and Balfour blades paired with malleable organ-holding strips.

Are the components compatible with existing Bookwalter systems?

Yes. We manufacture all our vertical posts, rings, ratchets, and blades to match standard industry-recognized dimensions, ensuring complete cross-compatibility with your existing hospital inventory.

What is the advantage of the segmented ring in this set?

The segmented ring features built-in side hinges that allow the ring to be folded slightly. This helps the frame conform to curved patient bodies or allows blades to be angled downward into deep cavities.

Is the entire general surgery retractor system autoclavable?

Yes. All components are made of premium surgical stainless steel and are fully compatible with standard high-temperature gravity and pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or ratchets?

Yes. We supply individual standard and tilt ratchets, segmented rings, and specialized blades to help you replace missing items from existing hospital trays.

What is the function of the flex bar in this set?

The horizontal flex bar features multiple joint linkages. This allows the surgical team to adjust the height, angle, and rotation of the ring frame, positioning it directly above the incision.

What is the average manufacturing lead time for a wholesale order?

Our average factory production, inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all joint areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
