Bookwalter Rectal/Trans-Anal Surgery Retractor

The Bookwalter Rectal/Trans-Anal Surgery Retractor is a table-mounted, self-retaining surgical retractor system designed specifically to provide stable exposure during rectal, trans-anal, and perineal surgery. While standard abdominal retractor platforms are designed to pull tissues outward over a flat surface, this highly specialized colorectal system is engineered to function across deep, narrow vertical planes. This allows surgical teams to secure reliable mechanical exposure inside the anal canal and deep pelvic recess.

By anchoring directly to the operating table rails, the system provides steady, hands-free exposure, completely eliminating assistant obstruction and hand fatigue during long reconstructive procedures. We manufacture this complete colorectal setup from premium, non-magnetic stainless steel at our specialized facility in Pakistan, supplying direct wholesale shipments to international hospital systems, medical distributors, and private-label OEM buyers globally.

What Is the Bookwalter Rectal/Trans-Anal Surgery Retractor?

The Bookwalter Rectal/Trans-Anal Surgery Retractor System is a dedicated table-mounted exposure platform configured specifically for trans-anal excisions, lower pelvic oncology, and intricate perineal reconstructions. It represents a major configuration change from standard horizontal surgical loops.

This complete Bookwalter system is designed specifically for colorectal and rectal surgery. It provides surgeons with flexible options for trans-anal and perineal retraction. The table-mounted design allows the field post to be positioned either near the patient’s hip or beneath the table’s drop section, giving excellent exposure while maintaining stability throughout the procedure. The segmented perineal ring, half-circle ring, adjustable flex bars, tilt ratchets, and specialized rectal blades provide precise and secure tissue retraction during complex anorectal procedures, ensuring the surgical field remains entirely unobstructed by handheld equipment.

Why This System Was Designed

Operating within the deep rectal canal or along the perineal floor involves working within tight anatomical boundaries. Standard retractors easily slip out of position, block overhead light paths, and crowd the narrow workspace with excess hands and instruments.

Our dedicated colorectal retractor system addresses these specific challenges:

• Narrow-Profile Access: Features specialized rectal blades with thin widths (less than 1 inch), allowing them to slip cleanly into the anal canal to provide excellent exposure without causing soft-tissue tearing.

• Flexible Framing Configurations: Includes both an 8½-inch small half-circle ring and a specialized 14½-inch notched perineal ring, allowing the surgeon to shape the tracking border to match varying patient body shapes.

• Secure Mechanical Leverage: Multi-angle tilt ratchets allow blades to be pitched downward into deep pelvic recesses, holding back thick muscle walls stably for multiple hours.

Two Mounting Options Explained

Achieving an optimal angle of view during lower pelvic and trans-anal operations depends heavily on how the patient is positioned (such as the prone jackknife or exaggerated lithotomy positions). To accommodate these varying clinical environments, our system features two separate mounting methods:

Option 1 – Side Rail Hip Mount

In this configuration, the heavy-duty post couplers are clamped onto the standard side rails of the operating table near the patient’s hip. The vertical field post, vertical extension bar, and horizontal flex bars are connected to build an overhead bridge that extends down between the patient’s thighs. This suspends the segmented perineal ring frame flatly directly in front of the pelvic outlet, keeping the lateral sides clear for assistants.

Option 2 – Drop Segment Mount

For procedures performed on tables with a split-leg design or a removable foot segment, the vertical field post can be clamped directly underneath the table’s drop section. This allows the entire retractor framework to approach the surgical site vertically from below. This option is commonly preferred by colorectal surgeons during trans-anal excisions because it removes all metal rods from the lateral workspace, allowing the surgeon to stand directly in front of the anal canal without obstruction.

How the Retractor System Works

The structural and mechanical parts of the colorectal set connect together to establish a rigid, highly adjustable exposure field:

• • Rigid Table Anchor: Heavy-duty post couplers lock over the sterile drapes onto the table rails, ensuring the vertical field post remains completely motionless under lateral tension.

  • Multi-Axis Extension: Jointed horizontal flex bars and a 12-inch vertical extension bar connect to the column, allowing the surgical team to adjust the height, distance, and pitch of the frame easily.

  • Notched Slip Protection: The chosen segmented perineal ring or small half-circle ring is locked into position. The scalloped notches along the perineal ring border provide secure, slip-resistant anchor points for the tilt ratchets, preventing them from sliding sideways under load.

  • Deep Access Positioning: Specialized narrow rectal blades, curved Deaver blades, or thin malleable strips are inserted into the canal. Their flat, slotted shafts slide directly into the slide-on tilt ratchets.

  • Controlled Multi-Angle Tension: Engaging the gears on the tilt ratchets draws the tissues outward and downward, creating a highly stable, hands-free field of visibility that remains completely secure throughout lengthy procedures.

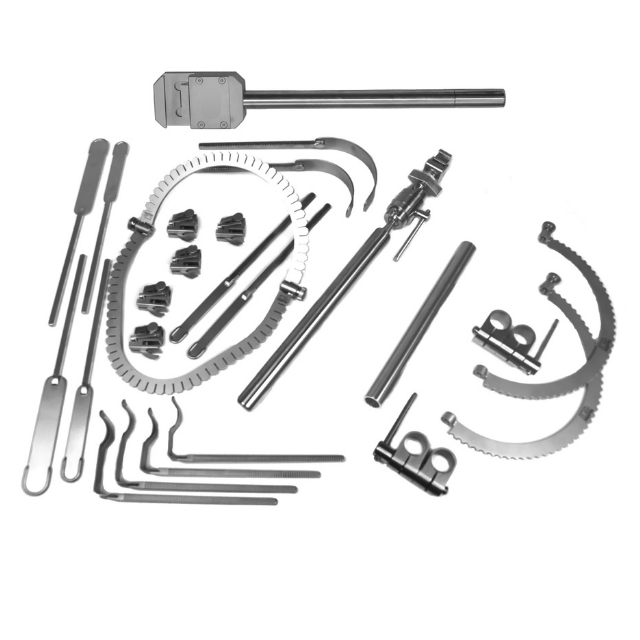

Complete Rectal Set Components and Specifications

Our factory supplies this complete urology and colorectal set with all the downsized posts, flex bars, notched frames, and specialized narrow blades needed for immediate clinical setup.

Quantity	Component	Dimensions / Specifications
1	Field Post	12″ (30 cm) solid vertical support rod
2	Stainless Steel Post Couplers	1″ × 1″ (2.5 × 2.5 cm) heavy-duty rail clamps
2	Rectal Blades	⅞″ × 3⅞″ (2.2 × 9.7 cm) deep narrow blades
2	Rectal Blades	⅞″ × 2⅞″ (2.2 × 7.2 cm) shallow narrow blades
2	Malleable Blades	1″ × 3½″ (2.5 × 10 cm) bendable tissue strips
2	Malleable Blades	½″ × 4″ (1.3 × 8.8 cm) extra-thin bendable strips
2	Malleable Blades	¾″ × 4″ (1.9 × 10 cm) thin bendable tissue strips
2	Malleable Blades	2″ × 6″ (5 × 15 cm) broad visceral strips
2	Deaver Blades	1″ × 3½″ (2.5 × 8.8 cm) curved pelvic retraction blades
2	Horizontal Flex Bars	1″ Diameter (2.5 cm) multi-jointed arms
5	Tilt Ratchets	Adjustable angle, slide-on frame clamps
1	Vertical Extension Bar	12″ (30 cm) extension column
1	Small Half-Circle Ring	8½″ (21.3 cm) Internal Diameter (ID) frame
1	Segmented Perineal Ring	9½″ × 14½″ (23.8 × 36.3 cm) notched hinged frame
1	Sterilization Box	Perforated organizing container tray

Specialized Rectal and Perineal Blade Options

Our colorectal configuration is bundled with a highly specific selection of thin, smooth blades designed to match the delicate mucosal and muscular layers of the anorectal canal:

Specialized Rectal Blades (Two Depth Profiles)

Featuring an ultra-narrow width of just ⅞ of an inch ($2.2\text{ cm}$), these specialized blades are designed to glide safely into the rectum. Having both shallow ($2\text{⅞″}$) and deep ($3\text{⅞″}$) options lets the colorectal team match the blade depth exactly to the patient’s anatomy, providing precise exposure of rectal tumors without compressing surrounding neurovascular bundles.

Thin Malleable Blades (Three Width Profiles)

These bendable stainless steel strips range down to ½ inch wide. They can be hand-shaped by the surgical team to follow the exact contours of the pelvic wall, making them ideal for gently holding back surrounding tissues during delicate reconstructions.

Curved Deaver Blades

Featuring a gentle, swept curve, these 1-inch-wide blades provide deep, non-traumatic retraction along the pelvic floor, keeping lower pelvic structures safely out of the operational workspace.

Surgical Specialties and Clinical Applications

Our specialized trans-anal and rectal retractor systems are utilized globally across several high-exposure pelvic specialties:

• Colorectal & Rectal Surgery: Highly requested for performing low anterior resections and complex rectal tumor removals.

• Trans-Anal Surgery: Provides steady, deep visual access during trans-anal endoscopic microsurgeries (TEMS) and trans-anal total mesorectal resections (taTME).

• Anorectal Procedures & Proctology: Essential for managing complex high-grade fistula repairs, sphincteroplasties, and advanced hemorrhoid surgeries.

• Pelvic Floor Surgery & Urogynecology: Used to maintain stable hands-free exposure during rectocele repairs, perineal reconstructions, and pelvic organ prolapse treatments.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our colorectal retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-tensile alloy ensures that our vertical rods, jointed flex bars, and ultra-narrow rectal blades do not flex, bend, or slide under continuous physical tension. All components feature an anti-glare satin matte finish to eliminate harsh light reflections from intense operating room lamps.

Reprocessing and Sterilization Compatibility

The entire rectal set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters ($134^\circ\text{C}$ or $273^\circ\text{F}$ for 4 to 5 minutes), with no loss of gear precision or mechanical tension over time.

Product Advantages vs. Limitations

Key Colorectal System Advantages	Practical Considerations
Deep Trans-Anal Visibility: ⅞-inch narrow rectal blades enter small cavities smoothly without tissue tearing.	Setup Training: Operating room staff must be trained to adjust the jointed flex bars and set up the chosen frame angle.
Dual Mounting Adaptability: Can be clamped to table side rails or directly beneath the table’s drop section.	Specialized Application: Thin-profile rectal and malleable blades are optimized for pelvic tracts, not wide open abdominal fields.
Slip-Free Notched Ring: Scalloped perimeter notches keep sliding tilt ratchets perfectly locked in place.	Reprocessing Care: Multi-joint flex bars and hinged ring joints require thorough rinsing during hospital cleaning.

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused status-exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Factory Sourcing: Sourcing your retractor sets directly from our factory in Pakistan lowers medical procurement costs by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our posts, flex bars, notched rings, and blade shafts are manufactured to meet standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital trays.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees and strict quality control, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter Rectal/Trans-Anal Surgery Retractor used for?

It is a table-mounted, self-retaining retractor system designed specifically to provide stable, hands-free exposure during rectal, trans-anal, proctological, and pelvic floor procedures.

How does this configuration differ from the standard Bookwalter set?

The rectal configuration downscales the blade widths drastically, featuring specialized ⅞-inch narrow rectal blades, thin malleable strips, and a customized notched perineal ring frame tailored to fit the pelvic outlet.

What are the two mounting options for this system?

The field post can be clamped onto the table side rails near the patient’s hip (extending a post bridge over the thighs) or attached directly beneath the table’s drop section (approaching the anal canal vertically from below).

Are these colorectal blades compatible with standard Bookwalter frames?

Yes. While the blade faces are specialized and narrowed for rectal entry, they feature standard flat-slotted shafts that fit all industry-standard Bookwalter ring frames and sliding ratchets.

Is the entire rectal retractor system autoclavable?

Yes. Every component—including the jointed flex bars, notched perineal rings, sliding tilt ratchets, and individual blade faces—is made of premium surgical stainless steel and is fully compatible with standard hospital pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement rectal blades or separate flex bars?

Yes. We supply individual components (including separate ⅞-inch rectal blades, notched perineal rings, and replacement tilt ratchets) to help you replace missing or worn items from existing hospital trays.

What is the purpose of the notches on the perineal ring?

The scalloped notches around the perimeter of the perineal frame provide secure, slip-resistant anchor points for the tilt ratchets, ensuring they do not slide sideways under heavy lateral pull.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure your sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all hinged and jointed areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
