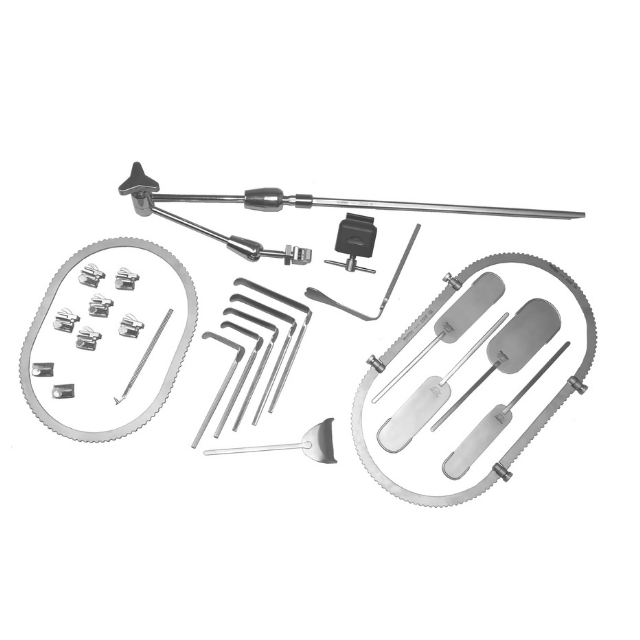

Bookwalter StrongArm General Surgery Retractor System

The Bookwalter StrongArm General Surgery Retractor System is a premium table-mounted, self-retaining retractor system designed for open general surgical procedures. While traditional retraction options depend on a rigid, right-angled grid of vertical and horizontal rods, this premium system incorporates an advanced mechanical positioning arm. This configuration ensures that operating room teams can position the ring frame with high fluid flexibility, creating an open, uncrowded field of vision for deep abdominal wall access.

By replacing the standard fixed post framework with the multi-axis StrongArm Plus Holder and a high-torque heavy-duty rail clamp, this system increases surgical field clearance. It provides stable, hands-free tissue retraction while keeping the perimeter of the operating table unobstructed. We forge this entire premium setup from surgical-grade, non-magnetic stainless steel at our specialized manufacturing facility in Pakistan, supplying medical device distributors, global surgical brands, and hospital procurement departments directly.

What Is the Bookwalter StrongArm General Surgery Retractor System?

The Bookwalter StrongArm General Surgery Retractor System is an improved, articulating-arm mounting and positioning solution developed for open laparotomies, major pelvic interventions, and deep abdominal reconstructions. It represents a significant ergonomic upgrade from classic right-angle structural columns.

The core of this system is the articulating mechanical arm column, which mounts securely onto the table side rail. The working end of this positioner arm connects directly to dual-hinged segmented ring frames. Rather than adjusting multiple crossbar clamps individually to clear a patient’s abdomen, the surgical team can turn a single central control mechanism on the arm to raise, lower, slide, or tilt the entire ring assembly. Once locked, the column becomes an unyielding structural anchor, allowing multi-angle tilt ratchets to hold back muscle walls and internal viscera safely throughout lengthy procedures.

How the StrongArm Plus Holder Improves Surgical Retraction

Traditional table-mounted retractors rely on a fixed vertical field post. If a surgeon needs to alter the frame height or angle mid-operation to see into a deep pelvic recess or upper abdominal margin, the post coupler must be loosened manually, the bars shifted, and the screws re-tightened. This introduces a risk of minor frame drift and takes up critical minutes.

The StrongArm Plus Holder improves this workflow by introducing continuous multi-jointed flexibility:

• Expanded Positioning Range: Delivers smooth vertical adjustment and multi-axis angular rotation, allowing the ring frame to be positioned asymmetrically over irregular patient body contours.

• Lower Profile Setup: Replaces bulky horizontal crossbars and protruding right-angle knobs with a single sleek column, keeping the mechanical parts low and away from the surgeon’s hands.

• More Working Space: Shifting the main support column further down the table rail gives the surgical team more physical space to move and operate efficiently around the table.

StrongArm vs. Traditional Bookwalter Mounting

Feature Category	Premium StrongArm Plus Holder Mount	Traditional Rigid Field Post Mount
Adjustment Axis	Multi-axis fluid articulation (infinite angles)	Fixed right-angle movements (vertical/horizontal)
Control Interface	Single-point central locking mechanism	Multiple individual screw clamps and couplers
Setup Speed	Rapid positioning and single-lock immobilization	Step-by-step alignment of separate bars
Table Profile	Low profile; provides more working space	Taller profile; vertical rod stands near wound
Positioning Range	Expanded range (can tilt frame asymmetrically)	Linear adjustment (restricted to flat plane)
System Compatibility	Fits all Bookwalter and ratchet-style rings	Fits matching standard ring paths only

How the System Works

The StrongArm Plus Holder, Heavy Duty Rail Clamp, Tilt Ratchets, Segmented Rings, and interchangeable blades work together to provide stable, hands-free exposure while creating more usable space around the operating table:

1. Rigid Foundation Link: The heavy-duty rail clamp locks tightly over the sterile drapes onto the operating table side rail, establishing a high-torque anchor base.

2. Articulating Positioning: The base of the StrongArm Plus Holder slots into the clamp. Unlocking the arm allows the user to position the ring frame directly over the target incision area.

3. Hinged Frame Conformance: The selected medium or large segmented ring is attached to the arm mount. The built-in hinges on the ring are adjusted to match the patient’s local body contours.

4. Blade Engagement: Flat-slotted shafts of the abdominal blades (such as the Balfour, Harrington, or wide malleable strips) are placed inside the cavity and slid into the tilt ratchets.

5. Multi-Angle Retraction: Engaging the gears on the tilt ratchets draws the tissues outward and downward, creating a highly stable, hands-free field of visibility that remains completely secure throughout lengthy procedures.

Complete Premium System Components and Specifications

Our factory supplies this premium general surgery configuration with the foundational articulating arm column, dual-hinged segmented rings, and an extensive selection of deep-cavity muscle and organ-retaining blades.

Quantity	Component	Size / Dimensions	Technical Details
1	Top Mount StrongArm Plus Holder	Extended radius	Articulating multi-axis positioner column
1	Heavy Duty Rail Clamp	Standard	High-torque table rail attachment block
2	Ratchet Mechanisms	Non-tilting	Standard slide-on frame clamps
6	Tilt Ratchet Mechanisms	Multi-angle	Adjustable angle, slide-on frame clamps
1	Segmented Ring	10½″ × 14½″ (26.7 × 36.8 cm)	Medium, dual-hinged reconfigurable frame
1	Segmented Ring	10½″ × 19″ (26.7 × 48.3 cm)	Large, dual-hinged reconfigurable frame
1	Balfour Blade	2⅝″ × 3″ (6.7 × 7.6 cm)	Broad-profile abdominal wall muscle blade
2	Kelly Blades	2″ × 3″ (5.1 × 7.6 cm)	Right-angle muscle retraction blades
1	Kelly Blade	2″ × 4″ (5.1 × 10.2 cm)	Right-angle muscle retraction blades
1	Kelly Blade	2″ × 5″ (5.1 × 12.7 cm)	Right-angle muscle retraction blades
1	Kelly Blade	2″ × 6″ (5.1 × 15.2 cm)	Right-angle muscle retraction blades
1	Harrington Blade	1″ × 5⅝″ × 2½″ (2.5 × 14.3 × 6.4 cm)	Sweetheart style liver/viscera retractor
1	Gelpi Blade	Standard	Self-retaining muscle prong instrument
1	Malleable Blade	3″ × 6″ (7.6 × 15.2 cm)	Smooth, bendable visceral protection strip
2	Malleable Blades	2″ × 6″ (5.1 × 15.2 cm)	Smooth, bendable visceral protection strip
1	Malleable Blade	1½″ × 6″ (3.8 × 15.2 cm)	Smooth, bendable visceral protection strip
1	Sterilization Box	Customized layout	Perforated organizing container tray

Surgical Specialties and Clinical Applications

The expanded positioning range and low table profile make this premium configuration highly requested across major open surgical disciplines:

• General Surgery: Highly favored for extensive exploratory laparotomies, radical gastrectomies, and complex ventral hernia reconstructions.

• Colorectal & Transplant Surgery: Provides steady, deep visual access inside the lower pelvic basin during colectomies and kidney/liver transplantations.

• Hepatobiliary Surgery: The Harrington sweetheart blade gently retracts liver lobes, while the articulating arm allows the frame to be tilted upward under the ribs.

• Urology & Gynecology: Used to secure reliable exposure during radical cystectomies, open prostatectomies, and extensive pelvic tumor removals.

• Vascular & Trauma Surgery: Essential for rapid damage-control laparotomies where quick setup and secure tissue retraction save critical minutes.

Modular Upgrade Capabilities and Ring Compatibility

Clinical Facility Upgrade Value: The StrongArm Plus Holder features built-in compatibility with existing Bookwalter and ratchet-style rings. This makes it an ideal choice for medical facilities looking to upgrade their current mounting systems to gain better ergonomics without having to replace their entire existing inventory of surgical frames and blades.

The system easily accommodates optional specialized accessory kits to expand its clinical scope:

• Bariatric Blade Sets: Integrates deep 8-inch bariatric blades and ratchet extenders for high-BMI patients.

• Small Incision Kits: Accommodates downsized mini-rings and fine hook blades for pediatric or localized shallow surgeries.

• Specialty Retractor Blades: Supports advanced urological, rectal, and gynecological blades with standard flat slotted shafts.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our StrongArm general surgery system is forged from premium medical-grade, non-magnetic stainless steel. This high-tensile alloy ensures that our articulating arms, locking gears, and flat blade shafts do not flex, slip, or drift under continuous muscle tension. All components feature an anti-glare satin matte finish, which scatters light evenly to eliminate harsh reflections under intense operating room lamps.

Reprocessing and Sterilization Compatibility

The entire premium set is fully reusable and built to withstand standard hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters ($134^\circ\text{C}$ or $273^\circ\text{F}$ for 4 to 5 minutes), with zero degradation of internal joint locks or ratchet performance over time.

Product Advantages vs. Limitations

Key StrongArm Advantages	Practical Considerations
Articulating Arm Flexibility: Replaces rigid vertical posts with single-point central locking articulation.	Joint Maintenance: The internal multi-joint mechanical arm requires regular instrument lubrication.
Ergonomic OR Workspace: Low-profile column provides more working space for the surgical team.	Component Tracking: The kit contains multiple sliding ratchets and blades that must be tracked during cleanup.
Universal Backward Compatibility: Works seamlessly with standard Bookwalter and traditional ratchet-style rings.	Sterilization Tray Footprint: The articulating positioner arm requires dedicated space inside the sterilization box.

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused status-exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Sourcing Efficiency: Sourcing directly from our factory in Sialkot, Pakistan, lowers procurement budgets by eliminating third-party trading brokers.

• Strict Quality Control: Every articulating joint and ratchet mechanism undergoes physical load testing before export to guarantee reliable performance during long cardiac and abdominal procedures.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter StrongArm General Surgery Retractor System used for?

It is a premium table-mounted, self-retaining retractor system designed to provide highly adjustable, hands-free exposure during open abdominal, pelvic, and general surgery procedures.

How does the StrongArm Plus Holder differ from a standard field post?

The StrongArm Plus Holder utilizes a multi-jointed articulating arm that can be adjusted in infinite directions via a single central control point, whereas a standard field post is restricted to fixed vertical and horizontal right-angle movements.

Is this system compatible with standard Bookwalter rings?

Yes. The mounting attachment on the articulating arm features complete compatibility with existing standard Bookwalter and traditional ratchet-style rings, allowing hospitals to upgrade their mounting hardware while keeping their current frames.

What is included in this complete general surgery set?

The complete kit includes a Top Mount StrongArm Plus Holder, a heavy-duty table rail clamp, two standard ratchets, six tilt ratchets, two segmented ring frames (medium and large), ten abdominal blades (Balfour, Kelly, Harrington, Gelpi), four malleable strips, and an organizer sterilization box.

Is the entire articulating arm column autoclavable?

Yes. The entire StrongArm Plus assembly is constructed from premium surgical-grade stainless steel and is fully compatible with standard hospital pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or separate StrongArm holders?

Yes. We supply individual components (including separate StrongArm holders, heavy-duty table clamps, individual tilt ratchets, and specialized blades) to help you replace missing items from existing hospital trays.

What is the benefit of the segmented rings included in this set?

The segmented rings feature built-in hinges that allow the frame to fold or bend slightly, helping it conform smoothly to curved patient bodies or allowing blades to be angled deeply into narrow cavities.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I maintain the articulating joints on the StrongArm holder?

Ensure your sterile processing department washes the column with neutral-pH enzymatic detergents, rinses thoroughly with demineralized water, and applies a water-soluble instrument lubricant to the joint hinges periodically to preserve smooth articulation.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
