Budde Halo Retractor System for Neurosurgery

A Budde Halo Retractor is a self-retaining neurosurgical retractor system designed to provide stable, hands-free brain tissue retraction while giving surgeons comfortable forearm support during delicate cranial procedures. The system utilizes a double-hinged circular halo ring mounted directly above the craniotomy site, establishing a 360-degree perimeter frame for mounting articulating flex arms and micro-retractor blades. Attaching directly to Mayfield Skull Clamps or operating table side rails, it provides a sturdy mounting platform and an integrated handrest for the surgical team.

The Budde Halo concept was originally developed by Dr. Richard B. Budde to enhance surgical exposure while reducing physical surgeon fatigue during lengthy brain operations. Our Budde Halo Retractor platform features a low-profile frame, integrated handrest, and a double-hinged ring that easily converts into a half-ring configuration when expanded surgical access is needed. We manufacture this complete retractor system from surgical-grade, non-magnetic stainless steel at our facility in Pakistan, supplying direct wholesale shipments to international hospitals, surgical centers, and OEM brand partners globally.

What Is the Budde Halo Retractor?

The Budde Halo Retractor is a specialized, versatile cranial retraction system used during brain tumor resections, vascular clipping, and skull base operations. Unlike standard square frame retractors, the circular halo design provides uniform, multi-angle mounting points that surround the entire surgical opening.

The core of the system is its double-hinged halo ring, which anchors securely to Mayfield Skull Clamps or operating table side rails via heavy-duty support rods. Flex arms attach anywhere along the ring’s circumference, allowing neurosurgeons to position spatulas at precise angles. The smooth outer rim acts as a handrest, supporting the surgeon’s forearms to maintain micro-dissection stability and reduce tremors.

Key Design Features

• Flexible Dual Mounting: Attaches directly to Mayfield Skull Clamps or operating table side rails to create an unyielding support base across various OR table setups.

• Circular Halo Ring Design: Surrounds the craniotomy site to provide flexible, 360-degree perimeter mounting options for retractor arms.

• Built-In Ergonomic Handrest: The sturdy outer ring geometry supports the surgeon’s forearms, stabilizing hand control and reducing muscle fatigue during long microsurgical cases.

• Double-Hinged Frame Flexibility: Ring hinges permit multi-plane angling and allow quick conversion from a full circular ring into a half-ring setup when unobstructed overhead clearance is needed.

• Low-Profile Surgical Footprint: Keeps joint structures low to maximize instrument movement and maintain clear lines of sight under operating microscopes and endoscopes.

• Stable Self-Retaining Retraction: Relieves surgical assistants from holding manual spatulas, delivering constant, non-shifting tissue displacement.

• Flexible Articulating Arms: 9-inch flex arms lock securely at any point on the halo track, holding delicate blades at precise depths.

• Surgical-Grade Stainless Steel Construction: Forged from corrosion-resistant stainless steel built for repeated hospital cleaning and steam sterilization.

Product Components

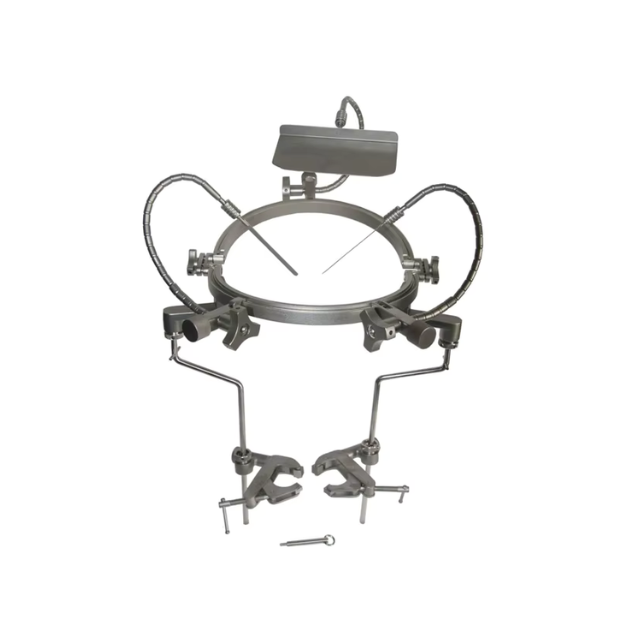

The complete Budde Halo Retractor system comes packaged as an all-in-one set inside a dedicated organizing box to ensure safe storage, transport, and autoclaving.

Quantity	Component	Dimensions / Specifications
1	Halo Ring	Double-Hinged Circular Design
3	Halo Flex Arm	9 in (229 mm)
2	Budde Halo Support Bracket	Heavy-Duty Mounting Clamps
2	Budde Halo Support Rod	5/16 in Diameter
1	Budde Halo Pattie Tray	Integrated Perforated Tray
1	Budde Halo Mini Vise	Stainless Steel Clamping Block
2	Budde Curved Retractors	Tapered Brain Retractors
2	TEW Micro Retractor Blades	Stainless Steel Micro-Blades
2	Halo Adjustment Wrenches	System Locking Tools
1	Sterilization Box	Perforated Organizer Tray

Budde Halo Retractor Components Explained

Halo Ring

The double-hinged circular halo ring serves as the main mounting frame elevated above the surgical site. It features an outer rim designed to support the surgeon’s forearms and an inner rail that receives flex arm brackets. The hinges allow the ring to fold or detach into a half-ring configuration when wider access is required.

Halo Flex Arms

The three 9-inch flexible articulating arms feature interconnected friction ball joints that move smoothly across multi-axis trajectories. Once positioned, tightening the arm mechanism locks the joints firmly, securing retractor blades in place without drift.

Support Brackets and Support Rods

Two 5/16-inch support rods and heavy-duty support brackets anchor the halo ring directly to a Mayfield Skull Clamp or operating table side rails. They create an unyielding bridge that keeps mechanical weight off the patient’s scalp.

Pattie Tray

The integrated aluminum or stainless steel pattie tray clamps onto the halo frame, keeping saline-soaked cottonoids, neuro-patties, and micro-instruments organized within the sterile field.

Mini Vise

The stainless steel mini vise serves as an auxiliary clamp, mounting specialized accessories, tubing, or secondary guide tools directly onto the halo frame.

Curved Retractors

The two curved retractors gently displace brain tissue across a broader surface area, preventing focal pressure spikes on the cortex.

TEW Micro Retractor Blades

These fine, narrow micro-blades provide precision retraction inside tight cisternal spaces, sulci, and narrow skull base pathways.

Halo Adjustment Wrenches

The included adjustment wrenches allow surgical staff to tighten and adjust halo support joints, frame hinges, and bracket locks safely.

Sterilization Box

The perforated sterilization box holds all components securely in dedicated brackets, protecting delicate threads and joints during automated washing and steam autoclaving.

How the Budde Halo Retractor Works

1. Mounting the Framework: The two 5/16-inch support rods attach to the upright posts of a Mayfield Skull Clamp or clamp onto standard operating table side rails using the support brackets.

2. Halo Ring Placement: The double-hinged halo ring is secured to the support rods, elevating the circular frame directly over the craniotomy margin.

3. Ring Angle Adjustment: The double hinges are adjusted to set the ring parallel to the surgical field or angled to match the craniotomy plane.

4. Arm and Blade Installation: Halo flex arms are clamped onto the ring rail, and curved retractors or TEW micro retractor blades are attached to the working tips.

5. Tissue Engagement: The surgeon guides the blade tip into the surgical channel, resting it against a protective neuro-pattie covering the cortex, and locks the flex arm.

6. Handrest Integration: The surgeon can rest their forearms on the smooth outer halo ring during fine micro-dissections, stabilizing hand control under the microscope.

Halo Ring Configuration Options

The double-hinged architecture adapts to varying surgical approaches:

• Full Ring Setup: Provides a complete 360-degree perimeter frame around the craniotomy. Ideal for deep tumor resections and complex skull base procedures where multiple retractor arms are needed from different angles.

• Half-Ring Setup: The double hinges allow half of the ring to be folded away or removed. This creates open overhead clearance for long instruments, endoscopes, or angled microscope trajectories while maintaining stable retraction on the remaining side.

Clinical Applications and Specialties

The Budde Halo Retractor provides stable, hands-free exposure across major neurosurgical procedures:

• Brain Tumor Surgery: Secures stable, continuous retraction during glioma, meningioma, and deep-seated lesion resections.

• Skull Base Surgery: Facilitates narrow corridor access around cranial nerves, major blood vessels, and the brainstem.

• Cerebral Aneurysm Surgery: Delivers steady exposure of arterial bifurcations during clipping and vascular malformation repairs.

• Vascular Neurosurgery: Maintains stable exposure during arteriovenous malformation (AVM) resections and revascularization procedures.

• Microsurgical Brain Procedures: Enhances field stabilization during fine micro-dissections under high operating microscope magnification.

• Functional Neurosurgery: Stabilizes surgical fields during deep brain stimulation (DBS) electrode placements and lesioning.

Advantages of the Budde Halo Retractor

• Flexible Mounting Options: Mounts securely onto Mayfield Skull Clamps or directly onto OR table side rails for maximum operating room compatibility.

• Stable Self-Retaining Support: Eliminates manual hand tremors and assistant fatigue, keeping blades fixed throughout long cases.

• Integrated Surgeon Handrest: Supports the surgeon’s forearms, reducing physical fatigue and improving micro-instrument accuracy.

• 360-Degree Positioning: The circular track allows flex arms to be placed at any position or angle around the surgical site.

• Low-Profile Design: Keeps mechanical structures low to preserve line-of-sight clearance under operating microscopes.

• Half-Ring Conversion: Quickly adapts to open-access angles without disassembling the main mounting posts.

• Durable Construction: Forged from surgical-grade stainless steel to withstand repeated usage and high-temperature autoclaving.

Cleaning, Care, and Sterilization Protocol

1. Immediate Pre-Rinsing: Rinse all components with neutral-pH enzymatic detergent immediately after surgery to prevent blood and tissue from drying inside ball joints and threads.

2. Disassembly: Separate flex arms, support brackets, and retractors before cleaning.

3. Ultrasonic Cleaning: Wash disassembled metal parts in an ultrasonic bath to clear debris from internal joint threads and cable channels.

4. Inspection & Lubrication: Inspect joint dials and hinge screws for smooth movement. Apply a water-soluble instrument lubricant to joint threads before autoclaving.

5. Steam Autoclaving: Place components inside the perforated sterilization box. Autoclave using pre-vacuum steam sterilization parameters (134C to 273F for 4 to 5 minutes).

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractor systems. We do not manufacture a broad catalog of general tools; our entire facility, machinery, and quality control processes are dedicated to retractor production.

• Direct Factory Sourcing: Sourcing your retractor systems directly from our facility lowers procurement budgets by eliminating third-party trading markups.

• Full Component Cross-Compatibility: All primary clamps, secondary bars, and retractor arms are machined to standard industry dimensions, ensuring complete interchangeability with existing hospital inventory.

• Reliable Global Delivery: Backed by a skilled workforce of over 50 employees and strict quality management, we maintain an average factory production lead time of 12 to 16 days for wholesale orders, supporting more than 500 healthcare partners globally.

Frequently Asked Questions (FAQs)

What is a Budde Halo Retractor?

It is a self-retaining neurosurgical retractor system featuring a double-hinged circular halo ring, flexible arms, and an integrated handrest that attaches directly to Mayfield Skull Clamps or operating table side rails.

What is a Halo Ring Retractor used for?

It provides stable, hands-free brain tissue retraction and surgeon forearm support during craniotomies, tumor resections, cerebral aneurysm clipping, and skull base microsurgery.

How does the Halo Ring attach to the surgical setup?

It attaches directly to the upright posts of Mayfield Skull Clamps or connects to standard operating table side rails using heavy-duty support rods and brackets.

How does the Halo Ring work?

The circular ring mounts above the craniotomy site, providing a 360-degree rail for attaching flexible arms that hold brain retractor blades securely at desired angles.

What is the purpose of the built-in handrest?

The smooth outer rim of the halo ring supports the surgeon’s forearms, reducing physical fatigue and stabilizing hand movements during delicate micro-dissections.

What is the advantage of a double-hinged Halo Ring?

The hinges allow the ring to be angled relative to the surgical site or converted into a half-ring configuration for expanded overhead clearance.

Can the ring be converted into a half-ring configuration?

Yes. The double-hinged structure allows half of the circular ring to fold down or detach, providing open access for angled tools while maintaining tissue retraction on the opposite side.

Is the Budde Halo Retractor reusable and autoclavable?

Yes. All components are forged from surgical-grade stainless steel and are fully reusable and autoclavable using standard pre-vacuum steam cycles (134C to 273F for 4 to 5 minutes).

Which retractor blades are included with the Budde Halo system?

The complete system includes two curved retractors for broad cortical displacement and two TEW micro retractor blades for narrow microsurgical access.

Is this system compatible with standard skull clamps?

Yes. The support brackets and 5/16-inch support rods are designed to attach securely to standard skull clamps, including the Mayfield Skull Clamp.

Do you offer OEM contract manufacturing for this system?

Yes. Retractor Maker provides full OEM manufacturing, private-label laser marking, and custom tray engineering for medical device brands worldwide.

What is the average manufacturing lead time for wholesale orders?

Our average factory manufacturing, quality control auditing, and export packaging timeline is 12 to 16 days from order confirmation.

How can I request a price quotation?

You can request a wholesale quotation by submitting an inquiry through our Request a Quote page or by contacting our team via our Contact Us page. You can also explore our specialized sister sites: Visit Our Leyla Retractor Website and Visit Our Bookwalter Retractor Website.

Request Your Direct Factory Quote

Equip your neurosurgical operating suites with precision-engineered, factory-direct retractor systems built for reliable clinical performance.

• Explore our complete Neurosurgery Retractors range.

• Compare complementary brain retractor platforms, including the Greenberg Retractor, Greenberg Simplicity Retractor, and Leyla Retractor.

• Visit our dedicated product portals: Visit Our Leyla Retractor Website | Visit Our Bookwalter Retractor Website.

To discuss bulk hospital pricing, OEM contract manufacturing, or international distribution terms, Request a Quote or Contact Us today to speak directly with our engineering sales team.
