Bookwalter Small Incision Retractor System

The Bookwalter Small Incision Retractor System is a compact, table-mounted, self-retaining retractor system designed to provide stable, hands-free exposure through small surgical incisions while minimizing tissue trauma. While standard abdominal retractor packages are designed with large, heavy frames for deep, wide exposures, this specialized system scale-down the entire structural footprint. It is specifically optimized for shallow fields, outpatient procedures, and pediatric applications.

By anchoring directly to the operating table side rails, this system provides absolute structural stability, removing manual retractors completely from the workspace. This improves visibility, ensures efficient tissue retraction, and provides better access through limited incisions without crowding the surgeon’s hands. We manufacture this complete small-incision system from premium, non-magnetic stainless steel at our facility in Pakistan, supplying direct wholesale shipments to international hospitals, distributors, and private-label partners.

What Is the Bookwalter Small Incision Retractor System?

The Bookwalter Small Incision Retractor System is a compact, table-mounted, self-retaining retractor system specifically configured to provide precise and adjustable retraction in limited surgical spaces.

Rather than using wide, deep Balfour or Kelly blades, this mini system is equipped with a selection of downsized, shallow-profile Richardson, Deaver, and narrow malleable blades. The set includes both a small 8½-inch round solid ring and a compact oval segmented ring. Supported by a vertical post and a horizontal flex bar, this framework lets surgeons customize their retraction margins around tiny incisions. This ensures that delicate subcutaneous layers and muscles are held open evenly without placing excessive tension on surrounding skin margins.

Why Choose a Small Incision Retractor System?

Many surgical procedures are performed through incisions measuring only 3 to 7 centimeters. In these narrow pathways, using standard full-size retractors is highly impractical. Broad, heavy blades easily overwhelm the small workspace, block overhead lighting, and can cause unnecessary tissue trauma or bruising along the skin edges.

Our small-incision system is engineered to solve these exact clinical challenges:

• Low-Profile Access: The compact 8½-inch ring frames sit flat and close to the patient’s skin, keeping the space directly above the incision completely open for the surgeon.

• Uncluttered Visual Field: Because the system handles all retraction mechanically from the side, surgical assistants do not need to crowd the small workspace with handheld instruments.

• Gentle, Precise Tension: Shallow Richardson and small malleable blades allow the team to apply tiny, precise adjustments, protecting fragile structures from excessive pressure.

This system is ideal for procedures where a full-size retractor system is unnecessary, providing optimized visibility, efficient tissue retraction, and better access through limited incisions.

How the Small Incision System Works

The field post, post coupler, flex bar, small rings, tilt ratchets, and interchangeable blades work together to provide precise and adjustable retraction in limited surgical spaces:

1. 1. Rigid Base Anchor: The post coupler clamps securely onto the side rail of the operating table over the sterile drapes. The 12-inch vertical field post inserts into the coupler, providing an unyielding support base.

   2. Flexible Positioning: The horizontal flex bar connects to the vertical post. This multi-jointed arm allows the surgical team to adjust the height, angle, and rotation of the frame.

   3. Compact Frame Attachment: The chosen small round solid ring or small oval segmented ring is attached to the flex bar. This places a compact, stable retraction perimeter directly over the small incision.

   4. Blade Placement: Shallow blades—such as Richardson, Deaver, or narrow malleable strips—are placed inside the wound. Their flat shafts slide directly into the low-profile tilt ratchets.

   5. Micro-Adjustable Tension: By sliding the ratchets along the ring borders and engaging the tilt joints, the surgical team can pull back the tissue margins with exact, minute adjustments. This ensures a clear, stable view of the surgical field throughout the procedure.

Complete Small Incision Set Components and Specifications

Our factory supplies this specialized mini retractor set with all the downsized posts, small ring frames, and narrow-profile blades needed for immediate clinical setup.

Specialized Blade Options Included

Our small-incision configuration is bundled with a highly specific selection of shallow, narrow blades designed to match the delicate tissue layers of small surgical fields:

Richardson Blades (Three Sizes)

Featuring a shallow, flat-lipped shelf, Richardson blades are designed specifically to retract subcutaneous fat and muscle layers cleanly. Because their lip depth is shallow (down to ¾″ × 1″), they hold back wound margins securely without dipping too deep into the surgical field or pressing on underlying organs.

Deep Rake Blades

Rake retractors utilize sharp, claw-like prongs to grab and hold skin and superficial fascia during the initial incision setup. By distributing traction across multiple points, they minimize localized skin tearing.

Small Malleable and Deaver Blades

These thin, flexible stainless steel strips can be easily hand-shaped by the surgical team to conform to the exact contours of internal tissues. This makes them ideal for gently holding back delicate structures like the bowel or bladder in shallow spaces.

Surgical Specialties and Clinical Applications

Our specialized small incision configurations are utilized globally across several open surgical procedures:

• Open Appendectomy & Inguinal Hernia Repair: Provides flat, stable visualization of the abdominal wall and fascial margins through small incisions.

• Pediatric General Surgery: The small 8½-inch round ring and shallow blades are ideal for fitting over the smaller bodies of pediatric patients safely.

• Minor Abdominal & Small Bowel Surgery: Keeps the margins of small laparotomies open stably, allowing for precise suture placement.

• Urological & Gynecological Procedures: Highly useful for shallow pelvic approaches, such as varicocele repairs, cyst removals, or minor suprapubic entries.

• Plastic & Reconstructive Surgery: Used to maintain stable, gentle skin flap tension during soft tissue procedures.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our small incision retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-tensile alloy ensures that our vertical posts, small ring frames, and fine blades do not flex, bend, or slip under physical tension. All components feature an anti-glare satin matte finish, which scatters light evenly to prevent eye strain under high-intensity operating room lamps.

Reprocessing and Sterilization Compatibility

The entire mini set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or blade structural integrity over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad range of general medical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Factory Sourcing: Sourcing your retractor sets directly from our factory in Pakistan lowers medical procurement costs by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our small rings, sliding ratchets, and blade shafts are manufactured to meet standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital trays.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees and strict quality control, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter Small Incision Retractor System used for?

It is a compact, table-mounted, self-retaining retractor designed to provide stable, hands-free exposure during procedures performed through smaller incisions, such as pediatric surgeries, hernia repairs, and open appendectomies.

What is the advantage of the small round ring in this set?

The small 8½-inch round ring provides a highly compact, stable perimeter that fits easily over small surgical areas, ensuring that the surrounding frame does not crowd the surgeon’s workspace.

Are the blades in this set compatible with standard Bookwalter systems?

Yes. While the blades are downsized for small incisions, they feature standard flat-slotted shafts, allowing them to be used with standard Bookwalter ring frames and sliding ratchets.

What is included in the complete Small Incision set?

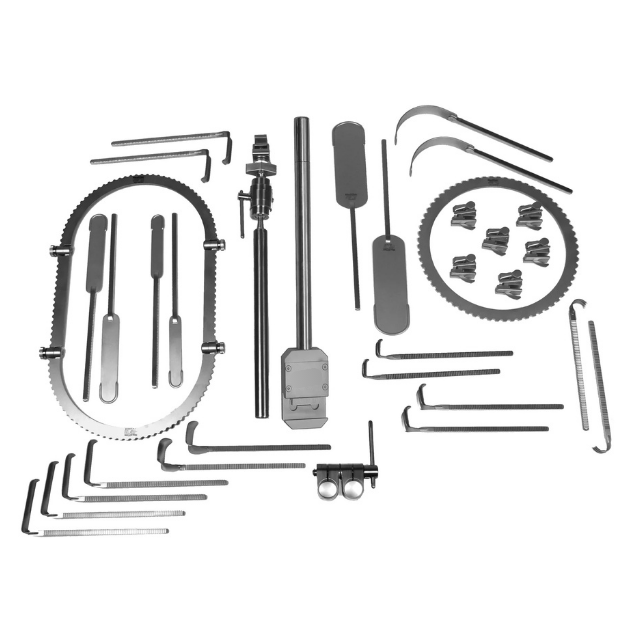

The complete set includes a 12″ vertical post, a post coupler, a horizontal flex bar, an 8½″ round solid ring, an 8½″ × 14″ oval segmented ring, six tilt ratchets, twelve Kelly/Deaver/Malleable blades, six Richardson blades, two deep rake blades, and an organizer sterilization box.

Is the entire small incision system autoclavable?

Yes. All components are made of premium surgical stainless steel and are fully compatible with standard high-temperature gravity and pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or small rings?

Yes. We supply individual mini components (including small round rings, mini tilt ratchets, and individual Richardson blades) to help you replace missing items from existing hospital trays.

Why does the set include Richardson blades of different sizes?

Richardson blades feature shallow, flat-lipped shelves that are ideal for retracting subcutaneous tissue. Having multiple sizes (down to ¾″ × 1″) lets the surgical team match the blade depth exactly to the patient’s local tissue thickness.

What is the average manufacturing lead time for a wholesale order?

Our average factory production, inspection, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all joint areas thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
