Bookwalter Urology Retractor System

The Bookwalter Urology Retractor System is a table-mounted, self-retaining surgical instrument package configured specifically for open urological, renal, and retroperitoneal procedures. While traditional abdominal retractor sets rely on rigid, unyielding oval structures, this specialized configuration focuses on dual hinged segmented rings and deep-access posterior blades. This gives surgeons the mechanical layout needed to safely navigate complex pelvic basins or deep flank pathways.

By anchoring directly to the operating table side rails, this system provides absolute structural stability, transferring heavy muscular loads away from the surgical field. This eliminates assistant obstruction completely, keeping the narrow workspace wide open during lengthy reconstructive procedures. We manufacture this entire system from premium, non-magnetic stainless steel at our specialized facility in Pakistan, supplying direct wholesale shipments to international hospital networks, medical device importers, and procurement boards.

What Is the Bookwalter Urology Retractor System?

The Bookwalter Urology Retractor System is an advanced, table-mounted exposure platform configured specifically for abdominal and flank approaches to the kidneys, bladder, ureters, renal pelvis, retroperitoneal structures, and other urological anatomy.

At the heart of this system is its unique framing design. The inclusion of two distinct segmented rings creates eight different ring size configurations with virtually unlimited positioning angles, allowing surgeons to choose the most appropriate ring size and shape for different patients and procedures. When paired with specialized tilt ratchets and deep-reach attachments like the Renal Wylie blade, this system provides highly stable tissue retraction and clear visual fields without relying on manual assistance.

Why It Is Designed for Urological Surgery

Urological anatomy spans from shallow pelvic regions up to deep retroperitoneal spaces behind the intestines. Open surgeries—such as radical nephrectomies via a lateral flank approach or radical prostatectomies via a deep suprapubic path—require highly specific, multi-angled exposure techniques.

Our dedicated urology configuration addresses these challenges directly:

• Hinged Flank Conformance: When a patient is placed in the lateral kidney position, the surgical field is curved. The side hinges on our segmented rings allow the frame to flex smoothly over the side of the patient’s body, matching its natural shape.

• Deep Retroperitoneal Access: Deep organ structures require longer, specialized retractor profiles. This set features the extra-deep, smooth 7-inch Renal Wylie blade, allowing surgeons to safely hold back dense structures around the renal vein and artery.

• Pelvic Recess Leverage: Deep pelvic fields require specific downward retraction angles. The included tilt ratchets let the surgical team tilt thin vaginal and pelvic blades downward, keeping the bladder or rectal walls safely out of the operational workspace.

How the Urology Retractor System Works

The structural and mechanical components of the urology set work together to provide flexible and reliable tissue retraction:

1. 1. Stable Rail Anchor: The post coupler locks onto the operating table side rail. The 12-inch vertical field post inserts into the block, providing a rigid, non-yielding anchor point.

   2. Multi-Axis Positioning: The horizontal flex bar attaches to the vertical post. This jointed arm allows the surgical team to adjust the height, angle, and rotation of the frame, positioning it directly above the wound.

   3. Hinged Ring Customization: The chosen medium or large segmented ring is attached to the flex bar. The hinges on the frame are adjusted to match the curves of the patient’s body, and the notched borders ensure that the slide-on ratchets lock securely into place without sliding sideways.

   4. Deep Tissue Exposure: Specialized blades—such as the 7-inch Renal Wylie blade, thin vaginal lateral blades, or malleable strips—are placed inside the cavity. Their flat, slotted shafts slide directly into the tilt ratchets.

   5. Multi-Angle Exposure Adjustment: Turning the dials on the tilt ratchets pitches the blade tips downward or laterally, providing stable exposure and improved access throughout the procedure.

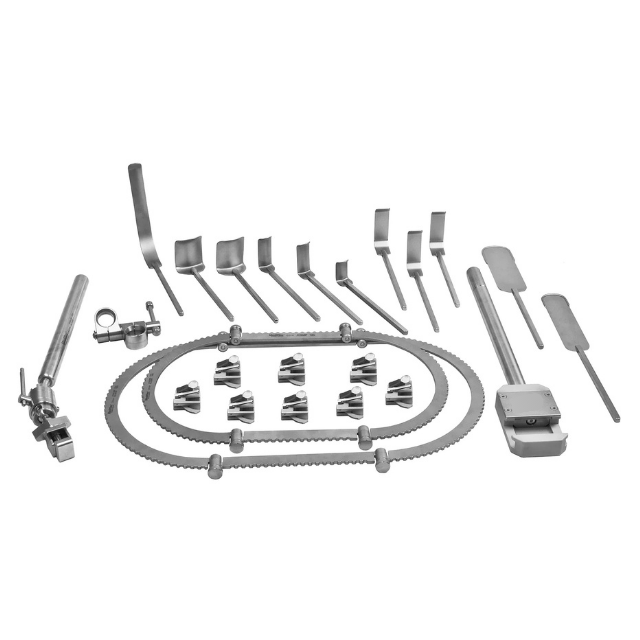

Complete Urology Set Components and Specifications

Our factory supplies this specialized urological set with all the necessary foundational posts, multi-jointed flex bars, and an extensive array of deep muscle and visceral blades.

Blade Selection and Ring Configuration Options

The inclusion of two separate segmented rings creates eight different ring size configurations with virtually unlimited positioning angles, allowing surgeons to choose the most appropriate ring size and shape for different patients and procedures. This design directly improves surgical exposure, surgeon comfort, stability, hands-free operation, and operating room efficiency.

Blade Selection Guide

• The Renal Wylie Blade (1″ × 7″): Featuring an extra-long, flat shaft and a slightly curved tip, this blade is designed specifically to reach deep into the retroperitoneal cavity during flank surgeries, holding back heavy abdominal wall structures safely near the renal hilum.

• Vaginal Lateral Blades (1″ × 3″): These narrow, curved blades provide excellent exposure within the deep pelvic basin during low suprapubic approaches, allowing for clear visualization without crowding the surgical field.

• Malleable Blades: These smooth, bendable stainless steel strips can be hand-shaped to the exact contours of internal tissues, making them ideal for holding back the bowel or bladder during deep reconstructions.

Surgical Specialties and Clinical Applications

Our specialized urological retractor systems are utilized globally across several open surgical procedures:

• Radical & Partial Nephrectomy: Provides steady, deep visual access to the kidney through lateral flank incisions.

• Radical Prostatectomy & Cystectomy: Secures wide, reliable visibility within the deep pelvic basin during bladder removals and prostate reconstructions.

• Kidney Transplantation: Holds open the iliac fossa smoothly, providing the clear workspace needed to perform precise vascular connections on the donor organ.

• Ureteral Reconstruction & Pyeloplasty: Stabilizes the exposure of the renal pelvis and ureters, ensuring accurate suture placement.

• Adrenal & Retroperitoneal Surgery: Safely holds back surrounding internal organs, allowing for clear access to the retroperitoneal space.

Technical Specifications, Material, and Quality

Materials and Manufacturing Standards

Every component in our urology retractor system is forged from premium medical-grade, non-magnetic stainless steel. This high-strength alloy ensures that our vertical posts, hinged segmented rings, and long-reach blades do not flex, bend, or slide under continuous tension. All components feature a smooth, glare-reducing satin matte finish to eliminate harsh reflections under intense operating room lamps.

Reprocessing and Sterilization Compatibility

The entire urology set is fully reusable and built to withstand frequent hospital decontamination and autoclave protocols:

• Pre-Cleaning Compatibility: Safe for use with neutral-pH enzymatic solutions, ultrasonic washers, and automated thermal disinfectors.

• Steam Autoclave Compatibility: Complies fully with standard hospital pre-vacuum steam sterilization parameters (134∘C or 273∘F for 4 to 5 minutes), with no loss of ratchet tension or hinge joint wear over time.

Product Advantages vs. Limitations

Why Source Directly from Retractor Maker?

Retractor Maker is a specialized manufacturer focused exclusively on surgical retractors. We do not manufacture a broad catalog of general surgical tools; our entire facility, machinery, and quality inspections are dedicated to this single product category.

• Direct Factory Sourcing: Sourcing your retractor sets directly from our factory in Pakistan lowers medical procurement costs by eliminating third-party trading brokers.

• Guaranteed Cross-Compatibility: All our ring paths, sliding ratchets, and blade shafts are manufactured to meet standard industry-recognized dimensions, ensuring they integrate seamlessly with your existing hospital trays.

• Reliable Logistics: Backed by a skilled workforce of over 50 employees, we maintain a highly predictable average factory production lead time of 12 to 16 days for bulk orders, supporting more than 500 satisfied customers globally with complete export documentation.

Frequently Asked Questions (FAQs)

What is the Bookwalter Urology Retractor System used for?

It is a table-mounted, self-retaining retractor system designed specifically to provide stable, hands-free exposure during open urological surgeries, including kidney, bladder, prostate, and retroperitoneal procedures.

How does the urology configuration differ from the standard Bookwalter set?

The urology configuration includes two separate hinged segmented rings that can be configured into eight distinct sizes, combined with specialized long-reach attachments like the 7-inch Renal Wylie blade and thin vaginal lateral blades.

What is the purpose of the Renal Wylie blade?

The Renal Wylie blade features an extra-long 7-inch depth profile designed specifically to reach deep into the retroperitoneal cavity during kidney or adrenal surgeries, holding back heavy abdominal structures safely.

Are the components compatible with existing Bookwalter systems?

Yes. We manufacture all our vertical posts, rings, ratchets, and blades to match standard industry-recognized dimensions, ensuring complete cross-compatibility with your existing hospital inventory.

Is the entire urology retractor system autoclavable?

Yes. All components—including the hinged segmented rings, table clamps, post joints, and individual blade faces—are made of premium surgical stainless steel and are fully compatible with standard hospital pre-vacuum steam autoclave cycles (134∘C / 273∘F).

Can we purchase individual replacement blades or segmented rings?

Yes. We supply individual urological components (including separate Renal Wylie blades, segmented rings, and tilt ratchets) to help you replace missing or worn items from existing hospital trays.

What advantage does the segmented ring offer during flank surgeries?

During lateral flank approaches for kidney surgery, the patient’s body surface is curved. The side hinges on the segmented ring allow the frame to flex downward over the patient’s side, matching their natural anatomy and providing better blade angles.

What is the average manufacturing lead time for wholesale orders?

Our average factory production, quality auditing, and packaging timeline for wholesale orders is 12 to 16 days from order confirmation.

How do I prevent rust or water spots on stainless steel retractors?

Ensure the sterile processing department washes all components with neutral-pH enzymatic detergents, rinses them with demineralized water, and dries all hinged joints thoroughly before autoclaving.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile. They are fully reusable, autoclavable, and must undergo standard hospital cleaning and sterilization before clinical use.
