What is the Bookwalter Retractor? History, Assembly, and Uses

Surgical exposure is one of the most important aspects of any open operation. Without a clear and stable view of the surgical site, surgical teams cannot perform deep-cavity procedures safely. For many decades, achieving this view meant relying on surgical assistants to hold heavy manual retractors for hours at a time, which often led to fatigue, uneven tension, and a crowded workspace. The development of the Bookwalter Retractor changed this completely by introducing a reliable, table-mounted system that holds incisions open mechanically. This comprehensive guide covers the history, main components, step-by-step assembly, and clinical applications of this essential surgical instrument.

What is a Bookwalter Retractor?

A Bookwalter Retractor is a specialized, table-mounted mechanical retractor system used by surgeons to maintain steady, hands-free exposure of deep surgical sites during major open operations. Unlike traditional handheld tools that require a person to pull back tissue continuously, or smaller self-retaining retractors that push against the edges of the skin, the Bookwalter system clamps directly onto the side rail of the operating table.

This table-mounted design transfers all the physical force of retraction away from both the patient’s body and the surgical staff to the heavy steel base of the operating table. Because it is modular, the system can be configured in various ways using a combination of vertical posts, horizontal bars, customizable ring frames, adjustable ratchets, and interchangeable blades to match the patient’s body shape and the specific needs of the incision.

History of the Bookwalter Retractor

To understand how much the Bookwalter Retractor improved open surgery, it helps to look at the challenges doctors faced in the mid-20th century. Before this system became widely available, open abdominal and pelvic operations required multiple surgical assistants or scrub nurses to stand around the operating table, pulling manual steel blades to keep the wound open.

Who Invented the Bookwalter Retractor?

The system was invented by Dr. John R. Bookwalter, an American general surgeon from Ohio. During his residency and early surgical practice in the 1970s, Dr. Bookwalter regularly noticed the limitations of the fixed abdominal frames used at the time. He found that existing mechanical models were often too bulky, difficult to adjust mid-operation, or prone to losing their grip when working deep inside the pelvic cavity. Working closely with medical engineers and instrument designers, Dr. Bookwalter created a simplified, ring-and-post framework that utilized quick-connect sliding ratchets. His design allowed a single surgeon to set up, adjust, and lock the retraction angles within a few seconds.

Why Was It Developed?

Dr. Bookwalter engineered his system to address three primary difficulties in the operating room:

• Assistant Fatigue: Holding a deep pelvic retractor blade with constant force for three or four hours is physically exhausting. As assistants grew tired, their hands naturally drifted, which could block the surgeon’s view or cause accidental tissue damage.
• Crowded Workspace: Having two or three assistants standing tightly around the incision left very little physical room for the lead surgeon and scrub nurse to move their hands and instruments cleanly.
• Unstable Retraction Pressure: Manual pulling is naturally uneven. The Bookwalter was designed to provide a flat, uniform, and constant mechanical hold, protecting delicate tissue margins from sudden shifts.

Introduced to the international medical marketplace in the late 1970s, his patented design quickly became a staple setup for open abdominal procedures worldwide.

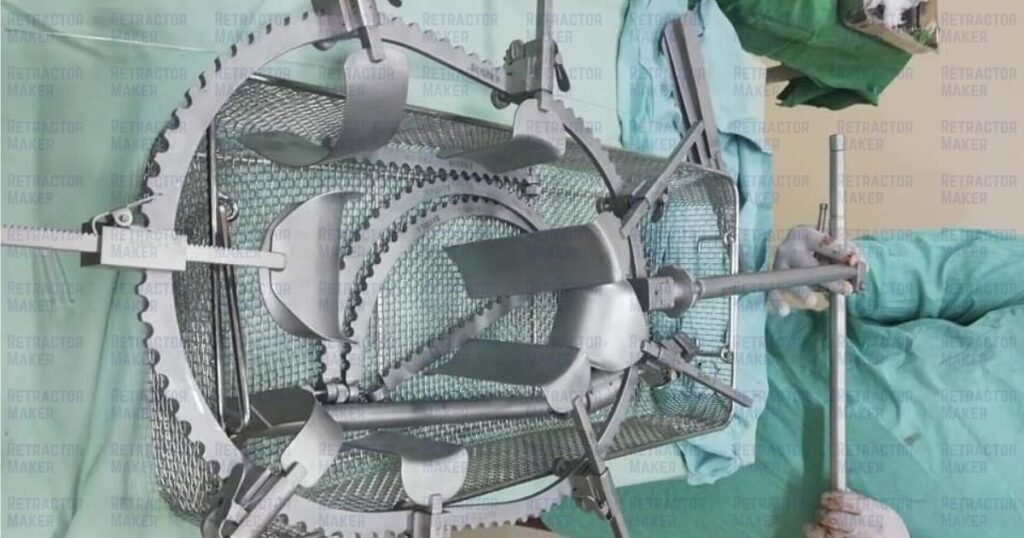

Main Components of a Bookwalter Retractor

The Bookwalter system is not a single tool, but rather an organized kit of interconnected structural elements. Each part has a specific mechanical role to play in building the final frame.

How Each Component Works

The system relies on a structural chain that starts at the table rail and ends inside the surgical wound:

• Post Coupler (Table Clamp): A heavy, solid block of machined steel that clamps directly onto the surgical table side rail. It serves as the foundation for the entire setup.
• Vertical Field Post: A thick steel rod that inserts into the post coupler, extending vertically beside the patient to provide height clearance above the sterile field.
• Horizontal Flex Bar: Connects to the top of the vertical post. It features adjustable joints that allow the horizontal arm to rotate, extend, and lock over the patient’s body.
• Ring Frames (Oval or Segmented): The structural loops that connect to the horizontal bar and hang directly above the incision. Oval rings are solid, rigid loops used for standard entries. Segmented rings feature built-in hinges, allowing the sides of the ring to fold upward or downward to match curved patient bodies.
• Slide-On Ratchets (Standard or Tilt): Mechanical clips that slide onto the perimeter ring. They hold the retractor blades and use a simple notch mechanism to pull and lock the blades backward. Tilt ratchets feature an extra gear hinge, letting the user angle a blade tip downward into deep anatomical corners.
• Retractor Blades: Solid metal plates or flexible strips that contact the tissue directly. They fit into the ratchets and pull the wound edges open.

Product Components Table

Component Name	Quantity in Standard Kit	Primary Function
Bookwalter Field Post (12″)	1	Provides vertical height from the table rail
Bookwalter Horizontal Bar	1	Extends the assembly over the patient
Bookwalter Post Coupler	1	Clamps the vertical post to the table rail
Bookwalter Horizontal Flex Bar	1	Allows angular adjustment of the ring frame
Bookwalter Standard Ratchets	2	Holds blades in a straight, flat line
Bookwalter Tilt Ratchets	7	Holds blades and allows downward angle adjustments
Medium Oval Ring	1	Provides a solid 360-degree frame around the wound
Medium Segmented Ring	1	Provides a hinged, adjustable frame around the wound
Sterilization Organizer Box	1	Holds all pieces safely during autoclaving

Step-by-Step Assembly Guide

Proper assembly is critical to ensure patient safety and maintain sterile field integrity. This guide outlines the standard method for setting up the system on an operating table.

How to Set Up a Bookwalter Retractor

1. Mount the Post Coupler: Locate the side rail of the operating table, roughly level with the patient’s hips or lower abdomen. Place the post coupler directly over the side rail and tighten the main mounting screw securely. Ensure the coupler is clamped over the sterile drapes onto a clean, uncovered portion of the side rail for a slip-free metal-on-metal grip.
2. Insert the Vertical Field Post: Insert the bottom of the vertical field post into the top hole of the mounted post coupler. Slide it down to the desired height, then tighten the coupler’s locking knob. Give the post a firm manual tug to ensure there is no vertical or rotational wobbling.
3. Attach the Horizontal Flex Bar: Slide the horizontal flex bar assembly onto the top of the vertical field post. Use the integrated swivel joint to orient the bar horizontally over the patient’s abdomen, then tighten the post connector knob firmly. Ensure the horizontal arm remains high enough above the patient’s skin to prevent any pressure points.
4. Secure the Ring Frame: Select the appropriate ring frame (oval or segmented) for the procedure. Connect the ring’s mounting arm to the clamping lock at the end of the horizontal flex bar. Align the ring so it sits level and centered directly over the surgical incision, then tighten the flex bar clamp to lock the entire frame rigidly in place.
5. Slide on Ratchets and Blades: Once the surgeon makes the initial incision, slide the standard or tilt ratchets onto the ring frame. Insert the selected retractor blades into the surgical wound margins, then slide the blade shafts into the waiting ratchet slots. Pull the ratchet levers outward to apply controlled, uniform retraction force, locking them into place once optimal exposure is achieved.

How Surgeons Use the System

During an active operation, surgeons use the Bookwalter system as an external skeleton. Because the ring frames encircle the incision, ratchets can be placed at any position around the perimeter (360 degrees). This allows the surgical team to pull tissues upward, outward, or at oblique angles simultaneously. By using a mix of shallow blades for superficial fat layers and deep or malleable blades for internal cavities, the surgeon can create a clear pathway directly to the target organ.

Common Surgical Procedures

The system is highly favored in major, deep-tissue open operations where wide visibility is mandatory.

Common Surgical Procedures Table

Surgical Specialty	Common Procedures	Primary Sourcing Category
General Surgery	Exploratory Laparotomy, Cholecystectomy, Bowel Resection, Gastric Bypass	General Surgery Retractors
Urology	Nephrectomy, Prostatectomy, Cystectomy, Kidney Transplantation	Urology Retractors
Gynecology	Total Abdominal Hysterectomy, Pelvic Mass Debulking, Ovarian Staging	Obstetrics & Gynecology Retractors
Vascular Surgery	Abdominal Aortic Aneurysm (AAA) Repair, Aortofemoral Bypass	General Surgery Retractors

Advantages and Limitations

While the Bookwalter system is a gold standard for abdominal and pelvic procedures, surgical teams must evaluate its performance characteristics alongside operating room considerations.

Advantages vs Limitations Table

Advantages of the Bookwalter System	Limitations and Considerations
Hands-Free Operation: Frees up assistants to focus on passing tools, suctioning, and surgical tasks.	Setup Time: Requires a few extra minutes during room preparation to assemble the post, bars, and rings correctly.
Rock-Steady Visibility: Holds tissues completely still, eliminating the natural shaking or drifting associated with human fatigue.	Risk of Over-Tensioning: Because mechanical ratchets apply force effortlessly, users must avoid over-tightening to protect tissue walls.
Reduced Tissue Trauma: Applies steady, constant mechanical pressure, which reduces localized bruising or tearing.	Component Tracking: A standard kit contains dozens of blades and ratchets that must be tracked and inventoried carefully.
Modular Versatility: Easily adjusts to accommodate pediatric, standard adult, or extra-deep bariatric patient bodies.	Storage Footprint: Requires dedicated tray space in the sterile processing department due to its multiple structural parts.

Available Blades and Accessories

The overall utility of the system relies heavily on its wide selection of interchangeable blades. Different shapes and depths are deployed depending on the thickness of the patient’s abdominal wall and the fragility of the internal organs.

• Kelly Blades: These are standard right-angled blades with smooth, blunt edges. They are used primarily to hold back thick muscle walls, subcutaneous fat layers, and abdominal margins safely without causing localized crushing or necrosis.
• Balfour Blades: Broad, deep-reaching blades designed to retract wide sections of the abdominal wall, frequently used at the lower or upper margins of a laparotomy incision.
• Harrington (Sweetheart) Blades: Featuring a distinctive heart-shaped tip lined with a smooth, wide lip, these are specialized for gently holding back deep, delicate internal organs like the liver or gallbladder.
• Malleable Blades: Crafted from ductile stainless steel alloys, these blades can be manually bent, curved, or twisted by the surgical team to navigate around irregular internal structures or protect fragile tissues safely.

Blade Sizes Table

Blade Type	Dimensions (Width × Depth)	Primary Clinical Sourcing Target
Balfour Blade	2⅝” × 3″ (6.7 × 7.6 cm)	Broad abdominal wall muscle retraction
Kelly Blade	2″ × 3″ (5.1 × 7.6 cm)	Superficial to medium fat layer holding
Kelly Blade	2″ × 4″ (5.1 × 10.2 cm)	Standard adult abdominal wall stabilization
Kelly Blade	2″ × 5″ (5.1 × 12.7 cm)	Deep adult muscle wall tracking
Kelly Blade	2″ × 6″ (5.1 × 15.2 cm)	Deep-cavity or thick abdominal wall exposure
Kelly Blade	2″ × 7″ (5.1 × 17.8 cm)	Extra-deep bariatric abdominal exposure
Malleable Blade	3″ × 6″ (7.6 × 15.2 cm)	Flexible visceral blocking and liver retraction
Malleable Blade	2″ × 6″ (5.1 × 15.2 cm)	Narrow, flexible tissue isolation and protection

Cleaning, Sterilization, and Maintenance

Because these instruments contact deep tissue cavities during high-exposure procedures, strict reprocessing protocols are essential to prevent cross-contamination and prolong the life of the steel components.

Cleaning and Sterilization Protocol

Directly after surgery, wipe down all components with a damp sterile cloth to prevent blood, fat, and tissue residues from drying on the metal surfaces or inside the ratchet gear teeth. Completely separate the post coupler, vertical post, flex bar, ring frame, ratchets, and individual blades.

Immerse all components in a neutral-pH enzymatic cleaning solution. Use a soft plastic bristle brush to clean inside the ratchet locking slots, gear tracks, and connection joints. Never use steel wool or wire brushes, as these will scratch the protective oxide layer of the stainless steel, leading to rust.

Place the disassembled pieces inside a medical thermal disinfector and run a standard cycle using clean, demineralized water. Ensure all parts are thoroughly dried before packaging. Arrange the completely dry, disassembled components inside their dedicated perforated sterilization case and run a standard high-temperature pre-vacuum steam autoclave cycle.

Technical Specifications Table

Parameter	Manufacturing and Sourcing Specification
Primary Material	Premium Medical-Grade Stainless Steel (Non-Magnetic)
Surface Finish	Anti-Glare Satin Matte Texture
Sterilization Method	Steam Autoclave Compatible (Pre-Vacuum / Gravity)
Standard Autoclave Parameters	134°C (273°F) for 4 to 5 minutes (Pre-Vacuum)
Compatibility Profile	Built to match standard industry-recognized dimensions
Kit Weight Classification	Heavy-Duty Operating Room Instrumentation Pool

Maintenance Tips

• Check the Ratchet Locking Teeth: Inspect the locking pawls and spring mechanisms on every ratchet before packaging. If the teeth are worn down or the spring tension is weak, replace the ratchet immediately to prevent slippage during surgery.
• Inspect Weld Joints and Swivels: Check the weld interfaces on the rings and vertical post coupler for microscopic cracks. Ensure all swivel joints rotate smoothly without grinding.
• Apply Approved Instrument Lubricant: Periodically apply a steam-permeable, water-soluble medical instrument lubricant (“instrument milk”) to the ratchet hinges and flex-bar adjustment joints.
• Use Demineralized Water: Always ensure your cleaning and autoclave steam networks utilize high-purity, demineralized water to prevent mineral scale deposits or spot staining.

Why Hospitals Choose Bookwalter Retractor Systems

Hospital procurement boards and theater managers prefer this system because it offers a highly predictable way to stabilize operating room efficiency. By converting manual tasks into a self-retaining mechanical process, the tool helps hospitals manage staffing shortages efficiently. Furthermore, because a single kit can adjust to fit pediatric, adult, or bariatric patient shapes, the hospital does not need to purchase multiple separate specialized frames for different departments.

Why Buy Directly from Retractor Maker

Sourcing your instruments directly from our specialized factory in Pakistan provides clear structural and logistical benefits:

• Specialized Manufacturing Focus: We do not manufacture thousands of unrelated general medical tools. Our entire facility, machinery, and design talent are dedicated exclusively to surgical retractors. This allows us to maintain tight tolerances, perfectly smooth blade borders, and highly reliable locking tracks.
• Cross-Inventory Compatibility: We build our bars, rings, ratchets, and blades to meet standard industry-recognized dimensions. This means you can use our individual components to replace missing or broken pieces in your existing hospital trays seamlessly.
• Efficient Production Timelines: With a dedicated workforce of over 50 skilled employees, we maintain an efficient and highly predictable average factory lead time of 12 to 16 days for wholesale orders.
• Direct Factory Sourcing: Eliminating third-party trading brokers allows international distributors, medical importers, and hospital networks to secure premium instrumentation directly from the source without hidden broker markups. We provide full international export support and secure freight packaging to ensure your shipments arrive safely and on schedule.

Frequently Asked Questions

What is a Bookwalter retractor used for?

The Bookwalter retractor system is a table-mounted, self-retaining device used to hold open incisions during major open surgical procedures, primarily within abdominal, urological, gynecological, and colorectal disciplines.

Are your Bookwalter blades interchangeable with existing industry-standard rings?

Yes. We manufacture all our Bookwalter Retractor components, ratchets, and blades to match standard industry dimensions, ensuring complete cross-compatibility with your existing hospital inventory.

Why is it called a Bookwalter retractor?

The system is named after Dr. John R. Bookwalter, an American general surgeon who developed and patented the modular table-mounted post-and-ring system in the late 1970s to solve the issues of assistant fatigue and unstable wound exposure.

Can a Bookwalter retractor be used for pediatric surgeries?

Yes. By swapping out standard adult ring frames and deep blades for smaller pediatric rings and shallow micro-blades, the system can be configured safely for pediatric abdominal or thoracic surgeries.

How do I prevent staining on my stainless steel surgical rings?

Staining is typically caused by mineral residue from the wash water or improper chemical dilution during preprocessing. Using neutral pH detergents, rinsing with demineralized water, and ensuring thorough drying before autoclaving will prevent surface staining.

What is the purpose of a tilt ratchet in the system?

A tilt ratchet features an extra internal gear hinge that allows the surgical team to angle the attached retractor blade tip downward or upward into deep tissue spaces, providing visibility under bone edges or heavy fat layers without moving the main ring frame.

Is the Bookwalter retractor system supplied pre-sterilized?

No. Like most heavy-duty reusable surgical instruments, the system is supplied non-sterile. It must undergo standard hospital cleaning, packaging, and steam autoclave sterilization before its first clinical use.

What is the average manufacturing lead time for a wholesale Bookwalter order?

Our average production, quality auditing, and packaging timeline for wholesale lots or complete kits is 12 to 16 days from order finalization.

What material handles the immense mechanical tension inside the frame?

We manufacture all our components using high-tensile, non-magnetic, medical-grade stainless steel. This alloy provides the structural strength required to maintain a wide operating field without bending, flexing, or losing ratchet grip.

Can I buy individual components or replacement blades instead of a full kit?

Yes. While we sell complete pre-configured abdominal kits, we also supply individual oval rings, tilt ratchets, field posts, and separate Kelly or Balfour blades to help you replenish broken or missing items from existing operating room trays.

Conclusion

The Bookwalter Retractor system remains one of the most successful innovations in modern open surgical exposure, delivering exceptional structural stability, modular flexibility, and hands-free field maintenance. By understanding its step-by-step assembly, material care requirements, and component functions, healthcare facilities can maximize the working life of these essential systems while preserving optimal operating room efficiency.

If you are looking to expand your surgical inventory, replace missing tray components, or view our complete line of specialized instruments, connect directly with Retractor Maker. Our sales engineering team is ready to evaluate your technical drawings, private-label requirements, or volume needs to provide an itemized, factory-direct price quote.
