What is the Omni Retractor? Setup, Components & Uses

In open surgery, achieving optimal visualization is one of the most critical factors for patient safety and clinical efficiency. For decades, surgical teams relied on manual retractors held by hand, which frequently led to physical fatigue, inconsistent tension, and a crowded operational workspace. The Omni retractor system solved these issues by creating a highly stable, table-mounted, self-retaining framework. Using a split-frame design that contours easily around the patient, it holds tissue and organs open mechanically, giving surgeons steady, hands-free exposure during complex open procedures. In this guide, we will break down the history, components, assembly process, and clinical uses of this essential surgical tool.

What is the Omni Retractor?

The Omni retractor is an advanced, table-mounted, self-retaining surgical retractor system designed to provide highly adjustable, low-profile, hands-free exposure during open abdominal, pelvic, and chest surgeries. Unlike traditional handheld tools that require an assistant to hold, or ring-shaped systems that have a fixed boundary, this setup centers around a unique split-arm frame.

By anchoring directly to the side rail of the operating table, it transfers all physical retraction pressure away from the patient’s body and onto the stable table base. This design leaves the surgical workspace completely open, letting surgeons place and angle multiple blades independently to secure deep-tissue visibility.

History of the Omni Retractor System

Surgical instrument designers created the Omni retractor to address the limitations of early frame-based exposure tools. While circular ring retractors worked well for standard, centered incisions, they often got in the way during lateral approaches or when operating on patients with highly curved abdominal walls.

Engineers realized that splitting the frame into a fork-like shape would allow the metal arms to flank the incision closely without blocking the surgeon’s hand movements. This realization led to the iconic split-frame layout, which quickly became a popular choice in hospitals worldwide due to its low profile and superior access.

Why Was the Omni Retractor Developed?

The Omni system was developed to prioritize three key operating room needs:

• Low-Profile Access: Surgeons working on shallow incisions or in tight areas needed a frame that sat flat and stayed close to the patient’s body to avoid crowding.
• Swivel Adaptability: Traditional rigid blades applied pressure to a single point, which could cause tissue bruising. The development of pivoting blade joints allowed the metal to conform naturally to the curves of internal tissues.
• Rapid Adjustment: Standard screw-on ratchets took too long to move during dynamic procedures. Quick-connect slide clamps were created so that scrub nurses and surgeons could snap blades on and off within seconds.

Main Components of the Omni Retractor

The Omni retractor is a modular system of interconnected metal components. When assembled over the operating table, these parts build a highly stable overhead support structure.

How Each Component Works

• Omni Clamp Sterile Field Post: The primary vertical post that clamps tightly over the sterile drapes onto the operating table rail. It forms the heavy-duty anchor point for the entire frame.
• Standard Wishbone Frame: A split, fork-shaped steel frame that attaches to the vertical post, extending over the patient to establish a low-profile border on both sides of the incision.
• Hinged Extension Arm: Adds extra range and flexibility, allowing the surgical team to bend or extend the frame over asymmetric patient bodies.
• SnapClamp Blade Holders: Quick-connect, spring-loaded clamps that snap directly onto any position of the Wishbone frame. They hold the blade shafts securely and slide easily for quick adjustments.
• Swivel Retractors: Specialized blades featuring swivel joints at the shaft-blade interface. This allows the blade to pivot inside the wound, adapting to curved tissues and protecting delicate organs from localized friction.

Omni Retractor Components Specification Table

Quantity	Component	Dimensions / Primary Function
1	Omni Clamp Sterile Field Post	Heavy-duty table rail clamp and post
1	Standard Wishbone Frame	Split fork-style structural ring frame
8	SnapClamp Blade Holders	Quick-connect, slide-on frame clamps
1	Hinged Extension Arm	19″ for extended reach and flexibility
2	Mayo Swivel Retractors	2¾″ × 2″ (7.0 × 5.1 cm)
1	Mayo Swivel Retractor	3½″ × 2″ (8.9 × 5.1 cm)
1	Fence Swivel Retractor	4″ × 6″ (10.2 × 15.2 cm) broad muscle wall blade
1	Splanchnic Swivel Retractor	2″ × 4½″ (5.1 × 11.4 cm) deep visceral blade
1	Splanchnic Swivel Retractor	2″ × 6″ (5.1 × 15.2 cm) deep visceral blade
2	Renal Vein Swivel Retractors	1″ × 6″ (2.5 × 15.2 cm) narrow vascular blades
1	Deaver Swivel Retractor	2¾″ × 4½″ (7.0 × 11.4 cm) curved blade
1	Malleable Slotted Swivel Retractor	2″ × 6½″ (5.1 × 16.5 cm) bendable strip
1	Malleable Slotted Swivel Retractor	3″ × 6½″ (7.6 × 16.5 cm) bendable strip
1	Harrington (Sweetheart) Swivel Retractor	2″ × 5″ (5.1 × 12.7 cm) heart-shaped blade
1	Wooden Storage Box	Customized case for organizing parts

Step-by-Step Omni Retractor Setup Guide

Setting up the Omni system requires precise, step-by-step assembly to ensure the frame remains rigid and safe during the procedure.

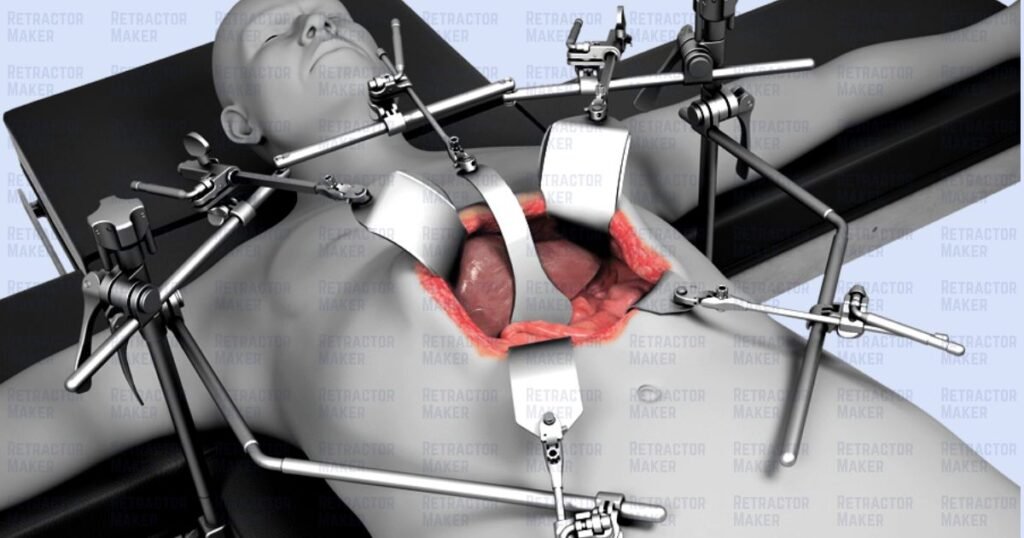

How to Assemble the Omni Retractor

1. Mount the Post Clamp: Position the Omni Clamp® over the side rail of the operating table, near the patient’s lower abdomen. Tighten the main mounting screw securely over the sterile drapes.
2. Insert the vertical Post: Place the vertical field post into the clamp hole and lower it to the desired working height. Tighten the post lock securely.
3. Attach the Wishbone Frame: Slide the mounting arm of the split Wishbone frame into the horizontal clamp at the top of the post or hinged extension arm.
4. Align over the Incision: Center the split frame over the patient, keeping it level and high enough to avoid pressing against the skin, then lock all joints.
5. Snap on the Blade Holders: Snap the required number of spring-loaded SnapClamp® blade holders onto the frame borders.
6. Position and Tension Blades: Insert the selected swivel retractors into the wound, slide their shafts into the SnapClamps, and adjust the tension to secure optimal exposure.

How Surgeons Use the Omni Retractor

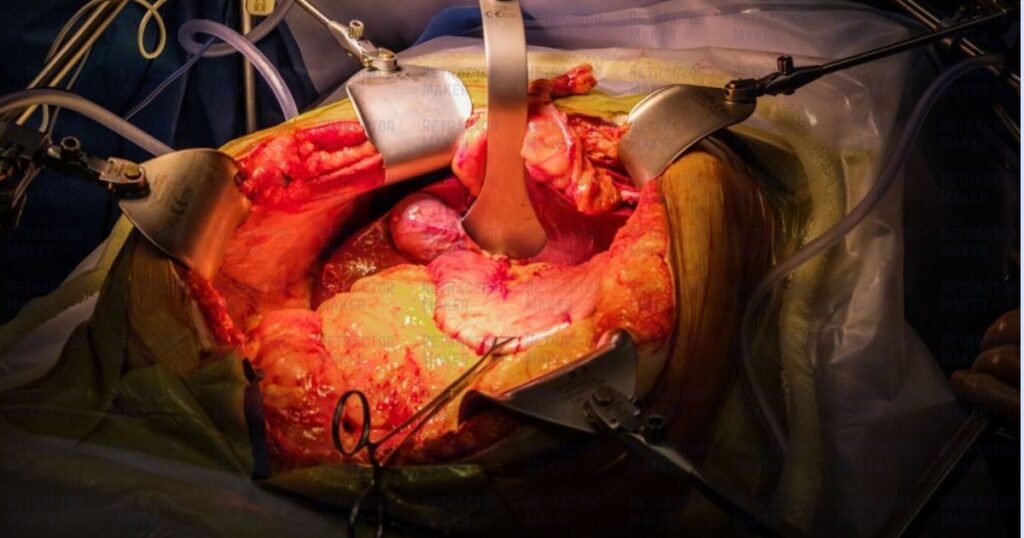

Surgeons use the Omni retractor to establish a hands-free, low-profile surgical field. Once the split Wishbone frame is locked in position, the surgeon can attach multiple blades to pull tissue in different directions.

Because the SnapClamp holders slide easily along the frame, the surgical team can adjust the retraction angle or swap out blades mid-operation without needing to dismantle the main structure. This flexibility is particularly useful during surgeries where the clinical focus moves from superficial tissue layers to deep, retroperitoneal cavities.

Common Surgical Procedures

The Omni retractor is highly versatile and is used across multiple surgical areas. When hospitals look to invest in General Surgery Retractors, this system is often a top priority.

Procedure Type	Typical Applications	Sourcing Category
General Surgery	Exploratory laparotomy, bariatric surgery, bowel resection	General Surgery Retractors
Urology	Nephrectomy, prostatectomy, kidney transplantation	Urology Retractors
Gynecology	Total abdominal hysterectomy, pelvic mass removal	Obstetrics & Gynecology Retractors
Vascular Surgery	Abdominal aortic aneurysm repair, aortofemoral bypass	General Surgery Retractors
Transplant Surgery	Donor nephrectomy, liver and kidney transplantation	Urology Retractors

Surgical Specialties

• General Surgery: Providing exceptional exposure for deep abdominal wall closures and gastric bypasses.
• Urology: Highly favored for maintaining a clear path to the kidneys and pelvic organs during complex reconstructions.
• Gynecology: Deployed regularly to hold back uterine and bowel structures safely during pelvic staging.
• Vascular Surgery: Providing wide, stable visibility around major blood vessels during aorta repairs.

Advantages of the Omni Retractor

The primary advantage of the Omni retractor is its low-profile split design. Unlike circular rings that can crowd the workspace, the Wishbone frame sits flat and splits around the wound, keeping the area above the patient clear.

The inclusion of swivel joints on the blades ensures that tissue tension is distributed evenly, protecting fragile organs from point-pressure injuries. Additionally, the spring-loaded SnapClamps allow for rapid blade positioning, reducing total operating room time.

Limitations and Considerations

While the Omni retractor offers excellent adaptability, the modular design means that operating room staff must be properly trained on the various components. Because a complete kit contains multiple small swivel blades and SnapClamps, sterile processing departments must manage and inventory the parts carefully to prevent missing pieces during surgical preparation.

Available Blades and Accessories

The Omni system uses specialized swivel-joint blades that pivot to fit patient tissues naturally.

Available Swivel Blade Options

• Mayo Swivel Blades: Standard right-angled blades used for broad muscle wall holding.
• Fence Swivel Blades: Wide, heavy-duty blades configured for deep abdominal wall muscle tracking.
• Splanchnic Swivel Blades: Deep, narrow blades designed to hold back internal organs gently.
• Renal Vein Swivel Blades: Ultra-narrow, smooth-edged blades engineered to retract fragile blood vessels safely.
• Deaver Swivel Blades: Curved blades used for deep abdominal layer elevation.
• Malleable Slotted Swivel Blades: Bendable metal strips that can be shaped manually to fit irregular organs.
• Harrington Swivel Blades: Heart-shaped blades specialized for deep, non-traumatic liver retraction.

Cleaning and Sterilization

Because these retractors are used in deep-cavity open operations, maintaining strict cleaning and sterilization protocols is essential to prevent infection and protect the surgical steel.

• Disassembly: Separate all table clamps, post bars, Wishbone frames, SnapClamps, and swivel blades completely before cleaning.
• Enzymatic Washing: Soak the disassembled parts in a neutral-pH enzymatic detergent. Use a soft plastic brush to clean inside the SnapClamp springs and swivel blade joint pivots.
• Rinsing: Rinse all pieces with demineralized water to prevent mineral scaling or spotting.
• Steam Autoclave: Package the dry parts inside the sterilization organizer box. Run a standard pre-vacuum steam autoclave cycle at 134°C (273°F) for 4 to 5 minutes.

Technical Specifications Table

Parameter	Manufacturing Sourcing Standard
Primary Material	Surgical-Grade Medical Stainless Steel (Non-Magnetic)
Surface Texture	Non-Reflective Satin Matte Finish
Frame Design	Split Wishbone® Geometry
Blade Mount Style	Swivel-Joint Articulation
Clamp Mechanism	Quick-Connect Spring-Loaded SnapClamp®
Reprocessing	Fully Reusable and Autoclavable (134°C Steam)
Case Packaging	Customized Wooden Organizer Box

Maintenance Tips

• Check Spring Tension: Regularly inspect the spring mechanism inside the SnapClamp holders to ensure they grip the frame tightly without slipping.
• Verify Swivel Pivot Motion: Test the swivel joints on the blades. They should pivot smoothly without grinding or loose wobbling.
• Avoid Harsh Abrasives: Never use wire steel brushes, as they scratch the metal’s passive outer layer, making it vulnerable to corrosion.
• Use Instrument Lubricant: Apply a water-soluble, steam-permeable instrument lubricant to the joint hinges periodically to preserve smooth articulation.

Why Hospitals Choose Omni Retractor Systems

Hospitals and clinical managers choose the Omni system because it combines durability with modular versatility. Instead of buying dozens of separate, fixed-frame retractors for general, vascular, and urological surgery, a facility can invest in a single Omni kit and purchase specialized swivel blades to fit different procedures. This modularity reduces inventory costs, saves storage space in sterile processing, and ensures the surgical team works with a system they know well.

Why Buy Directly from Retractor Maker

At Retractor Maker, we focus exclusively on manufacturing high-quality surgical retractors. We do not manufacture a broad catalog of general surgical tools; our entire machinery, craftsmanship, and quality inspections are dedicated to this single category.

• Precision Engineering: We forge our instruments using high-grade, non-magnetic stainless steel, ensuring exceptional mechanical strength and long-term durability.
• Cross-Inventory Compatibility: All our table posts, Wishbone frames, SnapClamps, and swivel blades are manufactured to meet standard industry-recognized dimensions, ensuring they integrate with your existing hospital systems.
• Direct Sourcing Efficiency: Buying directly from our facility eliminates middleman markups, providing medical importers, distributors, and hospital procurement boards with premium instrumentation at competitive wholesale prices.
• Reliable Logistics: Backed by a skilled workforce of over 50 employees, we maintain a predictable average factory production lead time of 12 to 16 days, supporting more than 500 satisfied customers globally with complete export and shipping documentation.

Frequently Asked Questions

What is an Omni retractor?

It is a modular, table-mounted, self-retaining surgical device that provides flat, low-profile, and hands-free wound exposure during open operations.

Is the Omni retractor system table-mounted?

Yes. It uses a heavy-duty table clamp to lock onto the operating table side rails for absolute stability.

What is the advantage of the Wishbone frame?

The split Wishbone frame extends around both sides of the incision, keeping the workspace above the patient clear and open.

Are your components compatible with other major brands?

Yes. We manufacture all our Omni Retractor parts, frames, and clamps to match standard industry-recognized dimensions.

Why do the retractor blades have swivel joints?

The swivel joint allows the blade to pivot inside the wound. This distributes retraction pressure evenly and adapts naturally to the curves of internal tissue.

Is the Omni retractor system autoclavable?

Yes. The entire system is fully reusable and compatible with standard hospital thermal washing and steam autoclave sterilization.

Does the kit include a storage case?

Yes. Our complete system comes packaged inside a customized wooden storage box for easy organization and safe transport.

What is the average lead time for a wholesale order?

Our average production, quality inspection, and packaging timeline is 12 to 16 days from order confirmation.

Can we buy individual replacement SnapClamps or blades?

Yes. We supply individual standard Wishbone frames, table posts, quick-connect SnapClamps, and various swivel blades to help you replace missing items.

Is the system supplied pre-sterilized?

No. All components are supplied non-sterile and must undergo standard hospital cleaning and sterilization before their first clinical use.

Conclusion

The Omni Retractor system remains one of the most practical and versatile exposure solutions in modern open surgery, delivering exceptional stability, low-profile access, and rapid blade adjustment. By choosing a high-quality modular system, healthcare facilities can stabilize procurement budgets while ensuring surgical teams have the precise visualization they need for optimal patient outcomes.
