Thompson Retractor vs Bookwalter Retractor: Differences, Features & Which One to Choose

The Bookwalter retractor is a table-mounted, self-retaining system for high-exposure open procedures, often compared with the Thompson system. Both provide steady, hands-free wound exposure and prevent human hand fatigue. Their main differences are framing and adjustment. Thompson uses independent, double-jointed arms, multi-directional crossbars, and micro-adjustable geared handles to pull specific tissues. Bookwalter uses a central closed ring, either oval or segmented, with slide-on ratchets that hold surgical blades. Choose according to your team's priorities: structural customization for deep, independent angles or a simple, rigid 360-degree perimeter frame.

Contents

What is a Thompson retractor?

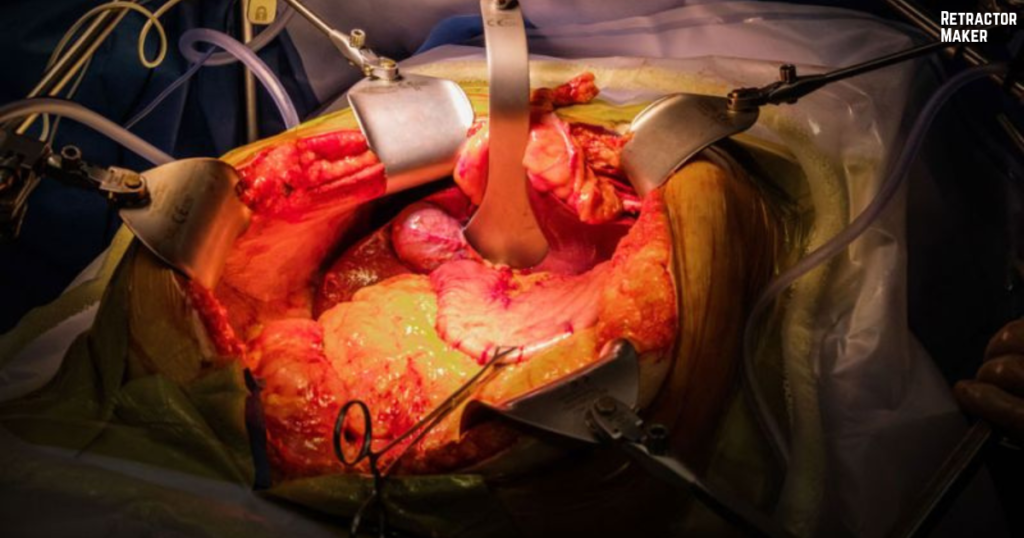

The Thompson retractor is a fully modular system for multi-directional, hands-free retraction. Instead of a fixed, pre-shaped ring, it uses separate mechanical arms and crossbars. Together, these form an adjustable overhead bridge.

Heavy-duty rail clamps secure the bars over the patient. Surgeons use independent handles with precise threaded dials to apply fine, incremental blade tension. Each blade can have its own depth, angle, and tension level. This arrangement is valued for large abdominal fields and specialized vascular exposures.

What is a Bookwalter retractor?

The Bookwalter retractor is a table-mounted, self-retaining system built around a central, closed perimeter ring. A solid post, coupler, and horizontal flex bar anchor it to the table side rails. The ring creates a rigid 360-degree boundary over the patient's abdomen.

Surgeons attach independent standard or tilt ratchets to the ring. These pull blades outward or at an angle to keep tissues cleanly retracted. The system's strong structure maintains wide abdominal and deep pelvic exposures for hours without slipping.

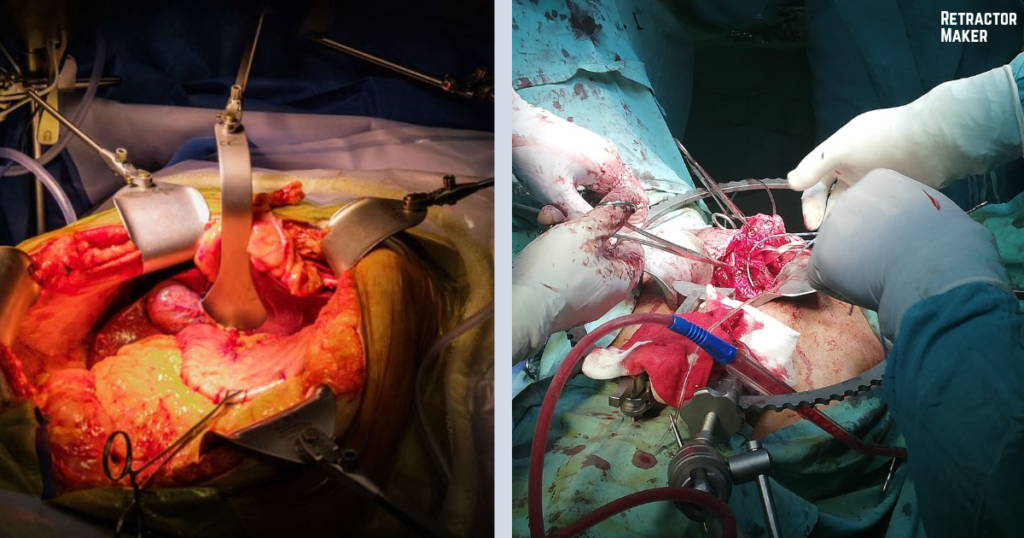

How do Thompson and Bookwalter systems compare?

Both systems use the operating table as a rigid anchor and eliminate manual hand-pulling. They differ in workspace layout and adjustment options.

• Thompson: multi-axis adjustment, independent arm lengths, and high-precision dial tensioning for deep, rigid cavities.
• Bookwalter: structural strength, continuous 360-degree perimeter retraction, and heavy-duty blade holding.

How do the frame designs differ?

Thompson creates an angular overhead framework, while Bookwalter uses a closed-loop boundary. Thompson connects straight or angled bars with joint blocks. The frame can extend high or wide to clear massive abdominal regions.

Bookwalter uses complete closed-loop rings, including oval or segmented hinged rings. They encircle the entire wound and ensure equal tension in all directions around the surgical perimeter. The ring can sometimes create a higher profile above the patient.

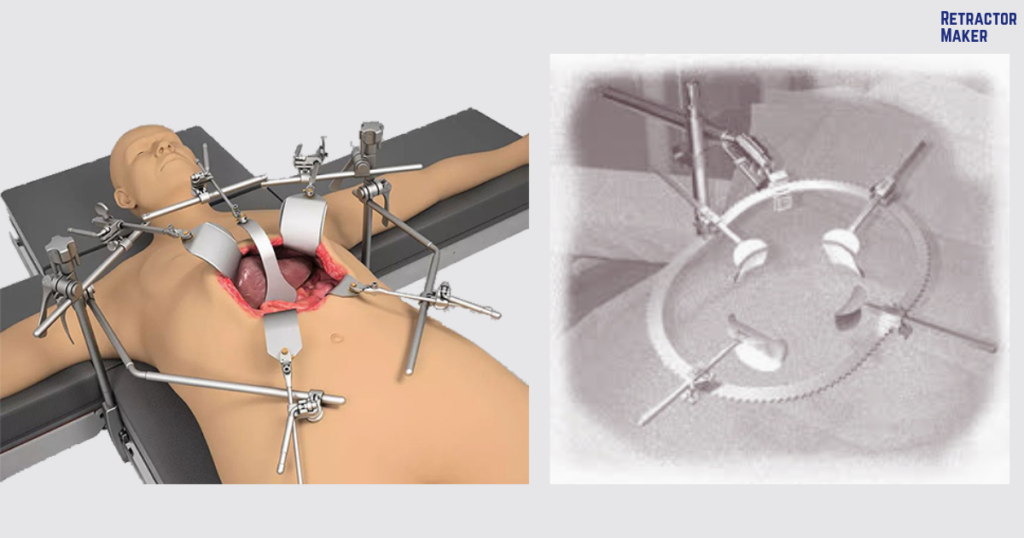

How do the table-mounting systems differ?

Both systems mount to table side rails, isolating retraction forces from the patient. Thompson uses a dual-post setup. Two heavy-duty rail clamps attach to opposite table sides. This distributes heavy vertical loads across a strong two-point bridge.

Bookwalter uses a single post clamp assembly. A modular horizontal flex arm projects and centers the ring frame across the entry site.

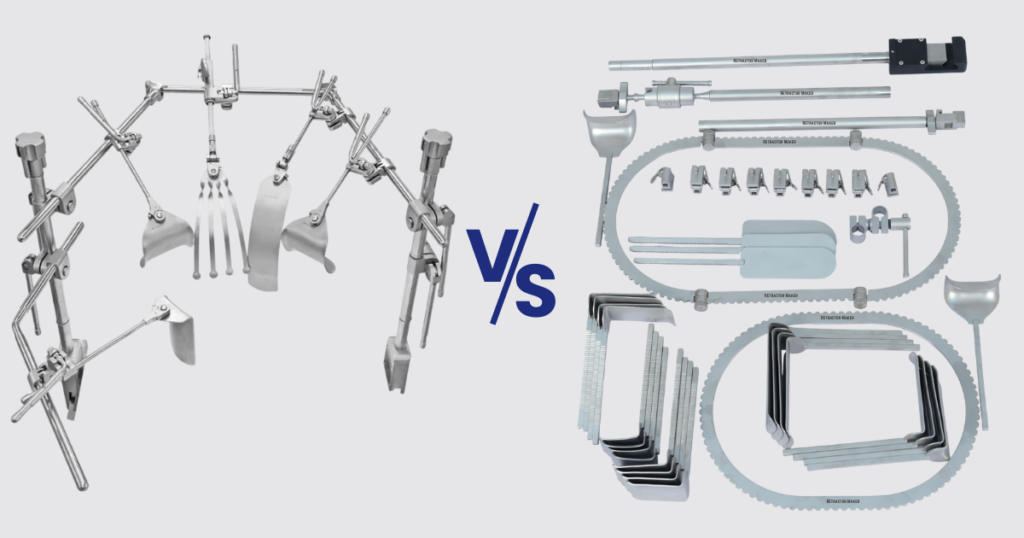

Which components come with each system?

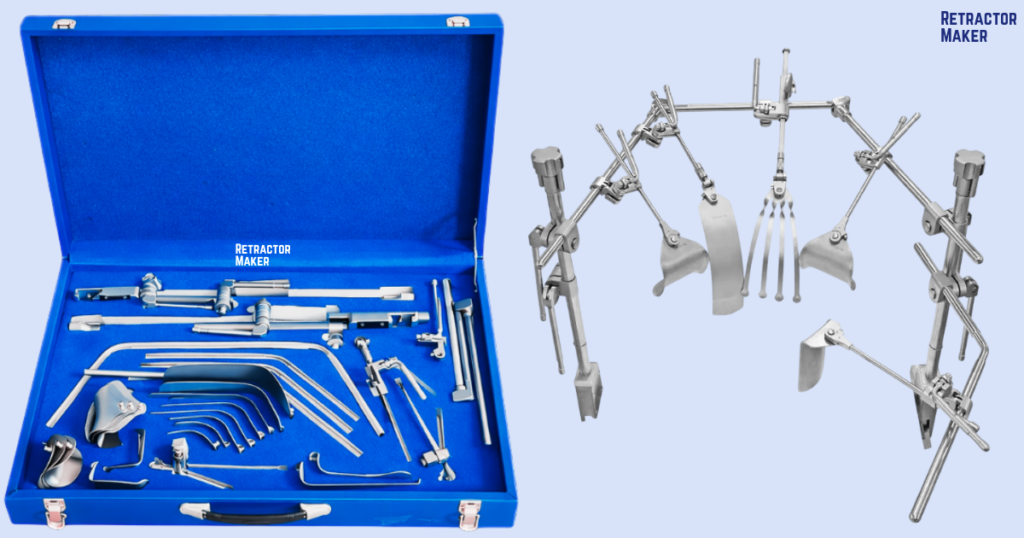

A standard Thompson kit includes heavy vertical rails, jointed extension bars, a hinged bilateral crossbar, and slide-on cam clips. It also includes micro-adjustable geared handles. A Bookwalter kit includes a single vertical field post, table post coupler, horizontal flex bar, and rigid perimeter rings. It also includes slide-on standard or tilt ratchets. Thompson blades enter independent, dial-controlled handles. Bookwalter blades slot directly into quick-locking sliding ratchets on the ring frame.

How do the blade options compare?

Thompson blades use standard right-angled rigid shafts that lock tightly into adjustable handles. They provide high-strength traction and a steady hold on large muscle blocks, including abdominal walls or thoracic boundaries.

Bookwalter blades use flat, slotted extensions that snap directly into standard or tilt ratchets. They provide a continuous, rigid hold across standard surgical shapes, including Kelly, Balfour, and malleable designs.

How are Thompson and Bookwalter systems set up?

• Thompson: tighten dual rail clamps, insert vertical bars, level the bilateral crossbar over the patient, and position cam clips before pulling blades back. Assembly requires multiple manual steps.
• Bookwalter: manually align and lock the single post coupler, vertical post, horizontal bar, and ring frame. Then slide ratchets onto the ring perimeter. Assembly is straightforward but requires alignment.

How do surgical exposure and stability compare?

Thompson provides high rigidity for heavy, deep-cavity operations through two-point table clamping. Lockable gear joints prevent flexing or listing, even under extreme lateral traction forces. Bookwalter provides a reliable, concentrated exposure area with 360-degree perimeter retraction. Its single-post design is well suited to pelvic work. Under massive abdominal wall tension, Thompson handles physical loads better. Its two-point anchoring reduces localized frame strain.

How can blade positions change during surgery?

• Thompson: extensive spatial customization lets each bar joint rotate, lengthen, or angle independently. Move a blade holder laterally by sliding it along the crossbar path.
• Bookwalter: special tilt ratchets adjust blade shaft tilt. Reposition a blade by sliding its ratchet along the ring perimeter or removing it and snapping it onto another section.

What are the common surgical applications?

Typical surgical procedures: comparison table

What are each system's advantages and limitations?

Advantages and limitations: comparison table

Side-by-side system comparison table

Technical specifications table

Which system should your team choose?

Choose according to your surgical needs, operating room workflow, clinical focus, and setup preferences.

When should you choose the Thompson retractor?

• Your facility performs many large-field transplant operations, hepatobiliary resections, and complex vascular repairs requiring high, independent tension.
• Your surgeons need millimeter-specific blade tension control through manual threaded dials that gradually retract tough muscle layers.
• You need a dual-clamp framework that remains rigid under maximum physical loads without shifting.

When should you choose the Bookwalter retractor?

• Your operating suites perform many major open abdominal surgeries, exploratory laparotomies, and deep pelvic operations such as total hysterectomies.
• You need a very rigid frame that maintains constant, heavy tension on thick muscle walls without joint play.
• Your staff prefers a classic, simple post-and-ring setup with sliding ratchets.

Why do hospitals buy from Retractor Maker?

Retractor Maker makes only surgical retractors, rather than a broad range of general surgical tools. Our facility, machinery, and quality checks focus solely on this category.

• Guaranteed compatibility: our posts, crossbars, rings, ratchets, and blades match standard industry dimensions. They replace missing or broken components and fit cleanly into existing hospital trays.
• Materials: high-tensile, Premium Grade AISI 304/316 Stainless Steel (Non-Magnetic) ensures frames and clamps resist bending and maintain tight mechanical tolerances under load.
• Direct factory sourcing: purchasing from our Pakistan facility lowers procurement costs by removing third-party trading brokers.
• Reliable lead times: over 50 skilled employees support over 500 global customers. Average bulk-order production lead time is 12 to 16 days, with complete export documentation.

Summary: matching the system to your surgical needs

Both Thompson and Bookwalter systems provide strong surgical exposure and help operating room teams work with greater precision, safety, and efficiency. Choose according to your primary surgical specialties, surgeon preferences, and the specific exposure demands of your cases.

Bookwalter retractor and Thompson system sourcing gives clinical teams direct factory access to both systems through Retractor Maker. We supply durable, high-precision instruments that meet standard industry dimensions.

Our team can help you upgrade surgical suites, replenish missing components, or find a reliable factory supplier.
