What is the Omni Retractor? Setup, Components & Uses

The Omni retractor system is a stable, table-mounted, self-retaining framework that holds tissue and organs open mechanically during open surgery. Good visualization is vital for patient safety. Earlier reliance on manual retractors caused fatigue and clutter; this system addressed both issues. Its split-frame design contours around the patient and gives surgeons steady, hands-free exposure during complex procedures. This guide covers its history, parts, assembly, and clinical uses.

Contents

What Is the Omni Retractor?

The Omni retractor is an advanced, adjustable, low-profile system that mounts to the operating table for self-retaining, hands-free exposure. It supports open abdominal, pelvic, and chest surgeries. Handheld tools require an assistant, while ring systems have fixed boundaries. This system instead uses a distinctive split-arm frame.

The frame anchors directly to the operating table side rail. This transfers all retraction pressure to the stable table, keeping pressure off the patient's body. The surgical workspace remains fully open. Surgeons can independently place and angle multiple blades to maintain deep-tissue visibility.

How Did the Split-Frame System Develop?

Designers created the Omni retractor to address the limitations of early frame-based exposure tools. Circular ring retractors worked for centered incisions but hindered lateral approaches. They also struggled to accommodate curved abdominal walls.

Engineers divided the frame into a fork shape so its arms could closely flank the incision without blocking the surgeon's hand movements. This produced the recognizable split-frame layout. Its low profile and access made the design popular.

Why Was the Omni Retractor Developed?

The Omni system addressed three key operating room needs: low-profile access, swivel adaptability, and rapid adjustment.

• Low-profile access: A flat frame close to the patient avoids crowding shallow incisions or tight areas.
• Swivel adaptability: Rigid blades concentrated pressure at one point and could bruise tissue. Pivoting blade joints were developed to follow internal tissue curves.
• Rapid adjustment: Slow screw-on ratchets prompted quick-connect slide clamps, allowing scrub nurses and surgeons to snap blades on or off quickly.

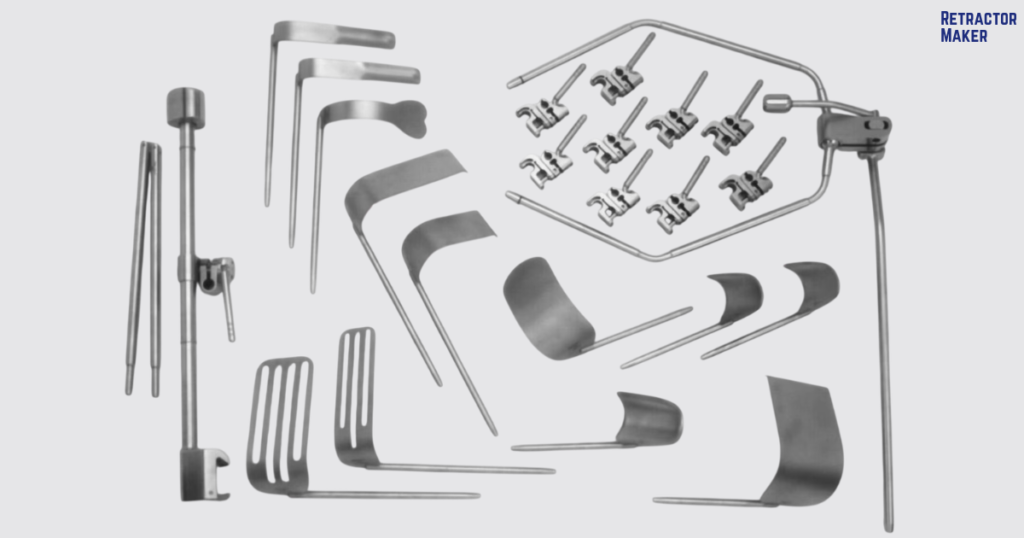

What Are the Main System Components?

The Omni retractor is a modular system of interconnected metal components. Assembled over the operating table, these parts form a stable overhead support structure.

How Does Each Component Work?

• Omni Clamp Sterile Field Post: The main vertical post clamps tightly to the operating table rail, forming the frame's heavy-duty anchor point.
• Standard Wishbone Frame: A split, fork-shaped steel frame attaches to the vertical post and extends over the patient, creating a low-profile border on both sides of the incision.
• Hinged Extension Arm: Adds range and flexibility so the team can bend or extend the frame to accommodate asymmetric patient bodies.
• SnapClamp Blade Holders: Quick-connect, spring-loaded clamps snap onto any part of the Wishbone frame, hold blade shafts securely, and slide easily.
• Swivel Retractors: Specialized blades with joints at the shaft-blade interface pivot inside the wound to follow curved tissues and protect delicate organs from friction.

Component Specifications Table

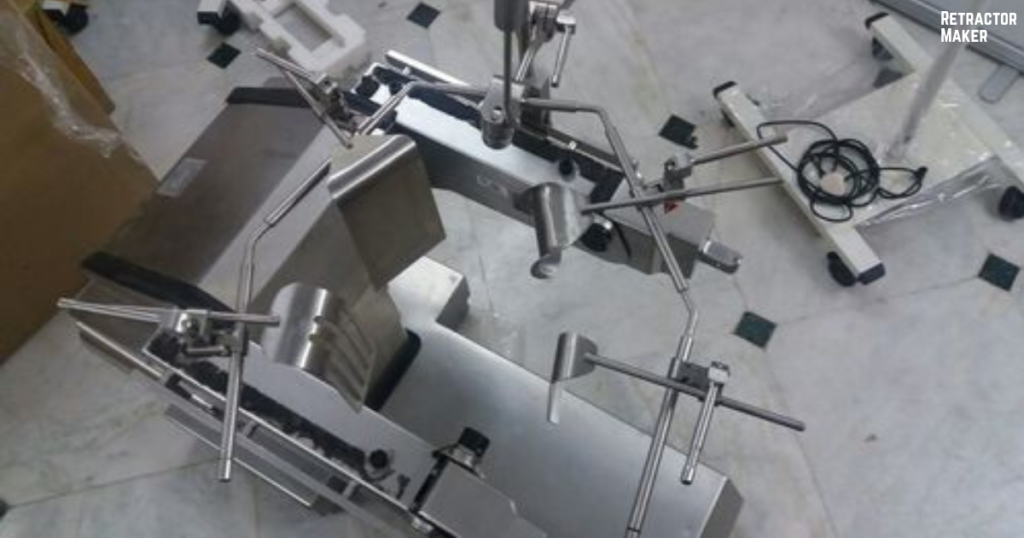

Step-by-Step Omni Retractor Setup

Precise setup steps keep the Omni system's frame rigid and safe.

How Is the System Assembled?

1. 1Mount the post clamp: Place the Omni Clamp® over the table side rail near the patient's lower abdomen. Tighten the mounting screw over the sterile drapes.
2. 2Insert the vertical post: Place the vertical field post into the clamp hole, lower it to the desired working height, and securely tighten the post lock.
3. 3Attach the Wishbone Frame: Slide the split Wishbone frame's mounting arm into the horizontal clamp on the post or extension arm.
4. 4Align over the incision: Center the split frame over the patient. Keep it level and high enough to avoid skin pressure, then lock all joints securely.
5. 5Snap on the blade holders: Attach the needed number of SnapClamp® blade holders to the frame borders.
6. 6Position and tension blades: Insert selected swivel retractors into the wound and slide their shafts into the SnapClamps. Adjust blade tension for optimal exposure.

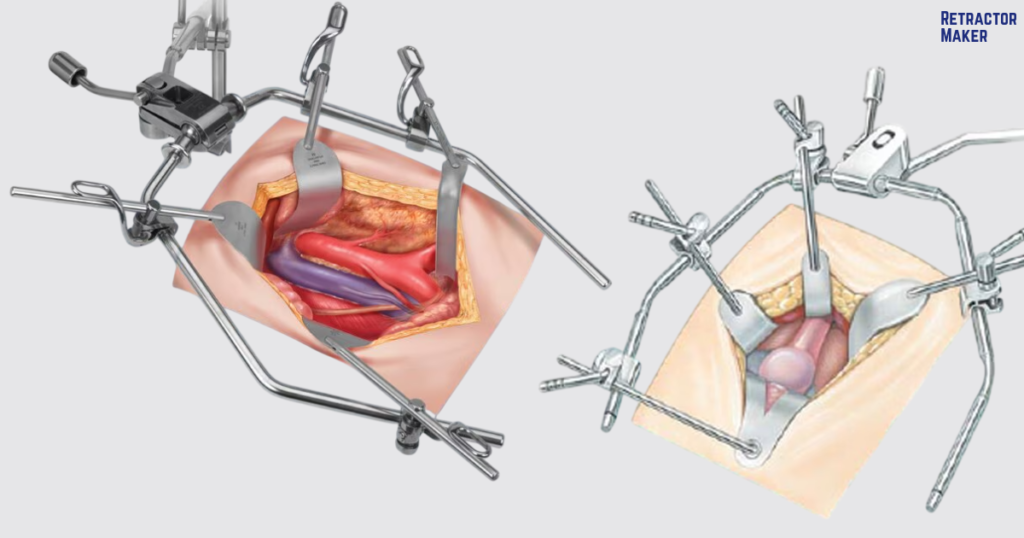

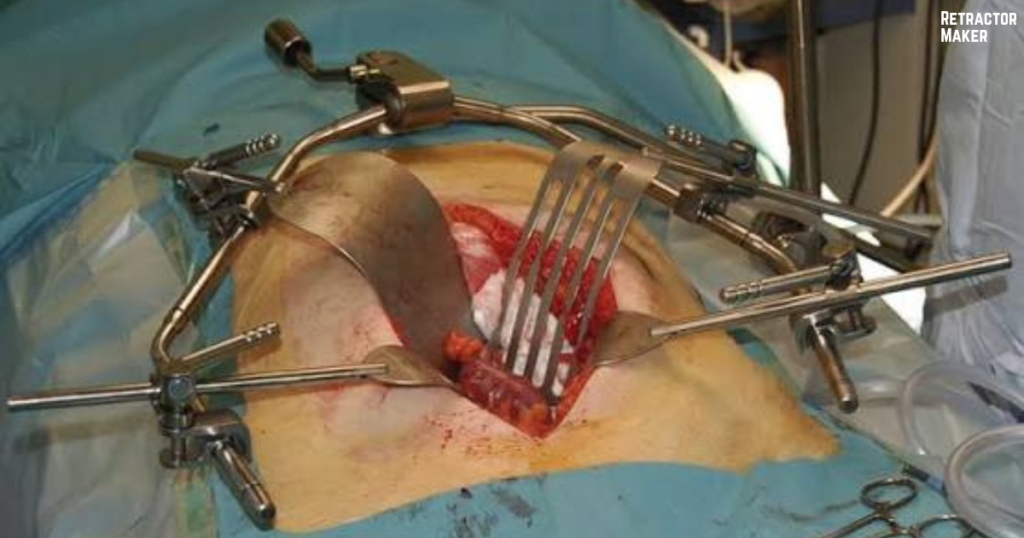

How Do Surgeons Use the System?

Surgeons use the Omni retractor to create a hands-free, low-profile surgical field. After locking the Wishbone frame, they attach multiple blades to pull tissue in different directions.

SnapClamp holders slide easily along the frame. Teams can change blade angles or swap blades during an operation without dismantling the structure. This flexibility helps when the surgical focus shifts, including from superficial to deep tissues.

Which Surgical Procedures Use the System?

The Omni retractor serves many surgical areas, and hospitals prioritize it among general surgery retractors. Its versatility supports the specialty uses below.

Uses by Surgical Specialty

• General surgery: Provides clear exposure for deep abdominal wall closures and is also used for gastric bypasses.
• Urology: Maintains a clear path to kidneys and pelvic organs during complex reconstructions.
• Gynecology: Regularly holds uterine and bowel structures safely aside during pelvic staging.
• Vascular surgery: Provides wide, stable visibility around major blood vessels during aorta repairs.

What Are the Advantages of the Omni Retractor?

The Omni retractor's main advantage is its low-profile split design. Circular rings can crowd the workspace. The Wishbone frame sits flat and divides around the wound, keeping the area above the patient clear.

Blade swivel joints maintain even tissue tension and protect fragile organs from pressure injuries. Spring-loaded SnapClamps allow fast blade positioning, reducing total operating room time.

What Limitations Should Teams Consider?

The Omni retractor requires staff training because of its modular design, despite its adaptability. A complete kit contains many small blades and SnapClamps. Sterile processing teams must manage these parts carefully to prevent missing pieces during surgical preparation.

Available Blades and Accessories

Which Swivel Blade Options Are Available?

• Mayo Swivel Blades: Standard right-angled blades that hold broad muscle walls.
• Fence Swivel Blades: Wide, heavy-duty blades that track deep abdominal wall muscles.
• Splanchnic Swivel Blades: Deep, narrow blades that gently hold back internal organs.
• Renal Vein Swivel Blades: Ultra-narrow, smooth-edged blades that safely retract fragile blood vessels.
• Deaver Swivel Blades: Curved blades that elevate deep abdominal layers.
• Malleable Slotted Swivel Blades: Bendable metal strips shaped to fit irregular organs.
• Harrington Swivel Blades: Heart-shaped blades specialized for non-traumatic liver retraction.

How Do You Clean and Sterilize the Omni Retractor?

The Omni retractor is a modular system used for exposure in deep-cavity operations. Strict cleaning and sterilization prevent infection and protect the steel.

• Disassembly: Completely separate all clamps, posts, frames, SnapClamps, and blades before cleaning.
• Enzymatic washing: Soak disassembled parts in neutral-pH enzymatic detergent. Use a soft brush to clean inside SnapClamp springs and swivel blade pivots.
• Rinsing: Rinse every piece with demineralized water to prevent mineral scaling or spotting.
• Steam autoclave: Package dry parts in the sterilization organizer box. Run a standard pre-vacuum steam autoclave cycle at 134°C (273°F) for 4 to 5 minutes.

Technical Specifications

How Should You Maintain the System?

• Check spring tension: Inspect the SnapClamp spring mechanism regularly. Confirm that it grips the frame tightly without slipping.
• Verify swivel pivot motion: Test blade swivel joints for smooth movement without grinding or loose wobbling.
• Avoid harsh abrasives: Never use wire steel brushes. They scratch the metal's outer layer and make it prone to corrosion.
• Use instrument lubricant: Periodically apply water-soluble, steam-permeable lubricant to joint hinges to preserve smooth articulation.

Why Do Hospitals Choose Omni Retractor Systems?

Hospitals choose the Omni system for durability and versatility. One Omni kit covers general, vascular, and urological surgery. Hospitals can buy specialized swivel blades as needed. This modular design lowers inventory costs and saves storage space. Surgical teams can work with a familiar system.

Why Buy Directly from Retractor Maker?

Retractor Maker focuses on surgical retractors rather than making many general surgical tools. Our machinery, craftsmanship, and quality inspections focus only on this category.

• Precision engineering: We forge instruments from high-grade, Premium Grade AISI 304/316 Stainless Steel (Non-Magnetic) for strength and long-term durability.
• Cross-inventory compatibility: Our posts, frames, SnapClamps, and blades meet industry dimensions and integrate with existing hospital systems.
• Direct sourcing efficiency: Buying directly removes middleman costs. Importers, distributors, and hospitals receive premium tools at wholesale prices.
• Reliable logistics: Over 50 employees support predictable production, with an average lead time of 12 to 16 days. We serve over 500 global customers and provide full export and shipping documents.

Open Surgery Access and Modular Procurement

The Omni Retractor system provides stability and low-profile access in open surgery. It is versatile and practical, with blades that adjust rapidly. A high-quality modular system stabilizes procurement budgets and ensures precise visualization for surgeons. This supports optimal patient outcomes.

Retractor Maker supports surgical suite upgrades and replenishment of missing components. We also provide reliable direct-factory supply.
