What Is the Greenberg Retractor? Types, Uses, Assembly & Components Guide
Author: Saad Shahid · Updated · 15 min read
The Greenberg Retractor is a modular neurosurgical retraction system used for stable, hands-free exposure in cranial and microsurgical procedures. This guide explains its types, components, blade selection, assembly, uses, and care.
Retractors discussed in this guide: Greenberg Retractor, Greenberg Retractor Kit, Greenberg Simplicity Retractor. Browse all surgical retractors.
A Greenberg Retractor is a specialized, self-retaining neurosurgical system that provides stable, hands-free tissue retraction during cranial, skull base, and microneurosurgical procedures. It anchors directly to rigid skull fixation frames. This removes mechanical weight from the surgical margins and maintains precise, low-pressure exposure of brain tissue.
Contents
What Is the Greenberg Retractor?
The Greenberg Retractor is a modular, table-and-clamp-anchored platform for brain and spinal surgery. Unlike general surgical retractors that depend on manual tension or static bed posts, it creates a rigid primary and secondary framework above the craniotomy site.
The framework supports multi-axis articulating arms that hold soft, malleable tapered blades. These blades maintain steady traction on brain tissue without drifting. Skull-clamp support keeps the system from resting on soft tissue. This prevents focal brain compression, reduces assistant fatigue, and keeps the micro-dissection field clear under the operating microscope.
Who Developed the Greenberg Retractor?
Before self-retaining brain retractors, neurosurgeons used hand-held spatulas held by surgical assistants. Manual retraction carried significant risks. Subtle hand tremors, fatigue during long procedures, and sudden pressure shifts could cause tissue contusions or ischemia in fragile brain structures.
Dr. I. Edward Greenberg developed the system to address these mechanical challenges. He designed a multi-jointed, table-isolated arm network anchored directly to rigid skull clamps. His design introduced three key additions:
- Multi-level floating bar frame surrounding the craniotomy without blocking lighting or optics.
- Articulating friction arms with single-dial locking mechanisms for multi-angle control.
- Double-ended malleable blades tapering to micro-widths to protect brain tissue.
Today, the system remains a fundamental tool in neurosurgical operating rooms worldwide.
Why Do Neurosurgeons Use Self-Retaining Systems?
Neurosurgeons use self-retaining systems to maintain clear access through narrow anatomical channels while protecting sensitive neural and vascular tissue. Four primary reasons guide their use in cranial microsurgery:
How Is Hands-Free Exposure Maintained?
The articulated arms lock firmly in place once positioned. This eliminates movement caused by assistant fatigue during multi-hour tumor or aneurysm surgeries.
How Is Retraction Pressure Distributed?
Soft-annealed malleable blades conform to anatomical contours and spread retraction forces evenly across a broader surface area. This addresses brain tissue’s sensitivity to focal pressure.
How Can Surgeons Adjust Blade Position?
Individual flex arms move along vertical, horizontal, and angled trajectories. Surgeons can adjust blade depth and angle without moving the main mounting posts.
How Does the Framework Organize the Workspace?
Elevated support bars keep mechanical joints away from the primary line of sight. Integrated accessories, including handrests and sponge trays, organize instruments directly above the field.
What Are the Main System Components?
The framework includes primary bars and clamps, secondary bars, articulating flex arms, blades, hand rests, pattie trays, and sterilization cases. Understanding these components helps operating room teams assemble the system quickly and maintain proper sterile field management.
Primary Bars and Clamps
Primary bars and clamps form the rigid foundation. Heavy-duty clamping blocks lock them directly onto the upright posts of a rigid head holder, such as a Mayfield® frame.
Floating Secondary Bars
Secondary bars connect to the primary supports and form an adjustable perimeter above the craniotomy site. They provide mounting tracks for retraction arms, handrests, and utility trays.
Articulating Flex Arms
Multi-jointed friction arms use interconnected ball-and-socket links for positioning. A central tightening dial controls joint tension. The arms adjust fluidly when loose and hold rigidly when locked.
Malleable Tapered Blades
Double-ended blades are forged from soft stainless steel and taper from a wide base to a narrow tip. Surgeons bend them by hand to match deep brain corridors.
Hand Rests
Hand rests provide a stable platform for the surgeon’s forearms to reduce tremors during micro-dissections. They mount on the secondary bars above the wound.
Pattie Trays
Perforated aluminum pattie trays hold saline-soaked cottonoids, neuro-patties, and micro-instruments within easy reach. They clamp directly to the framework.
Sterilization Cases
Heavy-duty, perforated organizer trays protect jointed mechanisms. They hold components securely during washing and steam autoclaving.
System Component Specifications
The following table lists the dimensions and functions of individual system components:
| Component | Dimensions / Specifications | Primary Function |
|---|---|---|
| Primary Bars | 6 in (15 cm) | Mounts directly to rigid skull clamp posts |
| Secondary Bars | 12 in (30 cm) | Creates an elevated perimeter frame over the wound |
| Long Retractor Arms | 9.5 in (24 cm) | Articulating friction arms that hold retractor blades |
| Hand Rests | 10 in (25 cm) | Supports the surgeon’s forearms during microsurgery |
| Pattie Tray | 3 in × 6.75 in (7.5 cm × 16.8 cm) | Holds cottonoid patties and small tools nearby |
| Tapered Blade 1 | 9 in × 0.25 in to 0.75 in (6 mm to 19 mm) | Extra-wide blade for broad cortical protection |
| Tapered Blade 2 | 9 in × 0.15 in to 0.62 in (4 mm to 16 mm) | Medium blade for lobar and subtemporal access |
| Tapered Blade 3 | 9 in × 0.12 in to 0.50 in (3 mm to 12.5 mm) | Standard blade for deep interhemispheric corridors |
| Tapered Blade 4 | 9 in × 0.09 in to 0.37 in (2.4 mm to 9 mm) | Fine blade for narrow skull base pathways |
| Tapered Blade 5 | 9 in × 0.06 in to 0.25 in (1.5 mm to 6 mm) | Micro-blade for delicate nerve and vessel separation |
| Sterilization Tray | 17 in × 10 in × 2.5 in (43 cm × 25 cm × 6.3 cm) | Holds and organizes components during autoclaving |
What Types of Greenberg Retractor Systems Are Available?
Available configurations range from full modular frameworks to streamlined, quick-mount kits. These manufacturing options suit different surgical setups.

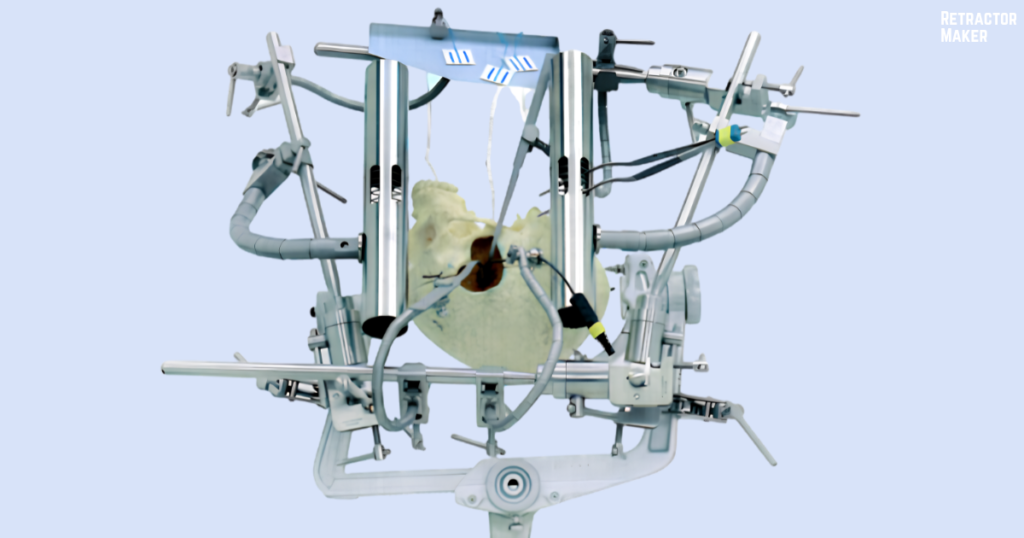

Greenberg Retractor
The standard Greenberg Retractor provides a complete modular framework. It includes primary support bars, floating secondary rails, multiple retraction arms, double handrests, a pattie tray, and a full set of malleable blades. Operating teams have full flexibility to adjust frame angles for complex skull base procedures.

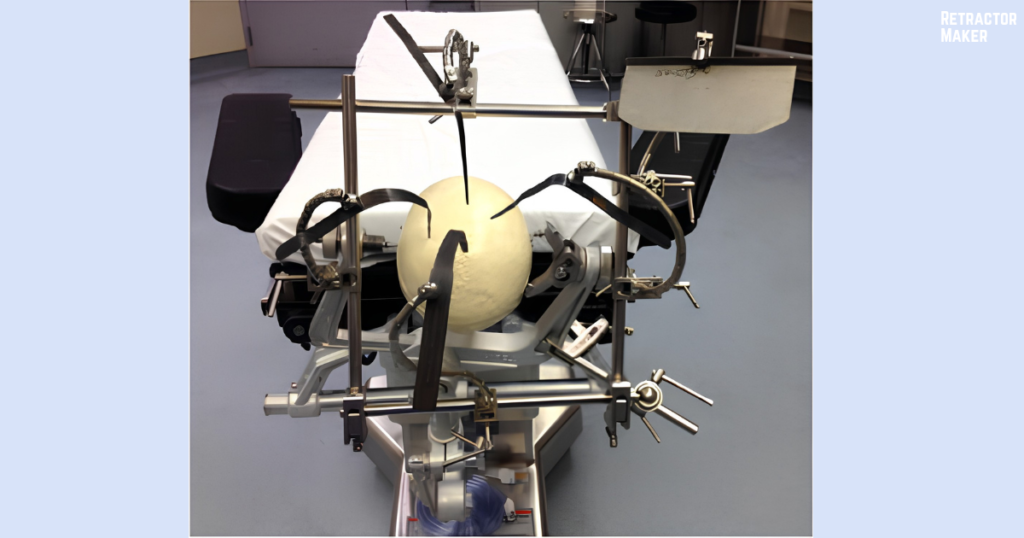

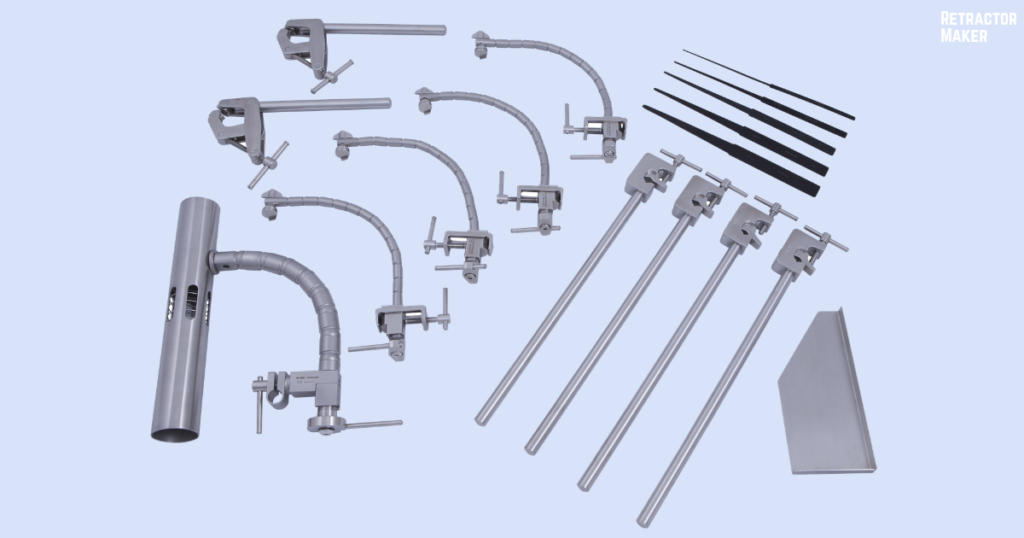

Greenberg Retractor Kit
The Greenberg Retractor Kit provides a complete, pre-configured system in a dedicated sterilizing tray. It includes specialized primary clamps that adapt to various rigid skull frames, secondary extension bars, four retraction arms, hand support, a pattie tray, and five tapered blades. It is designed for surgical departments that need a complete, packaged set ready for immediate deployment.

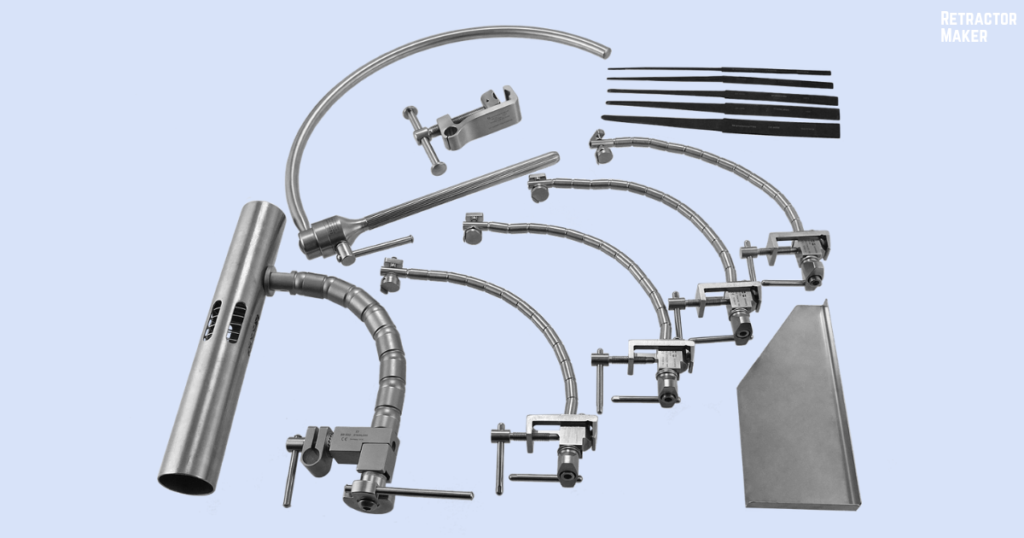

Greenberg Simplicity Retractor
The Greenberg Simplicity Retractor is a compact configuration for fast setup and a small spatial footprint. It includes a single primary bar, one floating secondary rail, four articulating arms, a hand rest, a pattie tray, and five malleable blades. It provides full micro-retraction capabilities while cutting frame assembly time in half.
How Do the Three Systems Compare?
The table below compares the specifications, components, and applications of the three systems:
| Feature | Standard Greenberg Retractor | Greenberg Retractor Kit | Greenberg Simplicity Retractor |
|---|---|---|---|
| Primary Framework | Dual 6 in (15 cm) primary bars | Dual heavy-duty primary clamps | Single 6 in (15 cm) primary bar |
| Secondary Tracks | Quadruple 12 in (30 cm) bars | Four secondary extension bars | Single 12 in (30 cm) floating bar |
| Flex Arm Count | 4 Long Retractor Arms | 4 Long Retractor Arms | 4 Long Retractor Arms |
| Hand Support | Dual 10 in (25 cm) handrests | Single 10 in (25 cm) hand rest | Single 10 in (25 cm) hand rest |
| Utility Accessories | Pattie tray & sterilizing tray | Pattie tray & sterilizing case | Pattie tray & compact storage box |
| Average Setup Time | 6 to 10 minutes | 5 to 8 minutes | Under 3 minutes |
| Footprint Size | Full 360-degree perimeter | Standard full perimeter | Low-profile, single-side mount |
| Best Application | Complex bilateral skull base procedures | Comprehensive intracranial surgery | Focused craniotomies & keyhole surgery |
| Primary User | Major hospital neurosurgery ORs | Surgical centers & hospital inventory | Ambulatory centers & training units |
How Do You Assemble the Greenberg Retractor?
Assemble the framework in the sequence below to ensure structural stability and maintain the sterile field:
Step 1: Prepare the Skull Fixation System
Ensure the patient’s head is securely immobilized in a rigid skull clamp, such as a Mayfield® head holder. Confirm that all clamp lock pins are engaged before mounting the retraction components.
Step 2: Install Primary Bars or Clamps
Attach the primary mounting clamps or 6-inch primary bars directly to the skull holder’s vertical upright posts. Tighten the securing knobs firmly to eliminate play.
Step 3: Connect Secondary Bars
Attach the 12-inch floating secondary bars to the primary mounts. Position the rails horizontally or in a slight arc around the craniotomy site. Keep line-of-sight lighting and microscope optics unobstructed.
Step 4: Install Articulating Arms
Slide the long retraction flex arms onto the secondary bar tracks. Loosen each arm’s main tension dial. Verify that all ball joints move freely through their full adjustment range.
Step 5: Mount Utility Accessories
The Greenberg retractor is a self-retaining system for hands-free exposure in cranial microsurgery. Attach the aluminum pattie tray to the secondary rail near the wound margin. Mount the 10-inch hand rest on the upper rail frame to support the surgeon’s forearms.
Step 6: How Do You Select the Correct Blade?
Choose a double-ended malleable tapered blade to suit the required working depth and tissue width. Shape the blade body by hand to match the patient’s anatomical contours.
Step 7: Connect the Blade
Slide the shaped blade’s flat shaft into the end clamp slot of an articulating flex arm. Tighten the blade attachment screw until secure.
Step 8: Position and Lock the Blade
Guide the blade tip into the surgical corridor and rest it gently against a protective saline-soaked neuro-pattie. Apply gentle retraction tension. Turn the flex arm dial to lock all joints.
Step 9: What Should the Final Safety Check Include?
Check every clamping block, rail link, and arm knob. Confirm that the entire frame is rigid. Ensure no metal components press against un-draped skin and that tissue retraction pressure is uniform and safe.
Assembly Sequence and Safety Checkpoints
Setup includes preparation stages and safety checkpoints. The table below summarizes the assembly sequence.
| Step | Action | Focus Area | Safety Checkpoint |
|---|---|---|---|
| 1 | Head Fixation | Rigid skull clamp setup | Verify clamp lock pins are engaged |
| 2 | Foundation Mount | Primary bar/clamp attachment | Confirm zero movement on mounting posts |
| 3 | Frame Construction | Secondary bar installation | Ensure clear line of sight for microscope |
| 4 | Arm Mounting | Retractor arm placement | Check full multi-axis movement of flex joints |
| 5 | Utility Setup | Hand rest & pattie tray mounting | Check stability under forearm weight |
| 6 | Blade Shaping | Contour malleable stainless blade | Avoid sharp bends or notch stress points |
| 7 | Tissue Engagement | Place blade over protective cottonoid | Confirm gentle, uniform retraction force |
| 8 | Pre-Op Inspection | Verify tightness across all lock dials | Ensure zero frame drift or patient skin contact |
How Does the Greenberg Retractor Work?
The system converts mechanical clamp tension into precise multi-axis positioning.
How Does the Frame Transfer Weight?
The system transfers all weight and retraction forces to the head holder by clamping directly to the skull fixation frame. This prevents pressure or movement on the patient’s scalp margins.
How Do the Ball Joints Lock?
Turning the central control dial tightens an internal cable and locks all arm joints simultaneously in their current positions. Each articulating arm contains ball-and-socket links threaded over an internal cable or tension rod.
Why Are the Stainless Steel Blades Malleable?
Soft-annealed stainless steel allows surgeons to shape the tapered blades by hand. The metal holds custom curves under mechanical tension without springing back or flexing.
Blade Types and Clinical Uses
The correct blade width helps distribute retraction forces safely and prevent localized tissue injury.
| Blade Level | Tip Width | Base Width | Primary Clinical Use |
|---|---|---|---|
| Level 1 | 0.25 in (6 mm) | 0.75 in (19 mm) | Broad cortical protection during large tumor resections |
| Level 2 | 0.15 in (4 mm) | 0.62 in (16 mm) | Lobar retraction & subtemporal exposure |
| Level 3 | 0.12 in (3 mm) | 0.50 in (12.5 mm) | Standard interhemispheric corridors & falx exposure |
| Level 4 | 0.09 in (2.4 mm) | 0.37 in (9 mm) | Narrow skull base pathways & cisternal approaches |
| Level 5 | 0.06 in (1.5 mm) | 0.25 in (6 mm) | Micro-vascular separation & cranial nerve isolation |
Which Neurosurgical Procedures Use These Systems?
These systems are used across a wide range of complex neurosurgical procedures.
| Surgical Procedure | Approach Technique | Retraction Target |
|---|---|---|
| Glioma / Meningioma Resection | Convexity / Subtemporal craniotomy | Surrounding cerebral cortex |
| Cerebral Aneurysm Clipping | Pterional / Keyhole approach | Frontal and temporal lobes |
| Microvascular Decompression (MVD) | Retrosigmoid craniectomy | Cerebellar hemisphere |
| Skull Base Lesion Excision | Transbasal / Suboccipital route | Osseous margins & dura |
| Intraventricular Tumor Removal | Transcallosal approach | Interhemispheric fissure & falx |
Which Surgical Specialties Use These Systems?
These systems are widely used in specialized surgical disciplines beyond general cranial surgery.
- Neuro-Oncology: Maintains continuous retraction during deep-seated brain tumor resections.
- Cerebrovascular Surgery: Gently holds back brain tissue during aneurysm clipping and AVM repairs.
- Skull Base Surgery: Secures narrow access corridors around cranial nerves and the brainstem.
- Pediatric Neurosurgery: Uses ultra-thin tapered blades for small surgical sites and fragile brain tissue.
- Spinal Microsurgery: Assists with posterior cervical and thoracic intradural tumor removals.
What Are the Advantages of the Greenberg Retractor?
Self-retaining systems provide significant clinical, operational, and mechanical benefits.
Precision and Stability
Self-retaining support removes hand tremors and maintains continuous, non-shifting tissue traction throughout long surgical procedures.
How Do Tapered Blades Reduce Tissue Trauma?
Tapered malleable blades spread retraction forces across a broader surface area. This reduces the risk of focal edema or contusions.
How Does the Layout Support Surgeon Ergonomics?
Elevated support rails and integrated handrests support the surgeon’s forearms. This reduces physical fatigue during delicate micro-dissections.
Flexible Modular Construction
Components can be added, angled, or removed to fit different craniotomy shapes and patient positions.
Reusable Materials and Durability
All components withstand frequent decontamination and high-temperature steam sterilization. They are built from Premium Grade AISI 304/316 Stainless Steel (Non-Magnetic).
How Should Components Be Cleaned and Sterilized?
Proper reprocessing maintains mechanical precision and extends instrument working life.
- Pre-Rinsing: Rinse components with neutral-pH enzymatic solutions immediately after use to prevent blood and tissue from drying inside ball joints.
- Ultrasonic Washing: Use ultrasonic baths to clean blood and debris from internal joint threads and friction cables.
- Manual Inspection: Inspect arm tension dials, clamp screws, and primary bar channels to ensure smooth thread movement before packaging.
- Steam Autoclaving: Autoclave components in perforated trays using pre-vacuum steam cycles (134C /273F for 4 to 5 minutes) to ensure complete sterilization.
Which Greenberg Retractor Configuration Should You Choose?
Choose a configuration based on your surgical department’s clinical case mix and operational setup.
- Choose the Standard System: For major medical centers performing complex, bilateral skull base resections requiring full 360-degree frame positioning.
- Choose the Complete Kit: For general neurosurgical operating rooms needing an all-in-one, organized set in a dedicated sterilizing tray for standard craniotomies.
- Choose the Simplicity System: For ambulatory surgery centers, keyhole surgery suites, or training facilities prioritizing fast assembly, low clutter, and a small spatial footprint.
Browse our full collection of Neurosurgery Retractors to compare setup options for your department and evaluate system compatibility.
Matching the System to Your Surgical Workflow
Greenberg Retractor systems provide structural stability, precision, and delicate tissue handling for modern cranial microsurgery. They transfer weight to rigid skull clamps, use hand-shaped malleable blades, and offer integrated forearm support. These features help neurosurgical teams maintain clear, hands-free exposure during long procedures. Choose the standard system, complete kit, or compact Simplicity system according to your facility’s case mix, surgical approaches, and operating room workflow.
Explore Factory-Direct Neurosurgical Systems
Equip your operating rooms with precision-manufactured, factory-direct systems built for reliable clinical performance.
- Explore technical specifications for the Greenberg Retractor
- Evaluate the complete Greenberg Retractor Kit
- Review the quick-setup Greenberg Simplicity Retractor
A Greenberg Retractor is a self-retaining neurosurgical system for brain tissue retraction during cranial and microsurgical procedures. For custom OEM manufacturing, bulk hospital pricing, or international distributor terms, select Request a Quote or Contact Us to speak directly with our engineering team.
Clinical notice: This guide is for surgical teams and hospital buyers. Always follow the manufacturer's instructions for use (IFU) and your hospital's sterilization rules before clinical use.
Frequently Asked Questions
What is a Greenberg Retractor?
A Greenberg Retractor is a self-retaining neurosurgical retractor system used to hold back brain tissue safely during cranial and microsurgical procedures. The system is anchored by a table-and-clamp setup and provides hands-free tissue retraction during these procedures.
What is the Greenberg Retractor used for?
The Greenberg Retractor provides hands-free tissue retraction during brain tumor resections, cerebral aneurysm clipping, microvascular decompressions, skull base surgeries, and spinal microsurgeries. Its self-retaining design holds tissue back during these procedures without requiring hand-held retraction.
How does the Greenberg Retractor attach to the surgical setup?
The Greenberg Retractor attaches directly to the upright posts of a rigid skull fixation frame through its primary bars or clamps. A Mayfield® head holder is one such frame. This attachment creates a stable platform above the surgical site.
What are the main components of a Greenberg Retractor system?
A Greenberg Retractor system includes primary mounting bars, floating secondary bars, articulating retractor flex arms, and double-ended malleable tapered blades. The system also includes a hand rest, a pattie tray, and a sterilizing case as key components.
What is the difference between the Greenberg Retractor and the Greenberg Simplicity Retractor?
The Greenberg Retractor uses a dual-bar framework, while the Greenberg Simplicity Retractor uses a single primary and secondary bar setup. The standard system provides 360-degree coverage around large surgical sites. The Simplicity system supports fast assembly and a smaller footprint during focused craniotomies.
How do malleable tapered blades help protect brain tissue?
Greenberg Retractor malleable tapered blades spread retraction force over a wider surface area near the cortex while maintaining a narrow profile deep in the wound. Made from soft-annealed stainless steel, the blades can be shaped by hand to conform to brain contours.
Is the Greenberg Retractor reusable and autoclavable?
The Greenberg Retractor is reusable, and all components are fully autoclavable. All components are forged from Premium Grade AISI 304/316 Stainless Steel (Non-Magnetic). Standard pre-vacuum steam sterilization cycles use 134C /273F for 4 to 5 minutes.
Which blade width should be used for deep microsurgery?
Greenberg Retractor narrow tapered blades with tips such as 0.06 in to 0.09 in / 1.5 mm to 2.4 mm are ideal for deep microsurgery. These narrow tapered blades suit deep cisternal, vascular, and skull base corridors.
What is the purpose of the hand rest in the Greenberg system?
The Greenberg system hand rest supports the surgeon’s forearms to reduce muscle fatigue and tremors during fine micro-dissections. It mounts onto the upper section of the framework, providing forearm support while the surgeon performs these fine dissection tasks.
What is the function of the pattie tray?
The Greenberg Retractor pattie tray provides an accessible, sterile surface for saline-soaked cottonoids and micro-instruments. It clamps onto the secondary bar frame near the wound, keeping the tray and the items it holds accessible at the surgical site.
Can hospitals order OEM custom versions of these retractor systems?
Greenberg Retractor systems can be ordered in custom OEM versions from Retractor Maker. As a direct manufacturer, Retractor Maker produces custom configurations, custom blade profiles, and private-label OEM sets for hospital networks and medical device distributors.
How long does it take to assemble a Greenberg Retractor system?
Greenberg Retractor assembly takes under 3 minutes for compact single-bar setups and 6 to 10 minutes for full-frame double-bar configurations. The assembly time depends on the configuration, with compact single-bar setups taking less time than full-frame double-bar setups.
How do the Greenberg Retractor arms lock into position?
The Greenberg Retractor arms lock when a central control dial tightens an internal cable, securing all ball-and-socket joints simultaneously. Loosening the dial allows the multi-jointed arms to move vertically, horizontally, and at angles. Surgeons can then change blade depth and angle without moving the main mounting posts.
Who developed the Greenberg Retractor?
Dr. I. Edward Greenberg developed the Greenberg Retractor to address mechanical challenges associated with hand-held brain retraction. His design introduced a multi-level floating bar frame, articulating friction arms with single-dial locking mechanisms, and double-ended malleable blades that taper to micro-widths.
How is the Greenberg Retractor positioned to preserve microscope visibility?
The Greenberg Retractor uses elevated support bars to keep mechanical joint structures away from the surgeon’s primary line of sight. During assembly, floating secondary bars are positioned horizontally or in a slight arc around the craniotomy site. This positioning keeps the bars from blocking lighting or microscope optics.
About the author
Saad Shahid · Sales & Marketing Manager
Saad Shahid is the Sales & Marketing Manager and founder of Retractor Maker, started in 2023 in Sialkot, Pakistan. He also works with his father at Hospitech Traders, the family surgical instrument business founded in 1989.
Related Blogs & Guide
Related Retractors
Greenberg Retractor Kit
$3,499Free Shipping
Tubular Retractor System
$2,199Free Shipping
Budde Halo Retractor
$2,499Free Shipping
Adjustable Mayfield Adaptor
$1,199Free Shipping
Leyla Retractor
From $1,199Free Shipping
Greenberg Simplicity Retractor
$2,499Free Shipping
Need Surgical Retractors or Components?
Tell us what you need, including the product, configuration, quantity and destination country. Retractor Maker can provide availability, specifications and pricing.
Request a Quote
