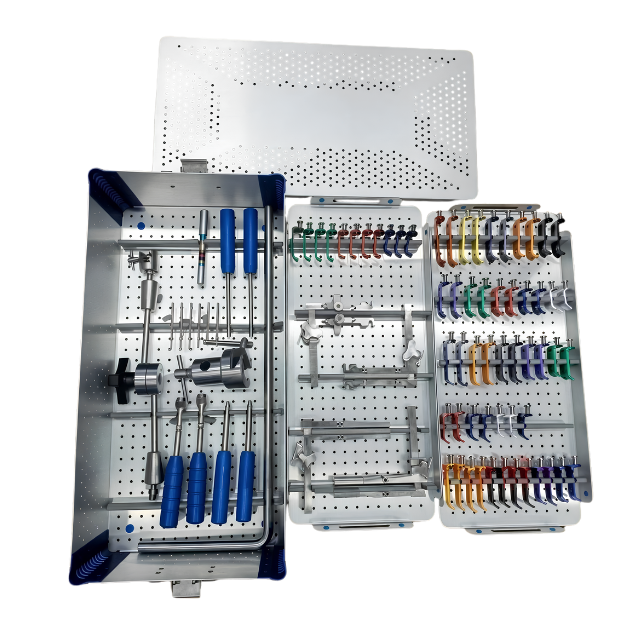

Tedan Phantom CS-1600 Cervical Retractor Set
SKU:RM-TPCS1600-SET-1
$2,899USD
Free Shipping
The Tedan Phantom CS-1600 Cervical Retractor Set is a premier anterior cervical spine system engineered for ACDF and corpectomy procedures. Handcrafted from German stainless steel with 42 color-coded retractor blades (blunt, micro-blunt, toothed, and paddle), side-loading twist handles, distraction screw drivers, and precision drill guides ($2,899), it provides uncompromised microscopic cervical exposure.
Product Description
The Tedan Phantom CS-1600 Cervical Retractor Set is an internationally recognized comprehensive anterior cervical surgical retractor and distractor system engineered specifically to provide safe, non-traumatic soft-tissue displacement and intervertebral body distraction during anterior cervical discectomy and fusion (ACDF). Designed with quick-connect side-loading handles and low-profile blade geometries, this system allows spine surgeons to retract the trachea, esophagus, and carotid sheath cleanly, maintaining an unhindered visual corridor down to the disc space without obstructing fluoroscopic imaging or microscopic sightlines.
Built to clinical framework specifications, this Tedan Phantom CS-1600 Cervical Retractor Set complete system ($2,899) features an extensive instrumentation suite organized in a heavy-duty custom-fitted sterilization container. Handcrafted from German stainless steel, the modular blade inventory includes 10 pairs (20 total) of blunt-edge retractor blades from 30 mm to 75 mm, 6 pairs (12 total) of micro blunt-edge blades from 35 mm to 60 mm, 8 long-toothed blades from 30 mm to 65 mm, and 1 pair of multi-directional paddle blades. The set includes 2 ergonomic twist-release side-loading handles, a color-coded depth gauge, a manual twist drill starter bit, dual and single drill guides, replacement drill bits, 2 distraction screw drivers, a precision caliper measuring tool, and a 6 mm × 10 mm guarded bone tamp.
Forged with an anti-glare satin matte finish and color-coded anodized blade sizing markers, Retractor Maker manufactures the Tedan Phantom CS-1600 Cervical Retractor Set to withstand repetitive hospital autoclave cycles, providing neurosurgical suites, orthopedic spine centers, and surgical trauma theaters worldwide with exceptional structural precision, corrosion resistance, and complete autoclave durability.
Product Specifications
| Specification | Details |
|---|---|
| Intended Use | Specifically designed for soft-tissue retraction and vertebral body distraction during anterior cervical spine surgery (ACDF). |
| Primary Material | German Stainless Steel |
| Configuration | Complete modular anterior cervical retractor and Caspar-style distraction set |
| Retractor Blade Inventory | 42 total blades: 20 blunt-edge (30–75 mm), 12 micro-blunt (35–60 mm), 8 long-toothed (30–65 mm), 2 paddle blades |
| Handle Assembly | 2 ergonomic side-loading retractor handles featuring twist-release blade engagement |
| Distraction Instrumentation | Twist drill bit with starter handle, single and dual drill guides, and 2 distraction screw drivers |
| Measurement & Seating Tools | Color-coded depth gauge, precision gap caliper gauge, and 6 mm × 10 mm bone tamp with guard |
| Sterility | Supplied Non-Sterile (Fully Autoclavable) |
| Packaging | Heavy-Duty Custom-Fitted Organizational Sterilization Container Tray |
| Manufacturer | Retractor Maker |
| Product Condition | Brand New |
| Minimum Order Quantity (MOQ) | 1 Set |
Component List
| Quantity | Component | Dimensions / Description |
|---|---|---|
| 10 Pairs (20 Total Blades) | Blunt-Edge Retractor Blades | Ranging from 30 mm to 75 mm in lengths (5 mm increments) |
| 6 Pairs (12 Total Blades) | Micro Blunt-Edge Retractor Blades | Ranging from 35 mm to 60 mm in lengths (5 mm increments) |
| 8 Blades | Long-Toothed Retractor Blades | Ranging from 30 mm to 65 mm in lengths (5 mm increments) |
| 1 Pair (2 Total Blades) | Paddle Blades | Standard multi-directional distractor frame compatibility |
| 2 Handles | Side-Loading Retractor Handles | Ergonomic, twist-release design for rapid modular blade changes |
| 1 Gauge | Color-Coded Depth Gauge | Calibrated for rapid soft tissue depth measurement |
| 1 Assembly | Twist Drill with Driver Handle | Manual starter bit assembly for distraction screws |
| 1 Guide | Dual Drill Guide | For securing exact parallel spacing between vertebral distraction screws |
| 1 Guide | Single Drill Guide | For independent or modular distraction screw placement |
| 1 Bit | Twist Drill Bit | Dedicated replacement bit for distraction screw pilot drilling |
| 2 Drivers | Distraction Screw Drivers | Secure-grip manual installation drivers for Caspar-style pins |
| 1 Tool | Caliper Measuring Tool | Precision gauge for confirming disc height and implant gap tolerances |
| 1 Tool | Bone Tamp with Guard | Dual-ended surgical seat tool with 6 mm × 10 mm profile |
| 1 Container | Sterilization Box | Heavy-duty, custom-fitted organizational surgical tray |
Minimum order quantity:1 Set.
Frequently Asked Questions
How does the side-loading handle mechanism of the Tedan Phantom CS-1600 Cervical Retractor Set improve operative workflow during ACDF?
The Tedan Phantom CS-1600 Cervical Retractor Set features ergonomic twist-release side-loading handles that allow the surgical team to exchange or reposition color-coded blades in seconds without disrupting the retractor frame position or disturbing surrounding soft tissues.
What is the Tedan Phantom CS-1600 Cervical Retractor Set used for?
The Tedan Phantom CS-1600 Cervical Retractor Set is used in anterior cervical spine surgery to retract the esophagus, trachea, and carotid sheath medially and laterally while applying calibrated intervertebral distraction.
Which surgical procedures is it for?
It is indicated for single-level and multi-level anterior cervical discectomy and fusion (ACDF), cervical artificial disc replacement (ADR), anterior cervical corpectomy, and cervical trauma stabilization.
What material and finish are used?
The instrument system is handcrafted from premium German surgical stainless steel with color-coded anodized blade sizing markers and an anti-glare satin matte finish.
Is the Tedan Phantom CS-1600 Cervical Retractor Set reusable and autoclavable?
Yes. The entire Tedan Phantom CS-1600 Cervical Retractor Set is 100% reusable and fully validated for pre-vacuum steam autoclave cycles (134°C / 273°F). Handles and screw driver shafts should be inspected and lubricated regularly.
Can components and blades be ordered separately?
Yes. Individual replacement blades (blunt, micro-blunt, or toothed), distraction screw drivers, drill guides, and bone tamps can be ordered separately as open-stock inventory.
Can custom modifications or private-label markings be ordered?
Yes. Retractor Maker provides custom blade depths, radiolucent titanium blade options, and laser marking for hospital asset tracking upon request.
What is the standard lead time and delivery timeframe for orders?
In-stock instruments take 5 business days to inspect and dispatch, followed by 7 business days for worldwide express delivery. Back-order units take 17 to 20 business days to manufacture and 9 business days for delivery.
