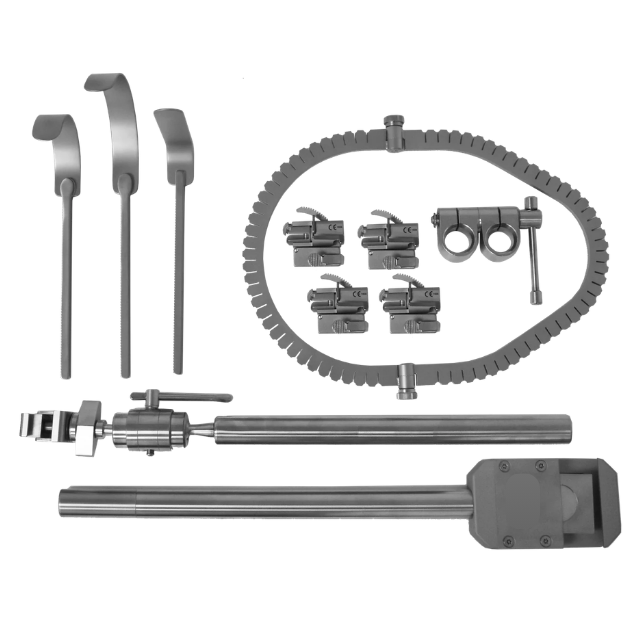

Bookwalter GYN Magrina Pelvic Surgery Retractor System
SKU:RM-BGMPRS-1
$1,499USD
Free Shipping
The Bookwalter GYN Magrina Pelvic Surgery Retractor System is a table-mounted self-retaining retractor designed to provide stable, hands-free exposure during gynecological, vaginal and pelvic surgical procedures. Its configuration combines a notched perineal ring, multi-jointed support components and rotating tilt ratchets to position selected blades around the operative field.
Product Description
The Bookwalter GYN Magrina Pelvic Surgery Retractor System is a table-mounted self-retaining retractor designed to provide stable, hands-free exposure during gynecological, vaginal and pelvic surgical procedures. Its modular framework combines a field post, horizontal flex bar, post coupler, notched perineal ring and rotating tilt ratchet mechanisms to support selected blades around the operative field.
The system is configured with a 9½″ × 14½″ notched perineal ring and four rotating tilt ratchets with ring retention. The included vaginal lateral, Deaver and vaginal posterior blades provide a range of blade configurations for surgical exposure requirements.
The complete system is supplied in a dedicated protective sterilization box for organized storage and processing. The Bookwalter GYN Magrina Pelvic Surgery Retractor System is supplied non-sterile and is designed to be reusable and autoclavable. Cleaning and sterilization should be performed according to the healthcare facility's validated procedures before use.
Retractor Maker supplies the Bookwalter GYN Magrina Pelvic Surgery Retractor System directly to hospitals, distributors and other B2B customers.
Product Specifications
| Specification | Details |
|---|---|
| Intended Use | Designed to provide stable, hands-free exposure during gynecological, vaginal, and pelvic surgical procedures using a table-mounted self-retaining retractor system with rotating tilt ratchets. |
| Primary Material | Non-magnetic, surgical-grade stainless steel |
| Configuration | Complete GYN Magrina Pelvic Surgery Retractor System |
| Mounting System | Field post with horizontal flex bar, post coupler, and notched perineal ring |
| Ring Configuration | Perineal ring with notches |
| Sterility | Supplied non-sterile (fully autoclavable) |
| Packaging | Supplied in a sterilization box |
| Manufacturer | Retractor Maker |
| Product Condition | Brand new |
| Minimum Order Quantity (MOQ) | 1 Full Set |
Component List
| Quantity | Component | Dimensions / Description |
|---|---|---|
| 1 | Field Post | 12″ (30 cm) |
| 1 | Post Coupler | Standard |
| 1 | Horizontal Flex Bar | Standard Multi-Jointed |
| 1 | Perineal Ring with Notches | 9½″ × 14½″ (24.1 × 36.8 cm) |
| 4 | Rotating Tilt Ratchet | Standard with Ring Retention |
| 2 | Vaginal Lateral Blades | 1″ × 3″ (2.5 × 7.6 cm) |
| 1 | Deaver Blade | 1″ × 3½″ (2.5 × 8.9 cm) |
| 1 | Deaver Blade | 1″ × 5″ (2.5 × 12.7 cm) |
| 1 | Vaginal Posterior Blade | 1″ × 4½″ (2.5 × 11.4 cm) |
| 1 | Sterilization Box | Protective Case |
Minimum order quantity:1 Full Set.
Frequently Asked Questions
What is included in the complete Bookwalter GYN Magrina Pelvic Surgery Retractor System?
The complete system includes the pelvic ring frame and table post assembly, self-retaining ratchet mechanisms, a comprehensive set of Magrina, vaginal and St. Mark’s blade varieties, and a dedicated sterilization container for organized processing.
What is the Bookwalter GYN Magrina Pelvic Surgery Retractor System used for?
The Bookwalter GYN Magrina Pelvic Surgery Retractor System is a table-mounted, self-retaining surgical retractor engineered to provide steady, hands-free exposure of deep operative fields. By anchoring directly to the operating table rails and locking blades under mechanical counter-traction, it eliminates assistant muscle fatigue and prevents tissue slip during long procedures.
Which surgical procedures is it for?
This system is indicated for gynecological oncology and deep pelvic procedures, including radical hysterectomy, pelvic lymphadenectomy and pelvic exenteration.
What material and finish are used?
Every component is manufactured from non-magnetic, surgical-grade stainless steel. All surfaces are treated with a non-reflective satin finish to suppress glare under intense operating room lighting.
Is it reusable and autoclavable?
Yes. The entire Bookwalter GYN Magrina Pelvic Surgery Retractor System is 100% reusable and fully validated for standard steam autoclave sterilization cycles (pre-vacuum steam at 134°C / 273°F). All mechanical clamps, ratchets and joint connections should be loosened or disassembled prior to cleaning and autoclaving.
Can components and blades be ordered separately?
Yes. Hospitals, clinics and distributors can purchase individual replacement parts — including specific blade depths, ratchet mechanisms, frame rings, post couplers and storage cases — as open-stock catalog items without needing to buy a complete system.
Can custom blade dimensions or private-label markings be ordered?
Yes. Because Retractor Maker is a direct manufacturer, we provide custom blade modifications (such as extended depths or specialty curves), bespoke frame sizing, and custom laser etching for hospital asset tracking or OEM branding.
What is the standard lead time and delivery timeframe for orders?
For in-stock instruments, orders take 5 business days to process and inspect, followed by 7 business days for worldwide delivery. For back-order or custom-manufactured systems, production takes 17 to 20 business days, followed by 9 business days for delivery. Full tracking details are supplied upon dispatch.
